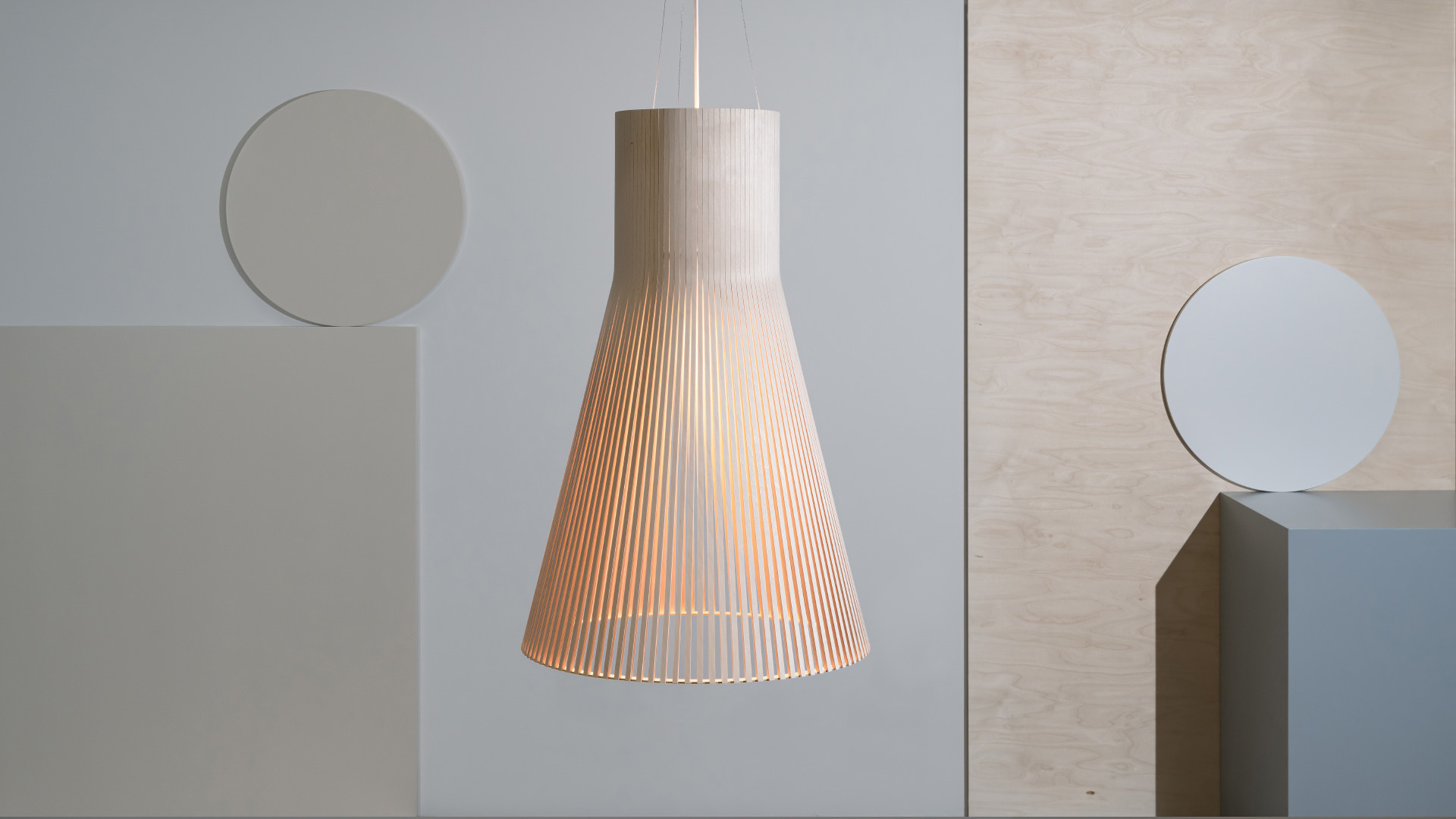

Magnum 4202 pendant lamp:
Monumental yet cosy

Magnum 4202 was originally designed for public spaces. Also great in homes with high ceilings.

Colour:

Get it here!

Magnum 4202 pendant lamp

Magnum 4202 pendant lamp

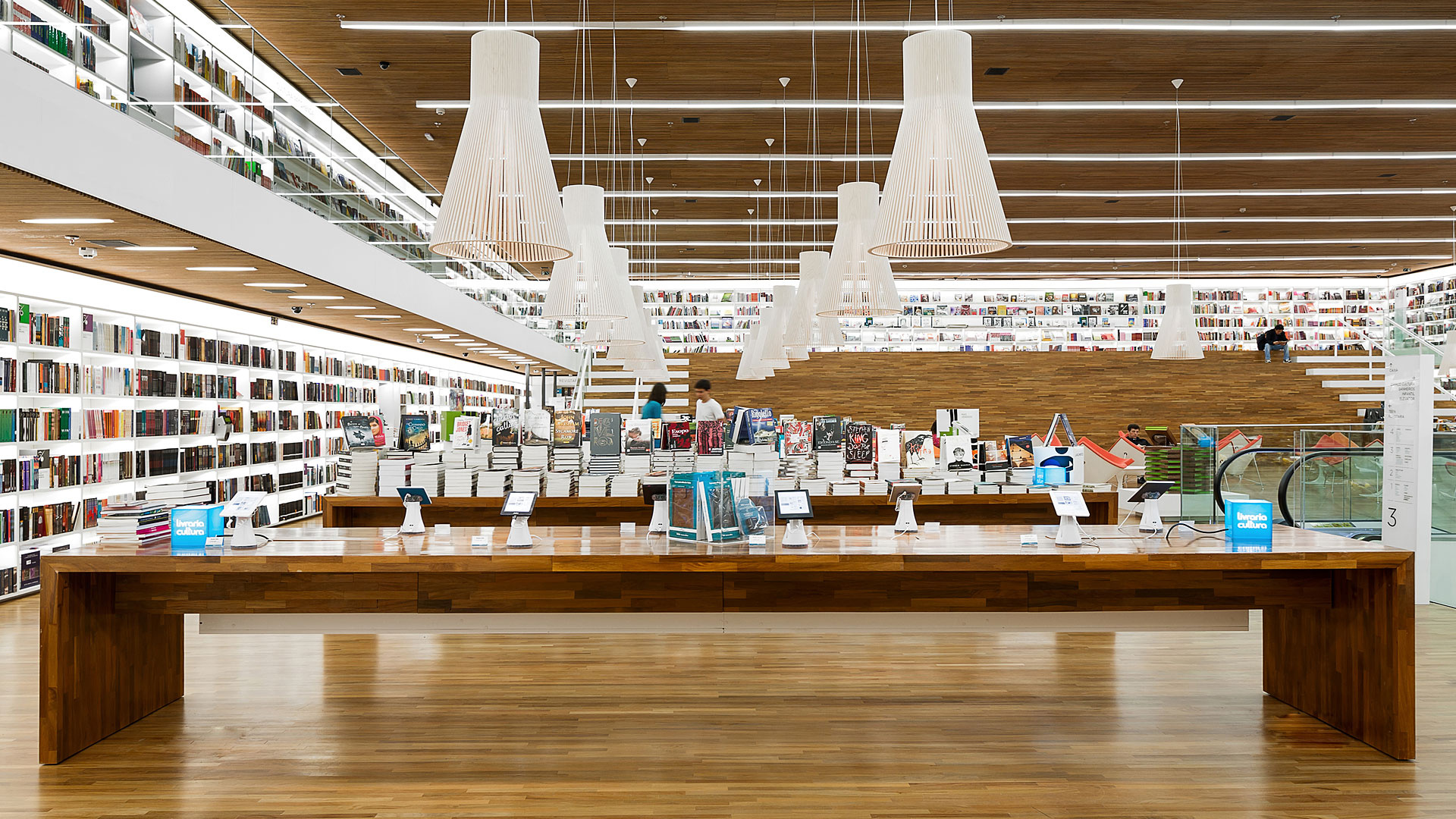

Magnum 4202. Livraria Cultura, São Paulo, Brazil. Project by studiomk27. Photo by Fernando Guerra

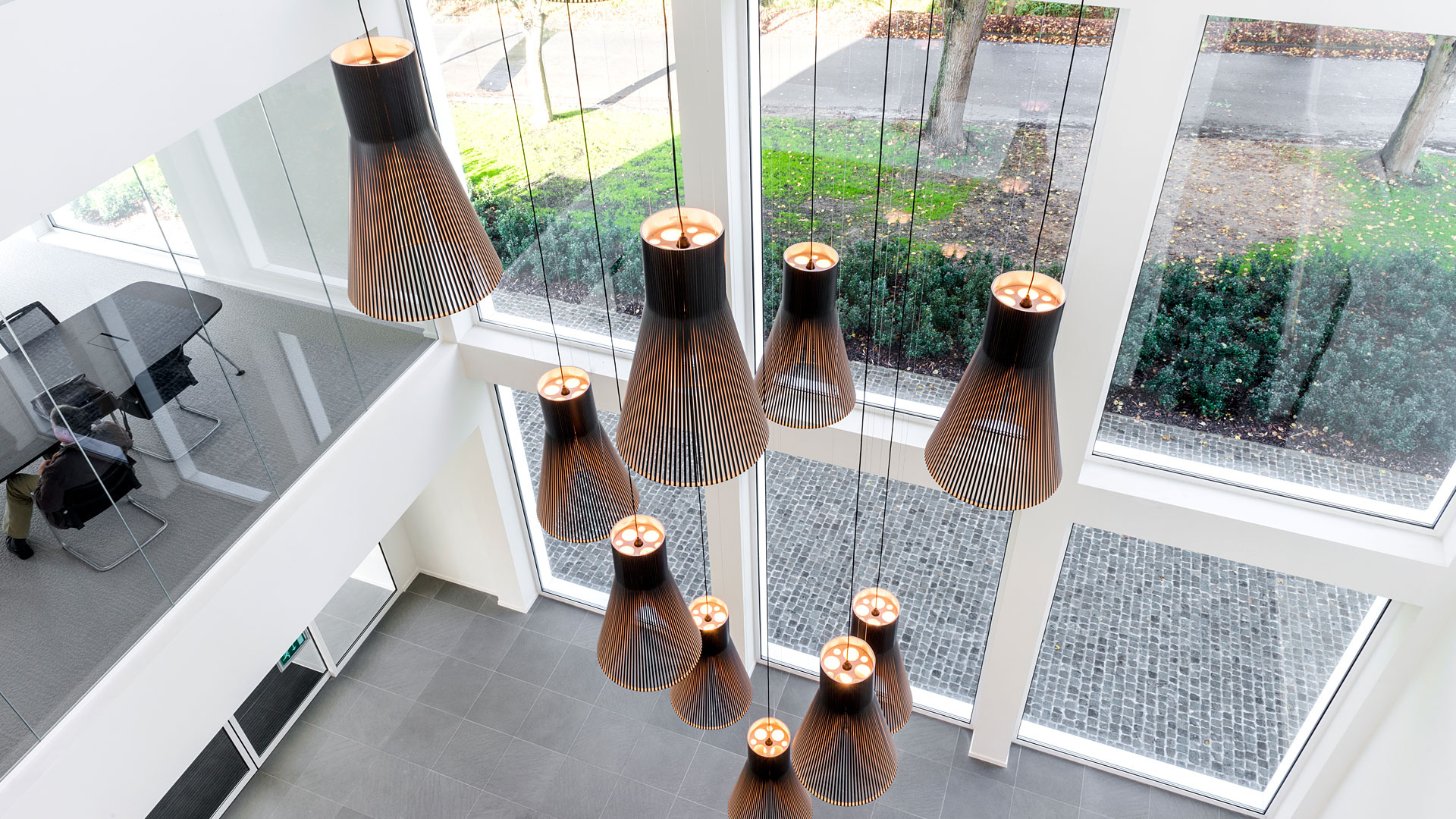

Magnum 4202. VPK Packaging, New headquarters, Aalst, Belgium. Architecture and interior design by De Cort & Dervichian. Photo by De Cort & Dervichian

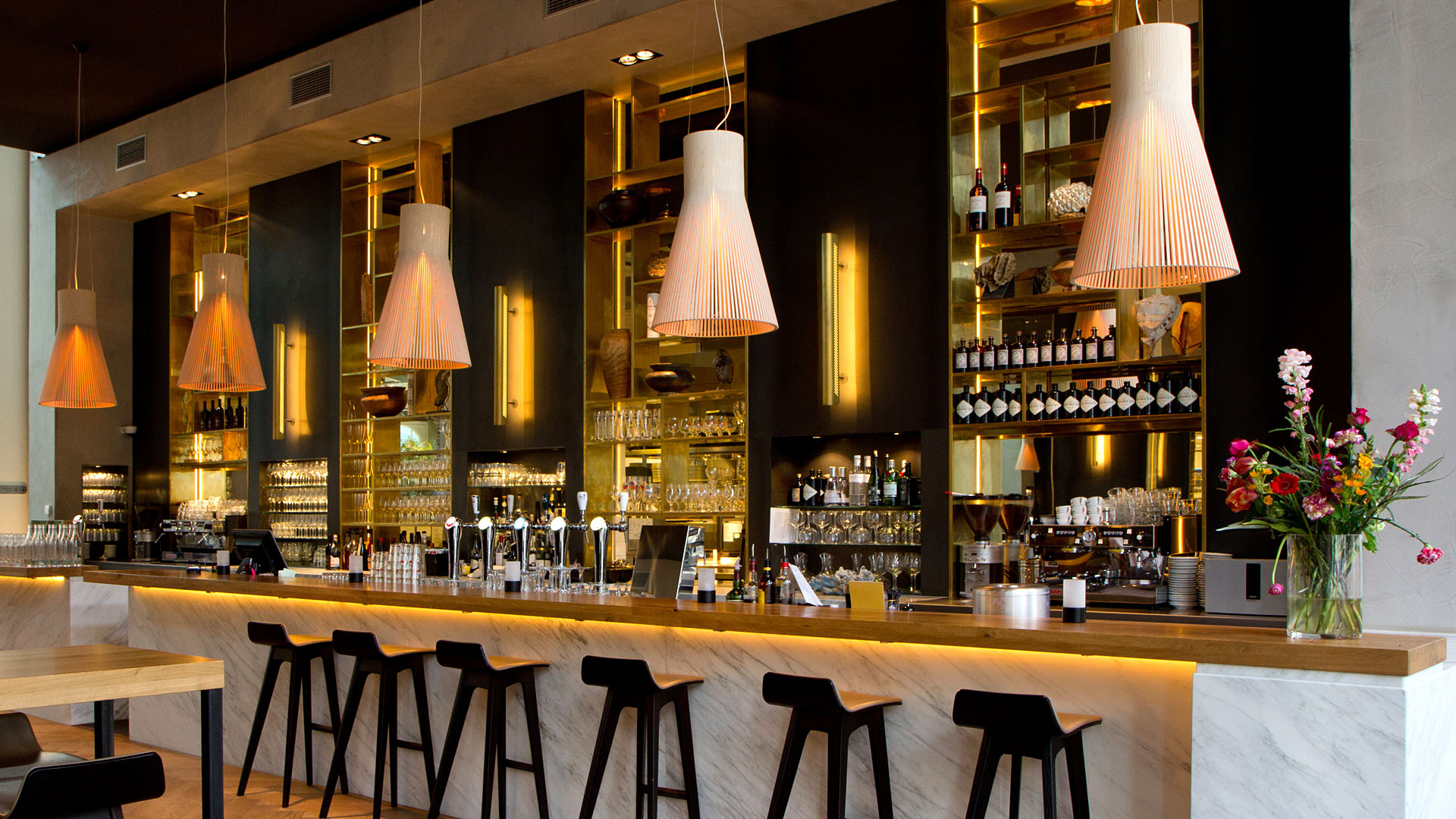

Magnum 4202. Cafe & Restaurant De Plantage, Amsterdam, The Netherlands. Architecture by Studio Linse. Photo by Ellen Swaan

More images of the Magnum 4202 pendant lamp here

Magnum 4202 pendant lamp

Handmade of PEFC-certified form pressed birch in Finland by highly skilled craftsmen.

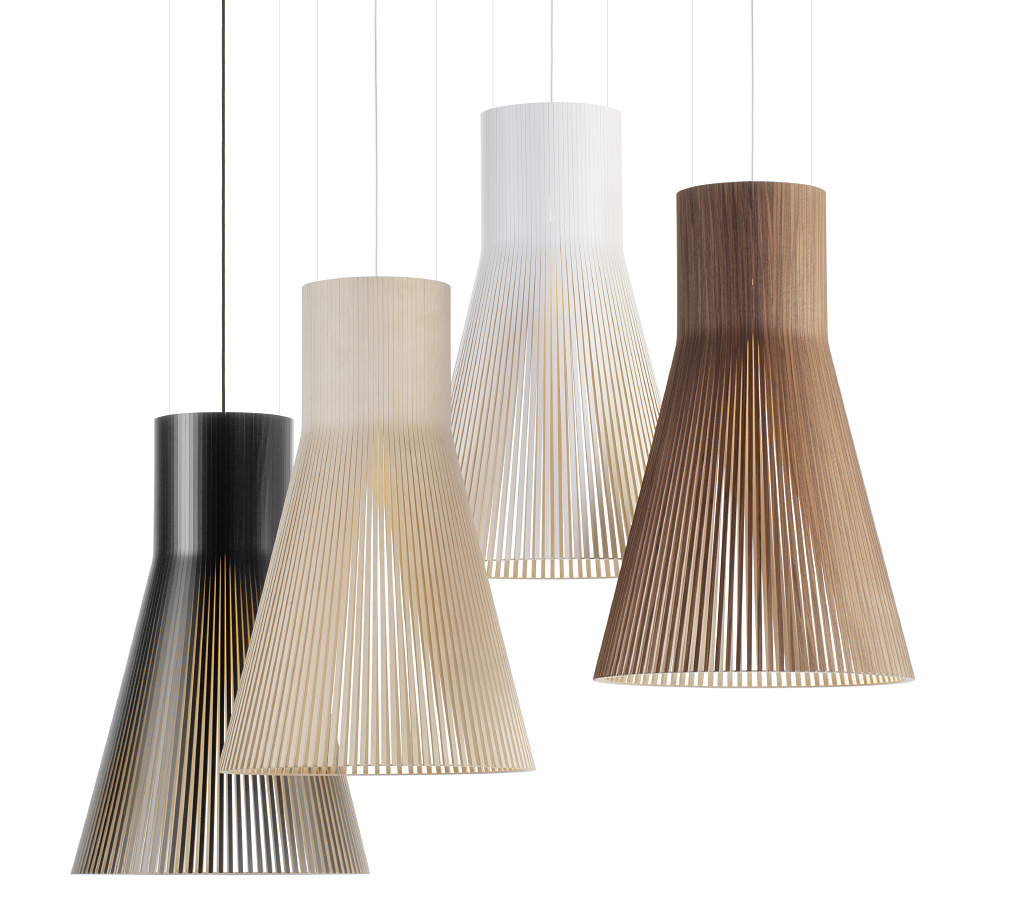

Finishing options

Shade	Cable	Ceiling cup

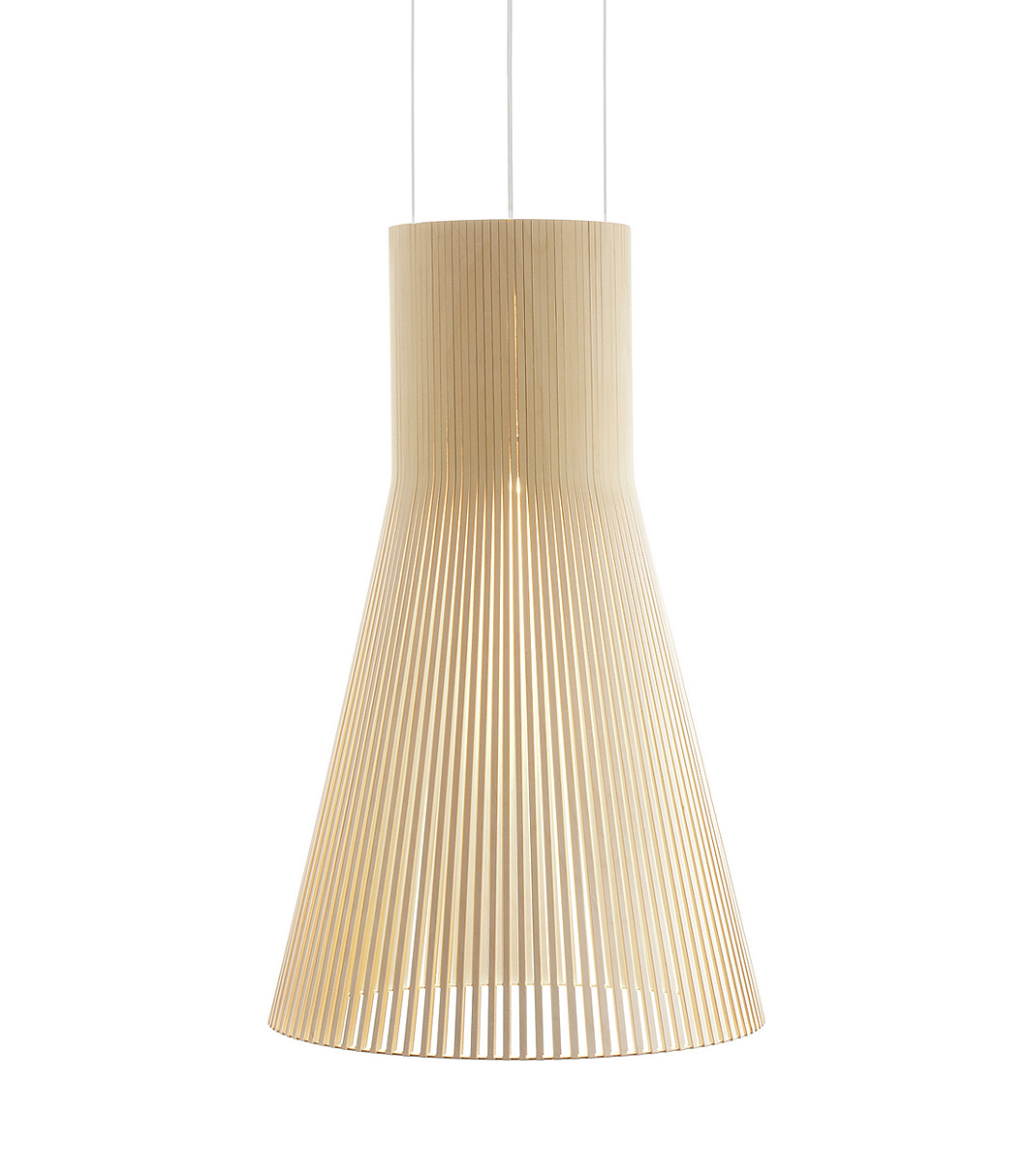

Natural birch	White	White

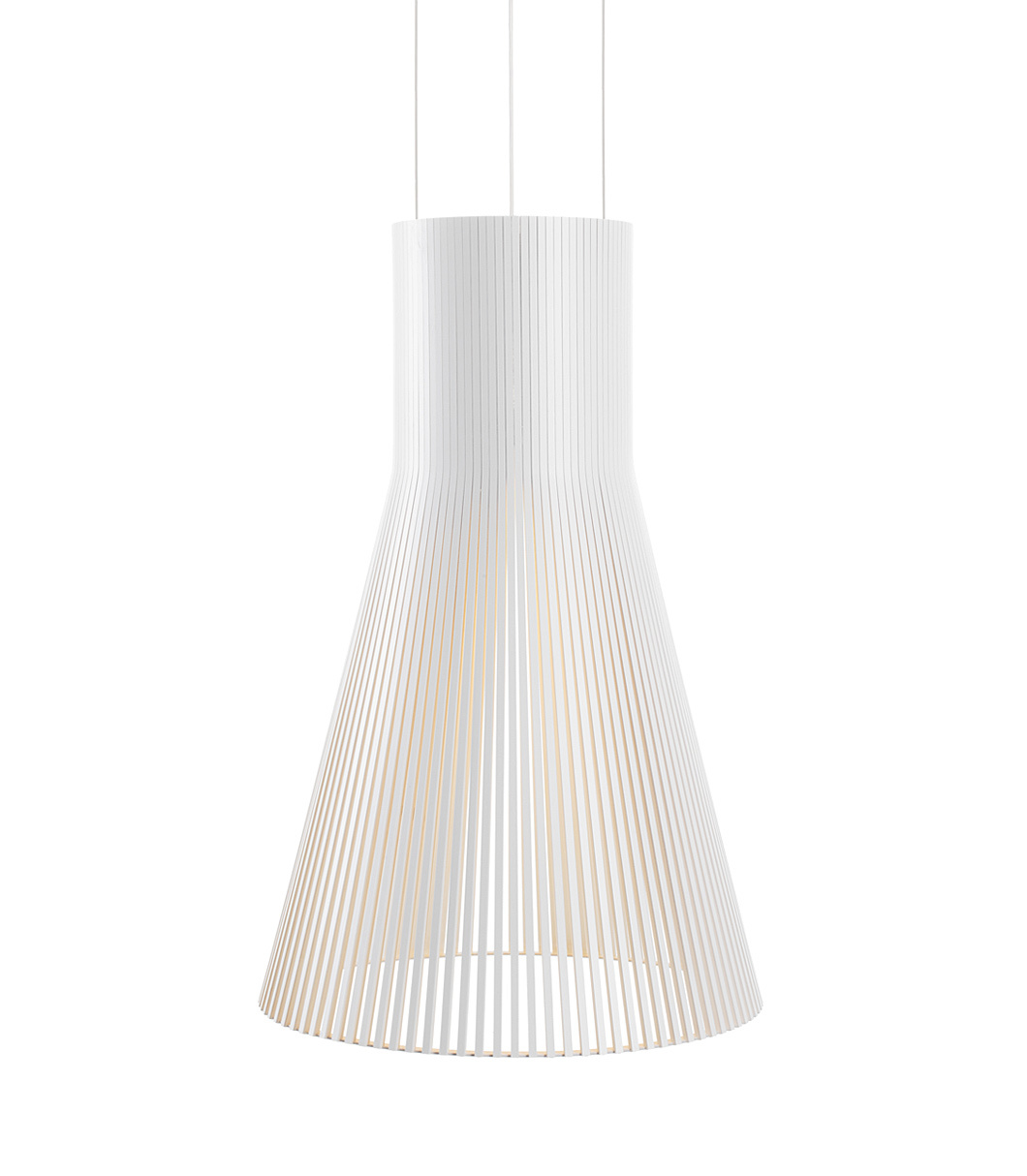

White laminated	White	White

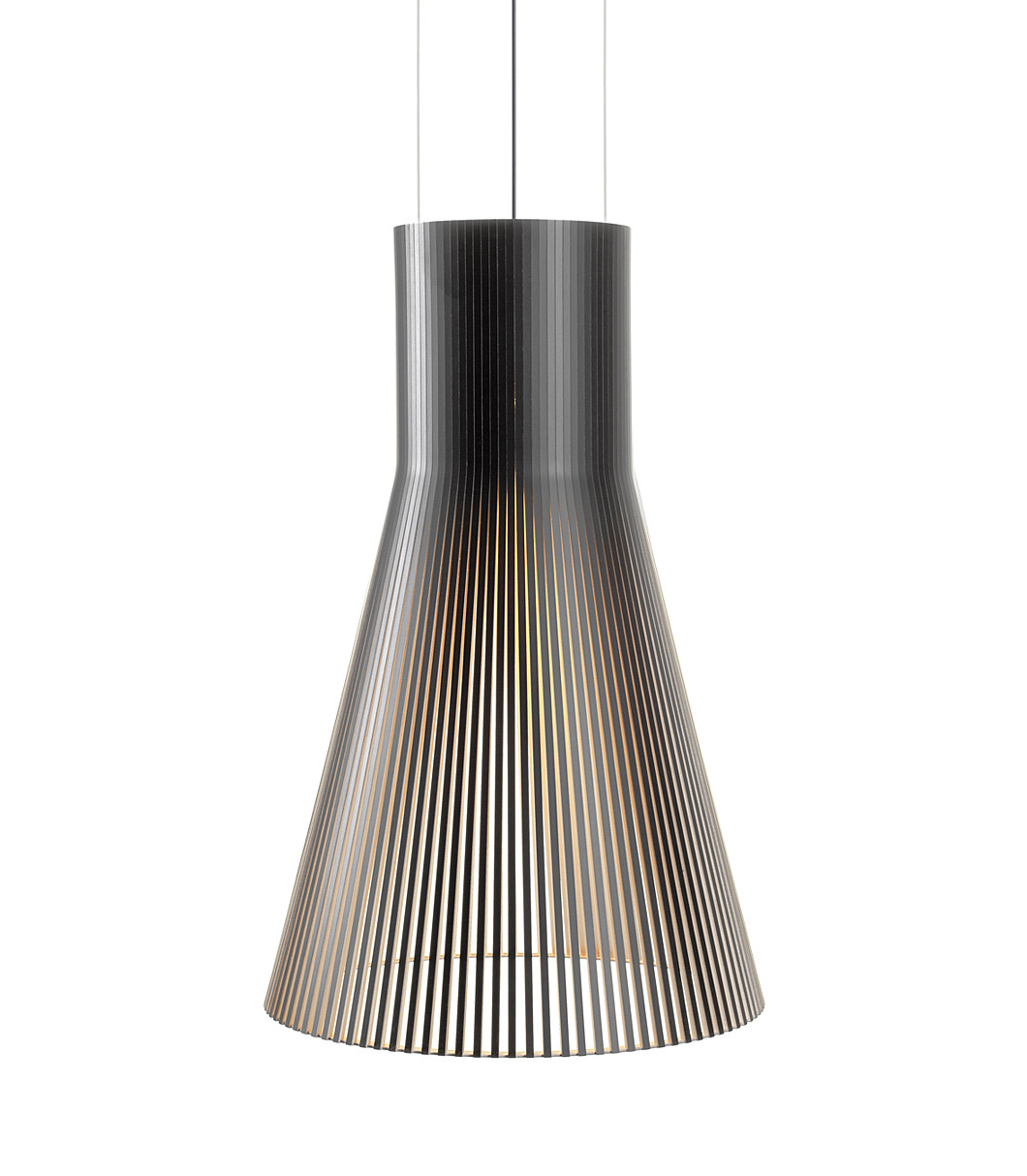

Black laminated	Black	Black

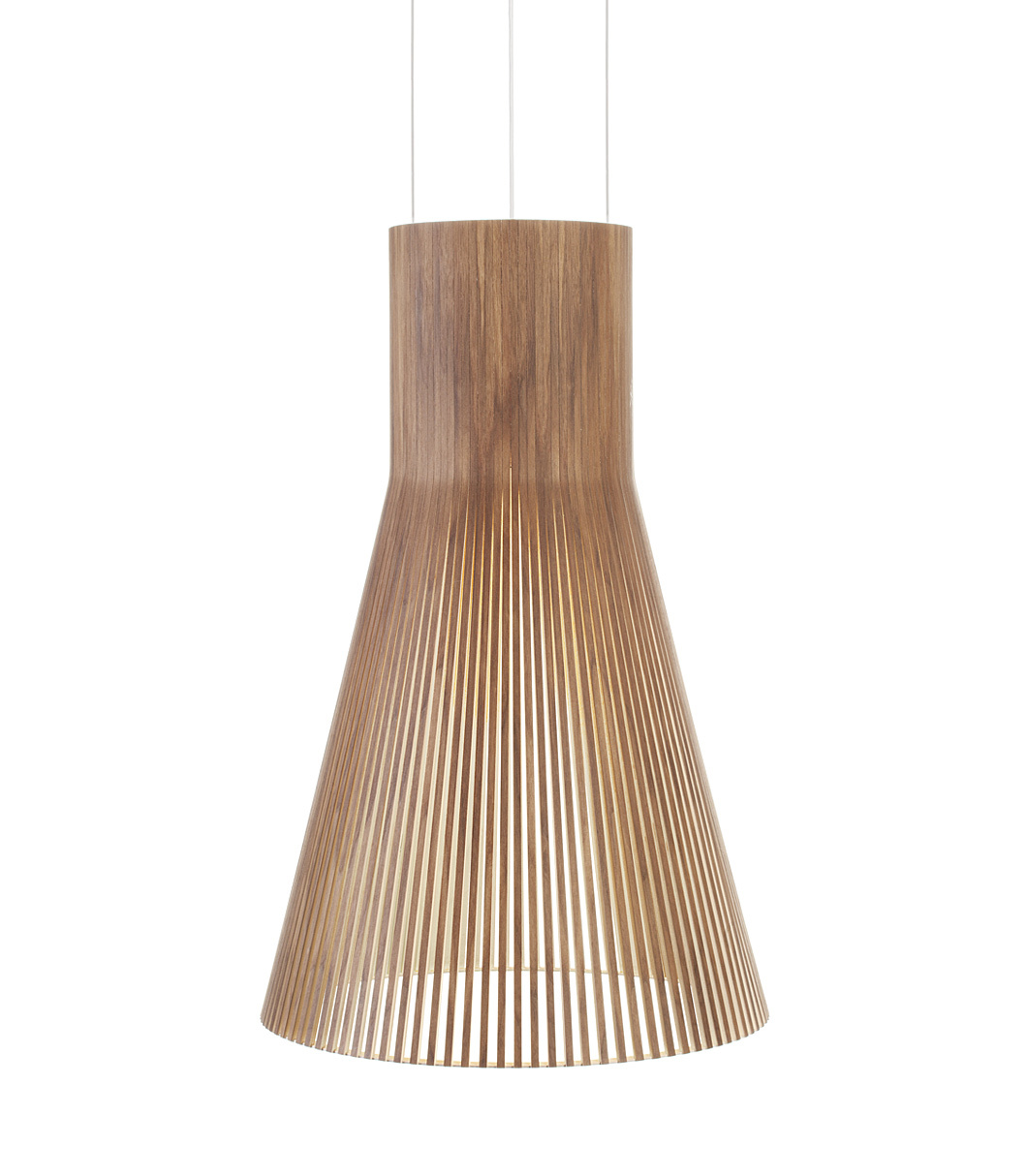

Walnut veneer	White	White

Product details

Material	Form pressed birch slats

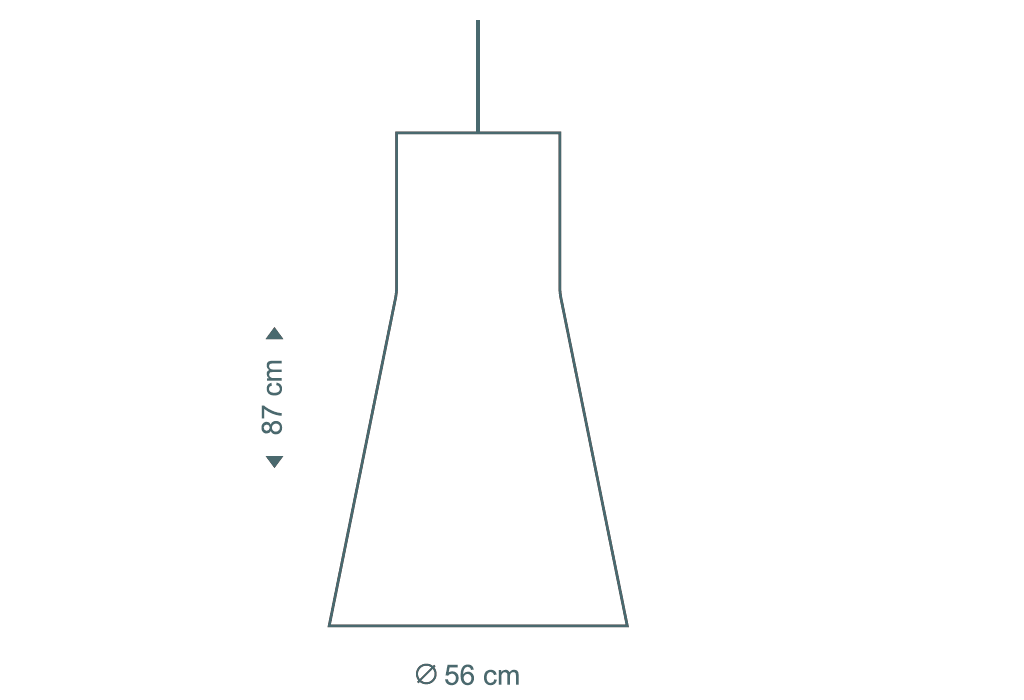

Dimensions	Height 87 cm Diameter Ø 56 cm Weight 4,2 kg Package 58 × 58 × 93 cm, 8,8 kg
Voltage	220-240VAC 50Hz
Light source	E27 base, LED max 20 W. Comes with a LED bulb (Airam LED Superlux, E27, 20 W, 2452 lumen, 2700 K, warm white, non dimmable, may vary). The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating. This product is supplied with an example bulb of energy efficiency class E.
Dimming	Details
DALI	Attachable to DALI systems with a separate DALI-compatible trailing edge (phase cut off) type dimmer. Due to great variation in DALI systems, Secto Design does not supply DALI-dimmers. Please contact your local electrician.
Cable	200 cm, textile cable, ceiling plug/connector, ceiling cup, 3 steel wires
Classification	Ingress Protection IP20, IEC Protection Class II, CE marking
Installation	Separate instructions on the website.
Maintenance	Wipe dust regularly. To remove fresh stains wipe with a slightly damp cloth.

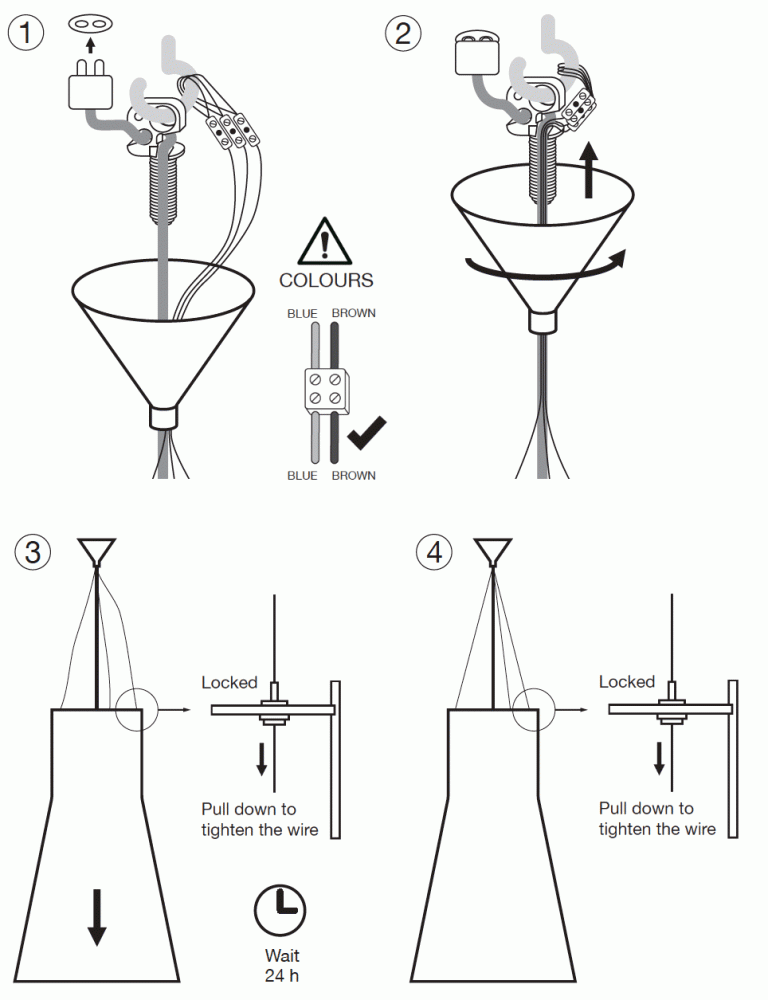

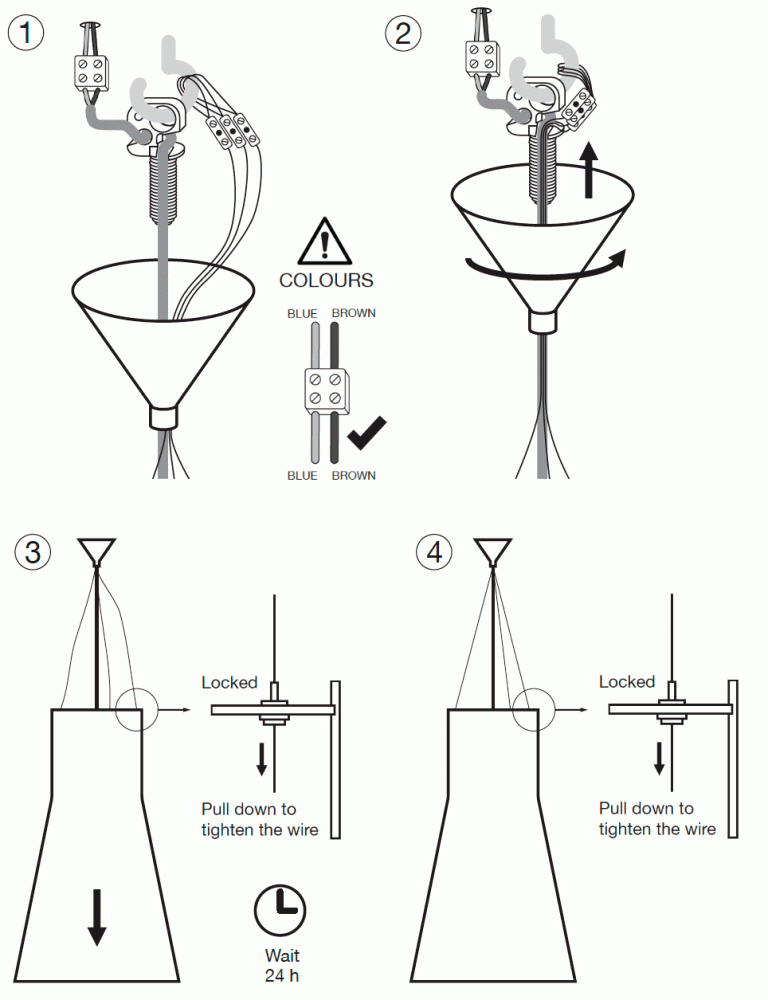

Installation instructions

Step 1	Install the power cord and support wires as illustrated. NB. The power connector may vary according to the local standard or regulations. Consult an authorized electrician if necessary.
Step 2	Insert the wires into the cord slot. Tighten the cup to the screw according to the separate manual.
Step 3	Loosen all three steel wires and let the whole weight of the lampshade rest on the power cord only. Leave for 24 hours to stabilize the height.
Step 4	Tighten the support wires by pulling them. You may cut the extra length.

Steel wire details

The Magnum pendant includes three steel wires for balancing the shade.

The wires are attached from the end loops (pic. 1) to the ceiling hook (not incl.) inside the ceiling cup. The other end of the wires are attached to the shade. If the hanging height of the Magnum is altered, the length of the steel wires can be changed with the adjustable screws (pic. 2) by pushing the tip at the top of the screws down and then sliding the wire into the hole.

Please find enclosed detailed images of the loops and the adjustable screws.

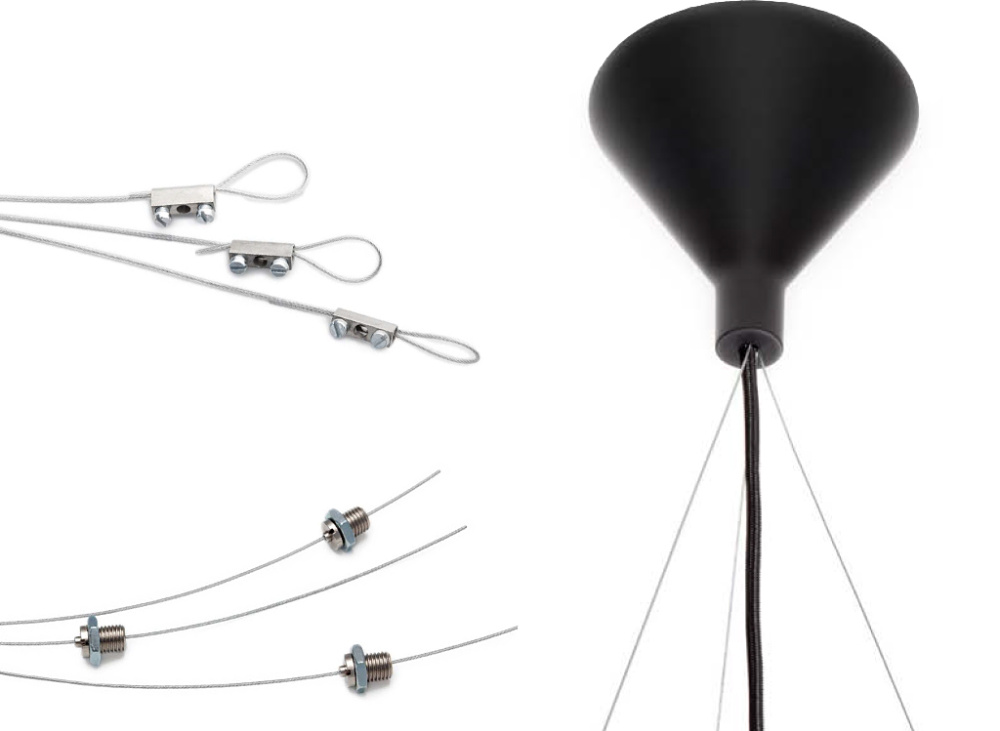

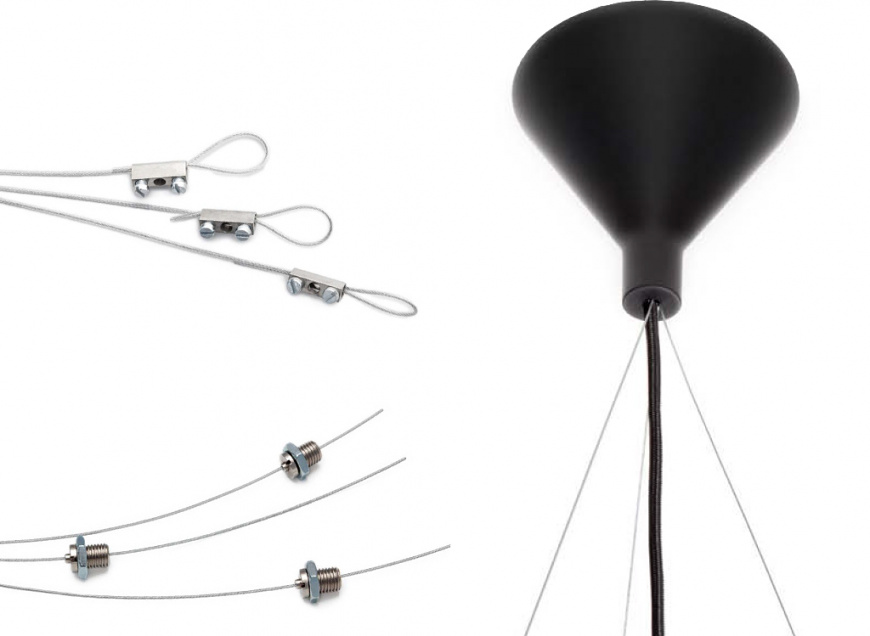

The end loops of the Magnum steel wires (above). The adjustable screws of the Magnum steel wires (below)

Standard ceiling cup

Height	11,2 cm / 12 cm (with ring)
Outer upper	Ø 12,2 cm / 13,1 cm (with ring)
Inner upper	Ø 11,8 cm / 12,2 cm (with ring)
Weight	58 g / 74 g (with ring)
Color	White or black matt soft lacquer depending on the colour of the pendant
Information	The standard ceiling cup includes an additional ring, which enables leading the cable along the ceiling into the ceiling cup. The additional ring can also be used to cover a larger ceiling socket. Any extra length of the cable can be swirled into theceiling cup when altering the hanging height of the pendant.

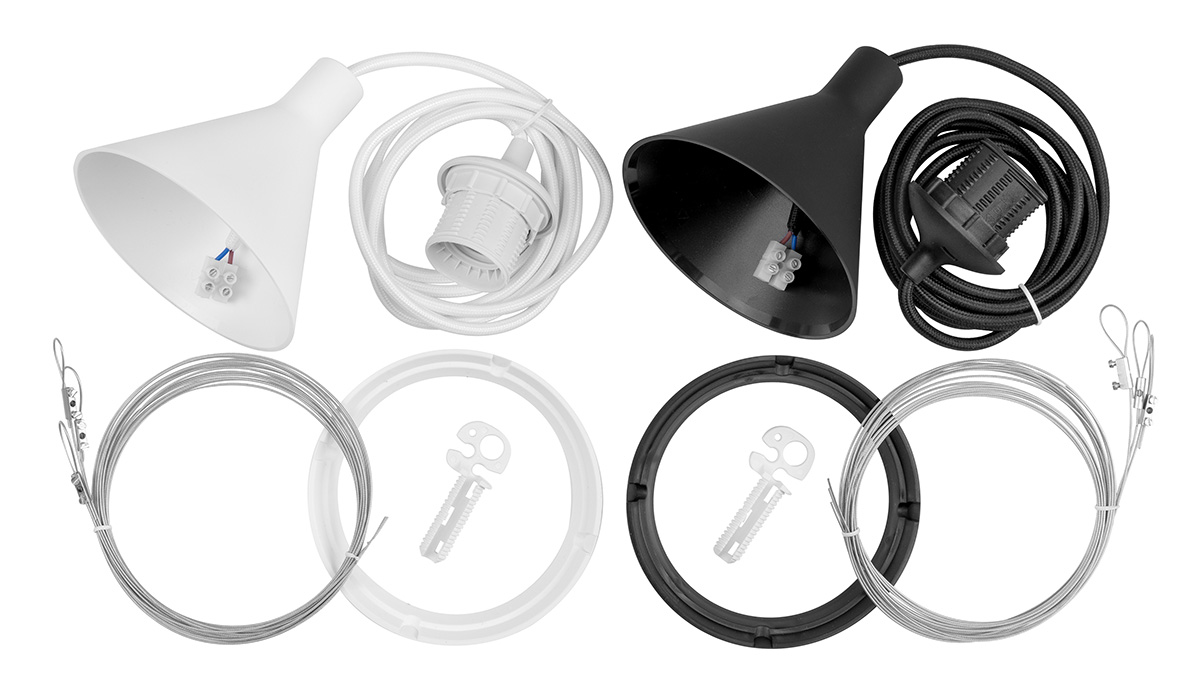

Standard cable set

Weight	192 g (incl. all parts)
Cable lenght	150 cm (longer cables available upon request at additional cost)
Colour	White or black matt soft lacquer depending on the colour of the pendant
Lamp base	E27
Wattage	LED max 20 W
Information	The standard cable set includes the lamp base, a textile cable, a ceiling cup, a suspension screw and an additional ring. A ceiling plug (pictured) is included in the deliveries to Finland and Sweden; deliveries to other countries include a terminal block (not pictured).
