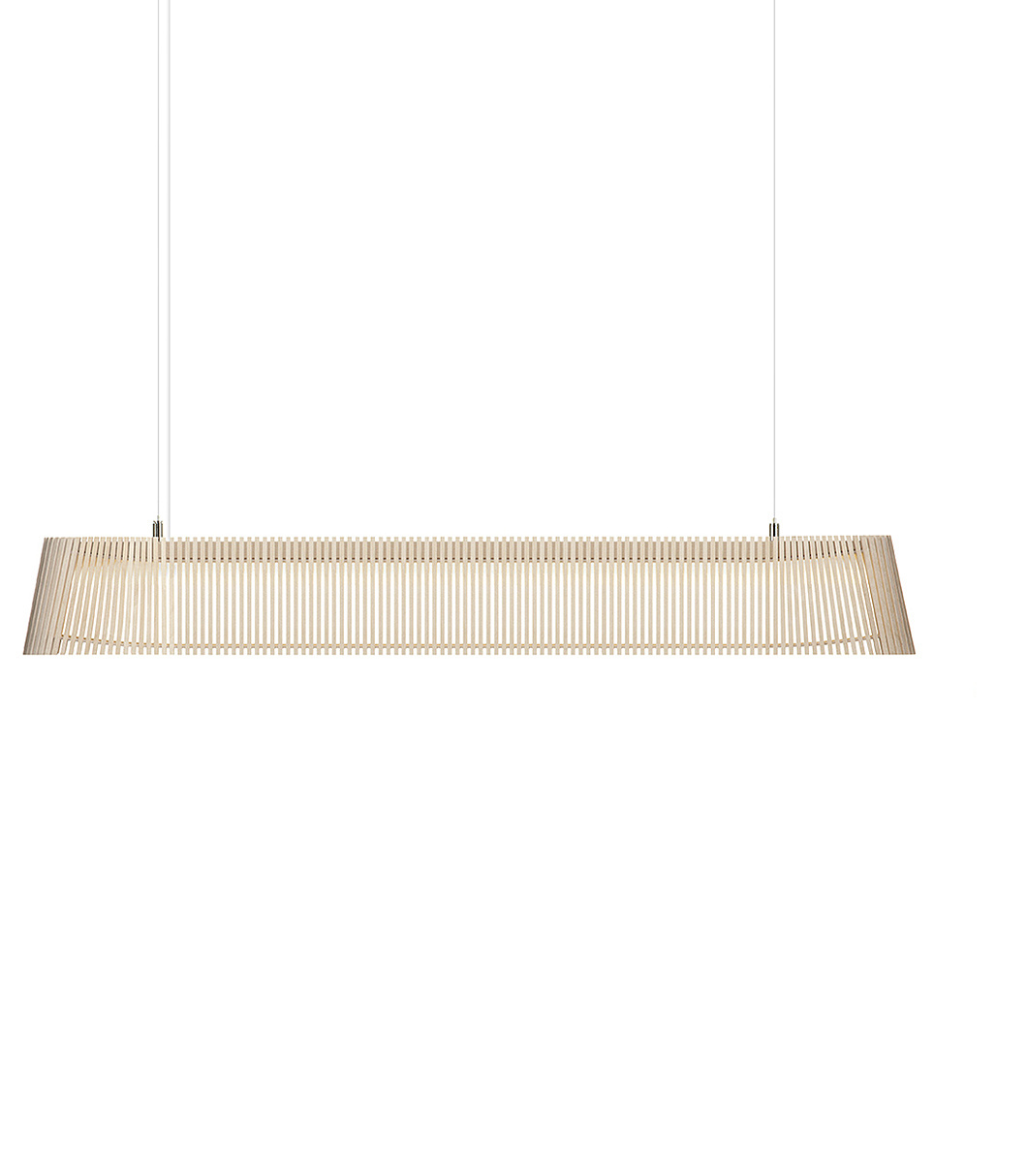

Owalo 7000 pendant lamp color birch

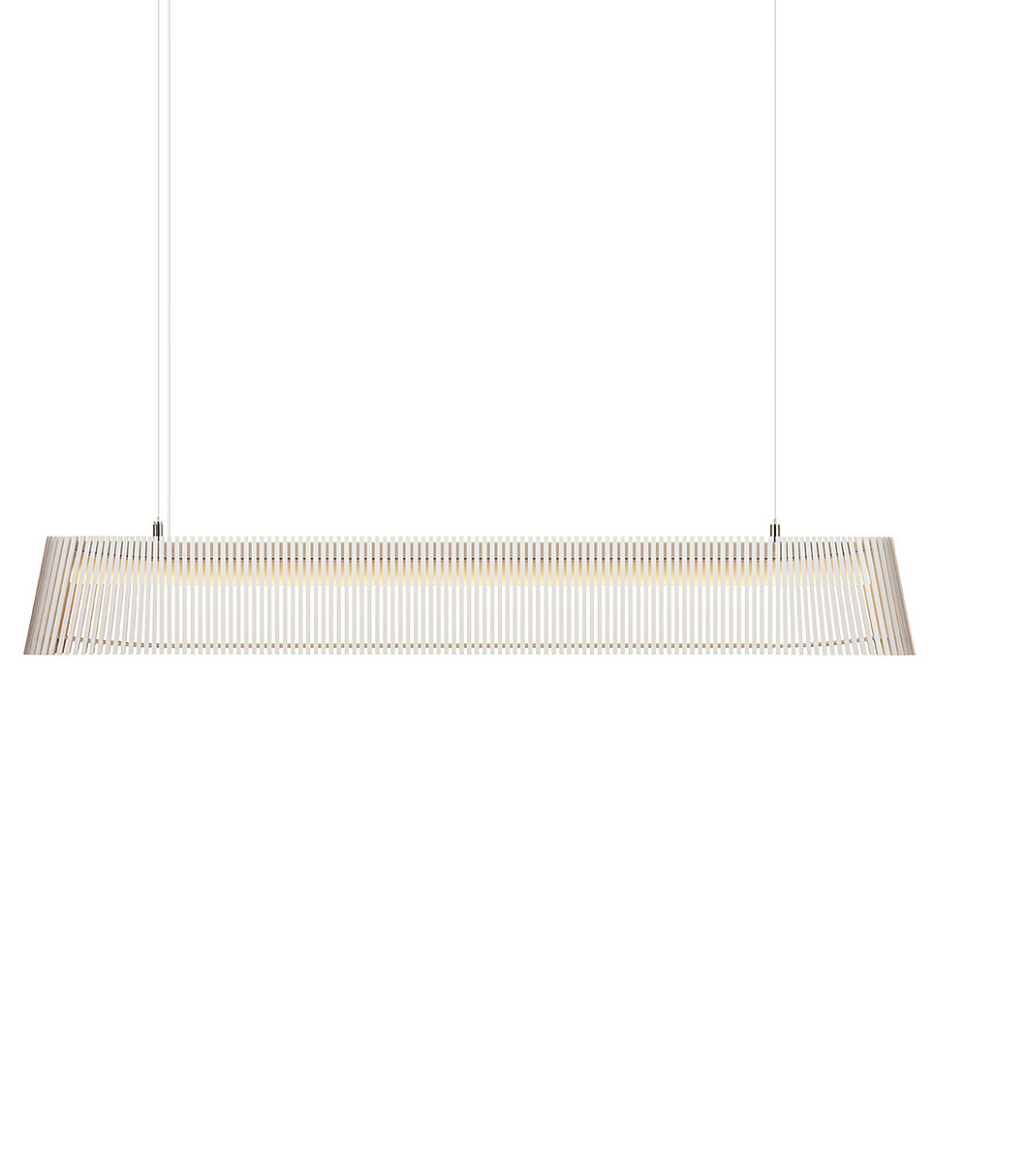

Owalo 7000 pendant lamp color white

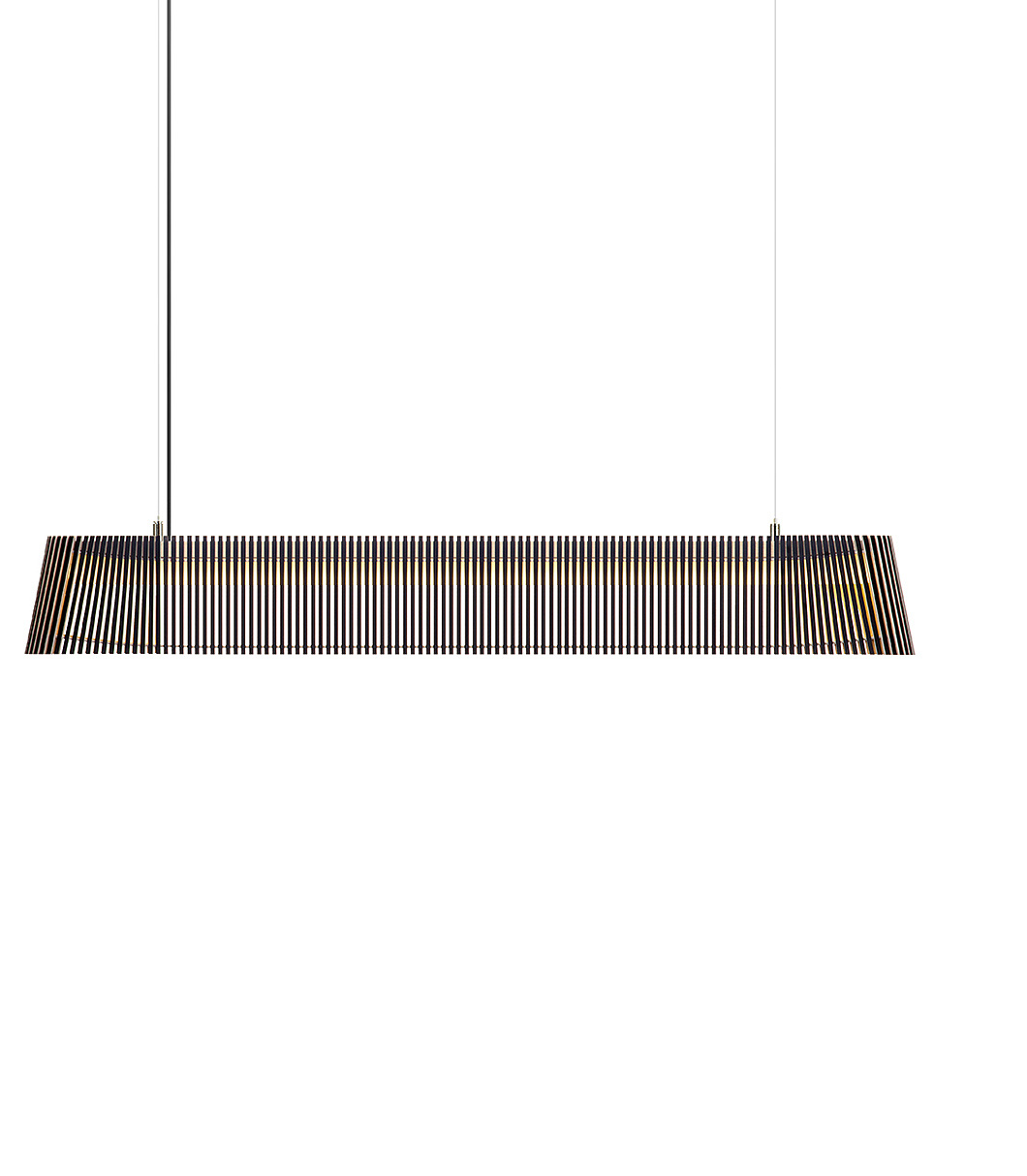

Owalo 7000 pendant lamp color black

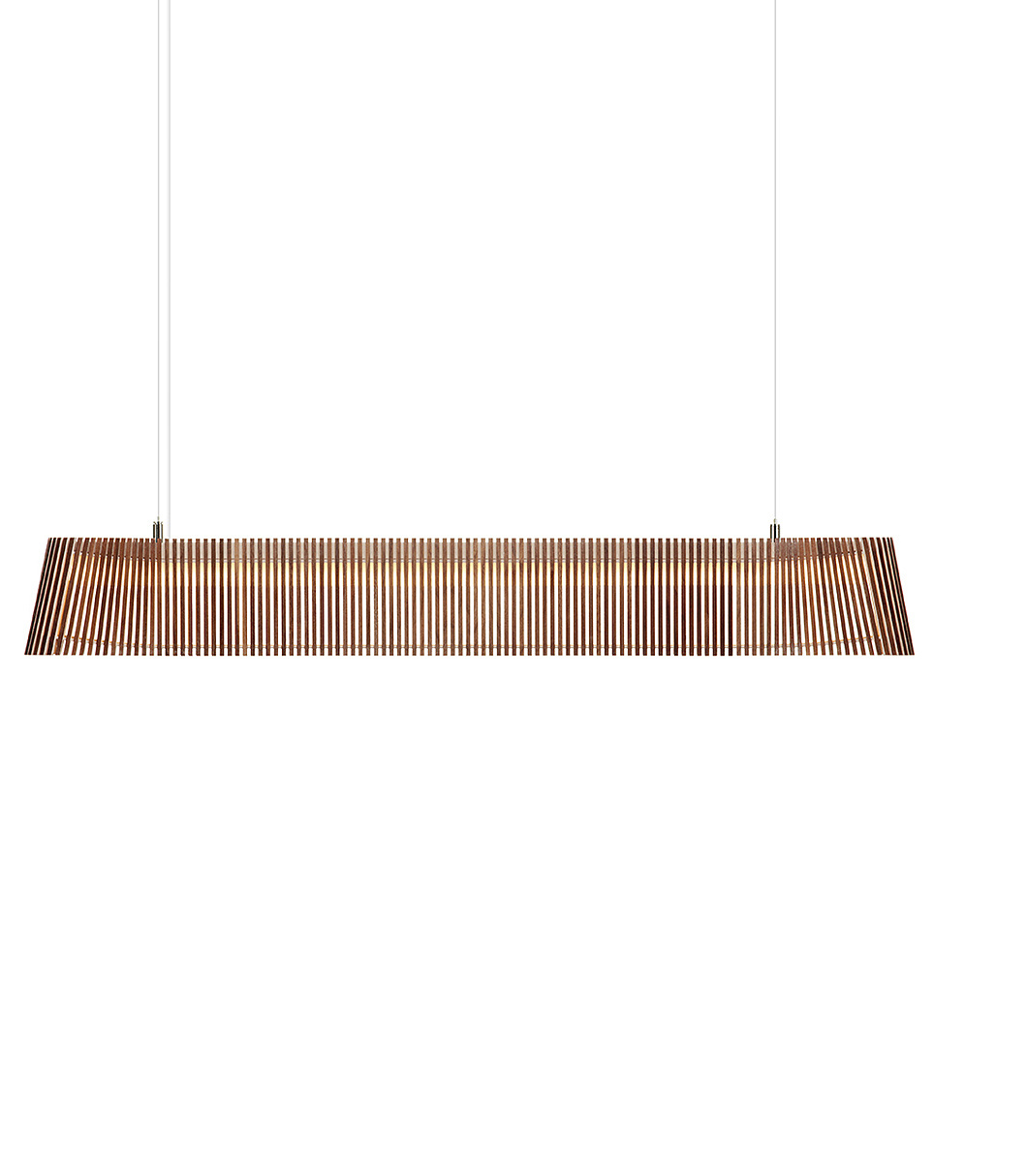

Owalo 7000 pendant lamp color walnut

Owalo 7000: Tranquil balance

A horizontal pendant that lights up both meeting rooms and dining areas. Comes with the latest in LED technology.


Colour:

Get it here!

Owalo 7000. Design Dock, Helsinki Design Week. Photo by Uzi Varon

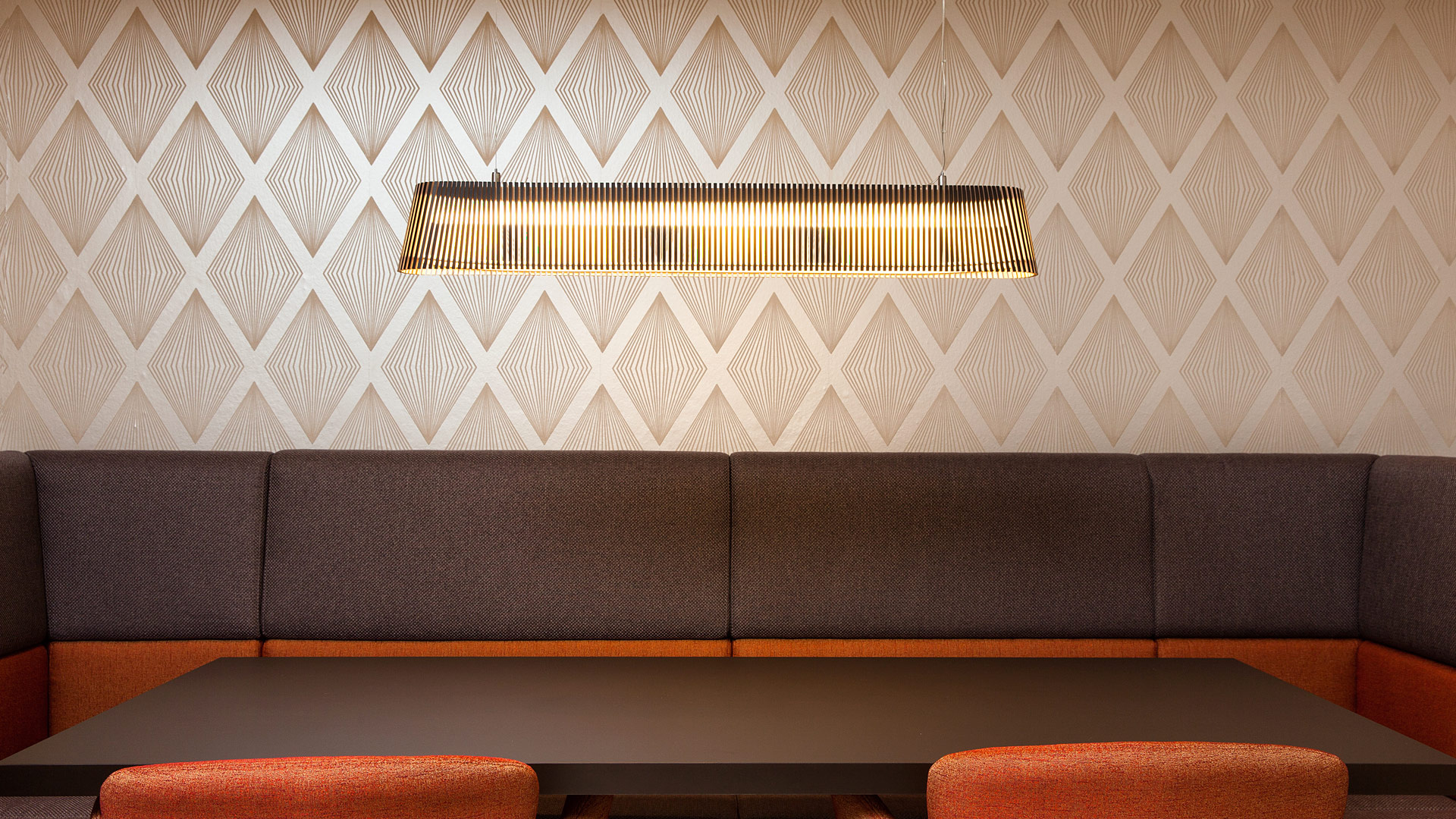

Owalo 7000. Locker & Légere Hotelbetriebs, St. Ruprecht / Raab, Austria. Photo by Markus Kaiser

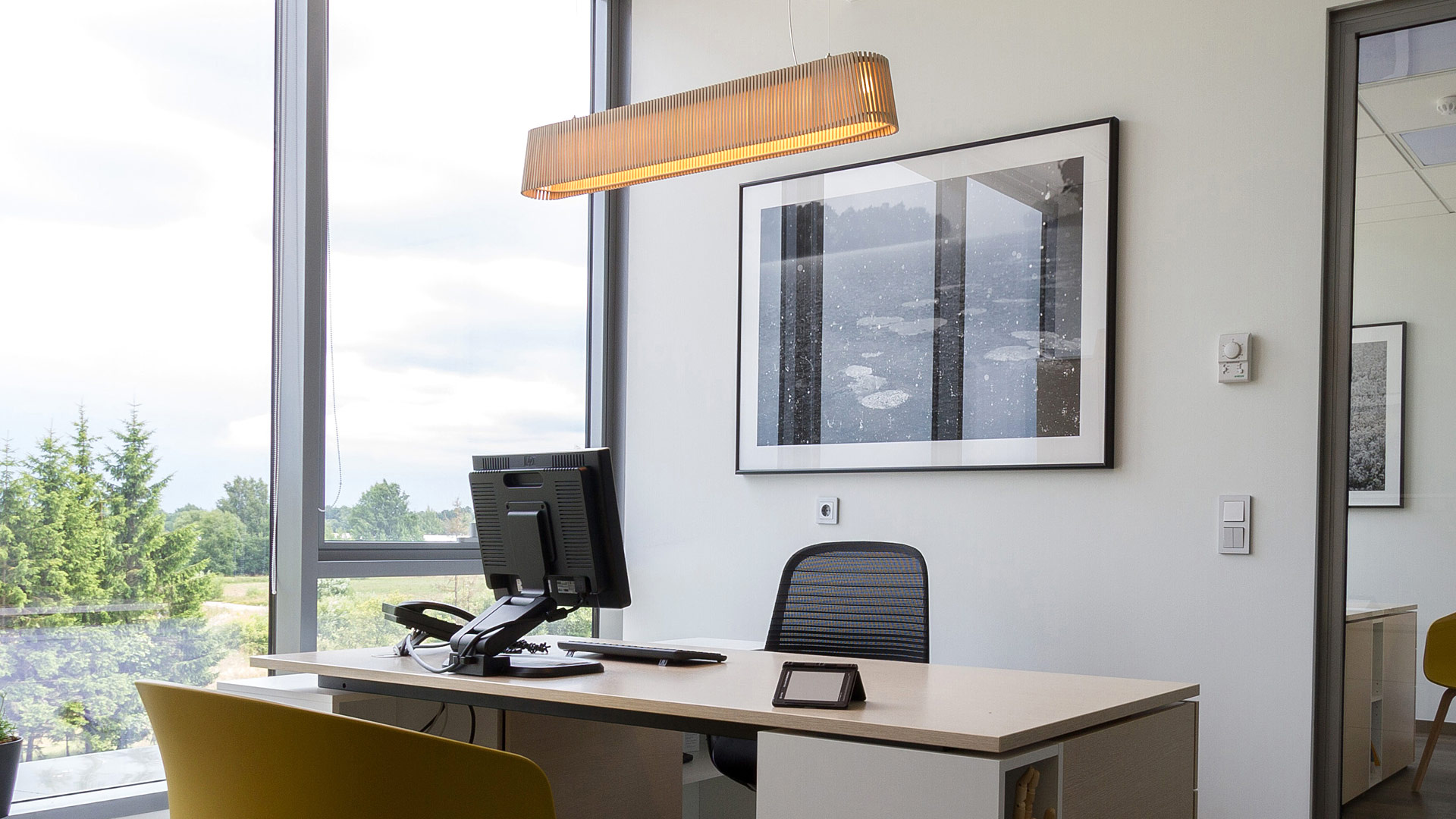

Owalo 7000. Actavis Baltics Office, Vilnius, Lithuania. Design by Arch. Ruta Bagdzeviciute. Photo by Dualhead

Owalo 7000 pendant lamp

Handmade of PEFC-certified formpressed birch in Finland by highly skilled craftsmen. The wood provides a soft luminosity for atmosphere and appeal. Uses the latest LED-technology.

Finishing options

Natural birch White textile cable + ceiling cup
White laminated White textile cable + ceiling cup
Black laminated Black textile cable + ceiling cup
Walnut veneer White textile cable + ceiling cup

Product details

Material Formpressed birch slats

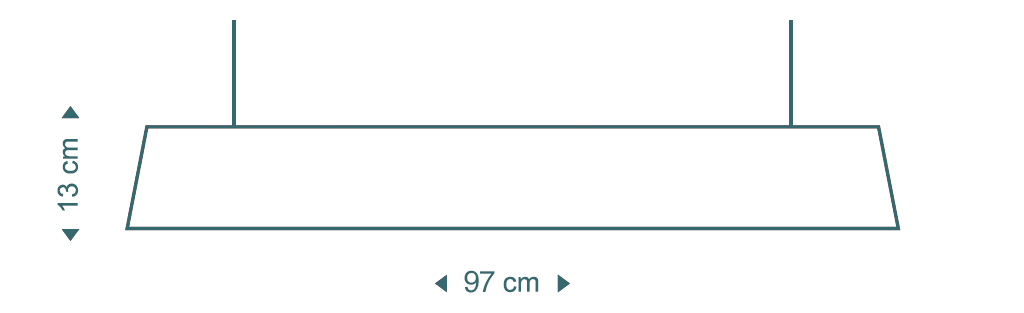

Sizes Height 13 cm
Length 100 cm
Width 9 cm
Weight 3,2 kg
Package 119 × 22 × 18 cm, 5 kg
Light source A built-in LED, 21 W, 2850 K, 2500 lm, dimmable (built-in step dimming + trailing edge compatibility)
DALI Attachable to DALI systems with a separate DALI-compatible trailing edge (phase cut off) type dimmer. Due to great variation in DALI systems, Secto Design does not supply DALI-dimmers. Please contact your local electrician.
Cable 200 cm, textile cable, connector (+ a separate ceiling plug in Finland and Sweden), ceiling cup, 2 steel wires
Classification Ingress Protection IP20
IEC Protection Class II
CE marking
Installation Please refer to the separate instructions on the website.
Maintenance Wipe dust regularly. To remove fresh stains wipe with a slightly moist cloth.

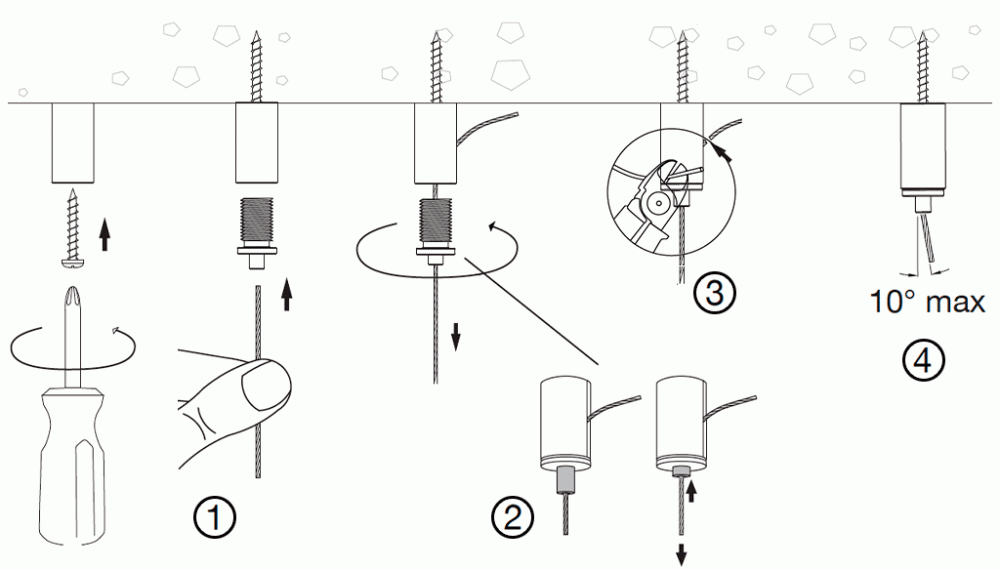

Assemble the wire holder

Step 1Be sure to insert the wire into the holder at least far enough to be able to clearly see it protrude from the other end of the holder. When attaching the holder into concrete or stone, use a screw anchor.
Step 2Push the wire sleeve to free the wire lock.
Step 3Cut off the extra wire.
Step 4Wire exit angle may not exceed 10°.

Note: Built-in step dimming + trailing edge compatibility.

Warning: The cable and the built-in LEDs can only be replaced by the manufacturer or a certified electrician.

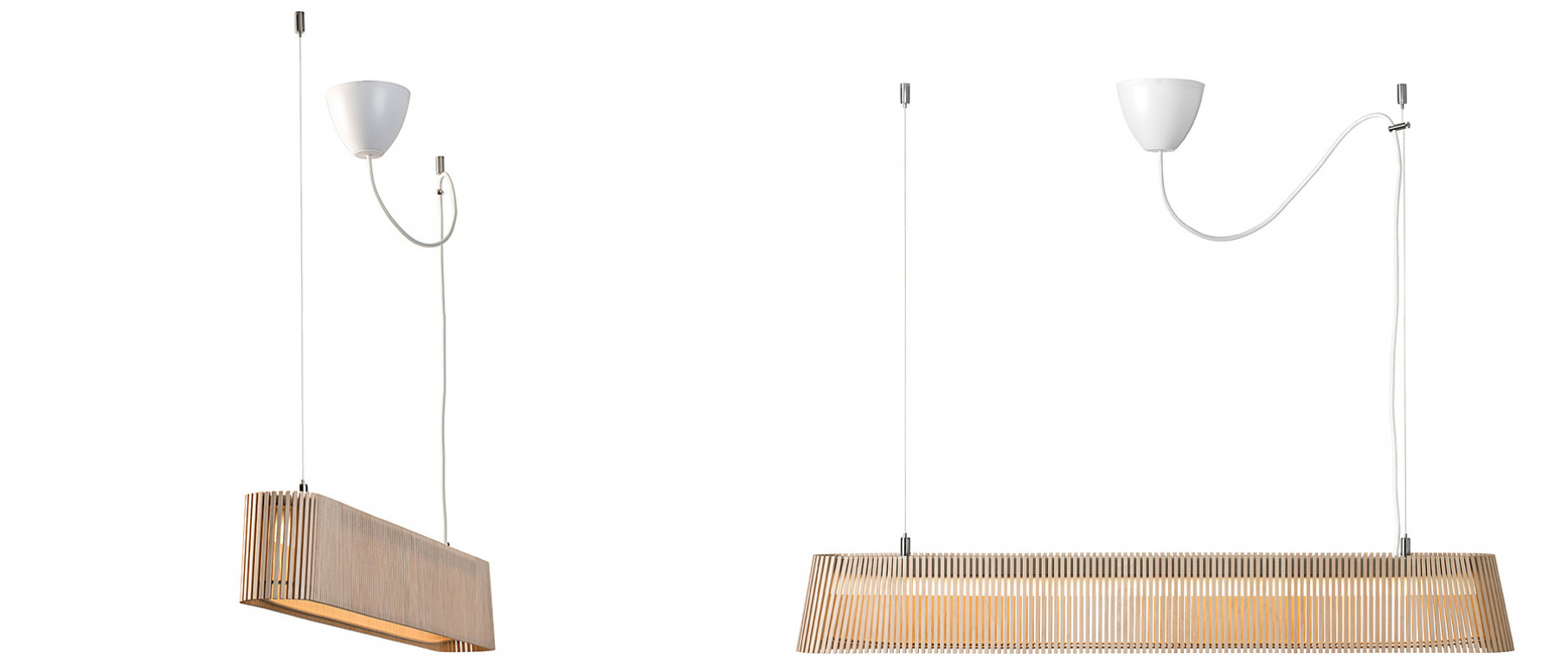

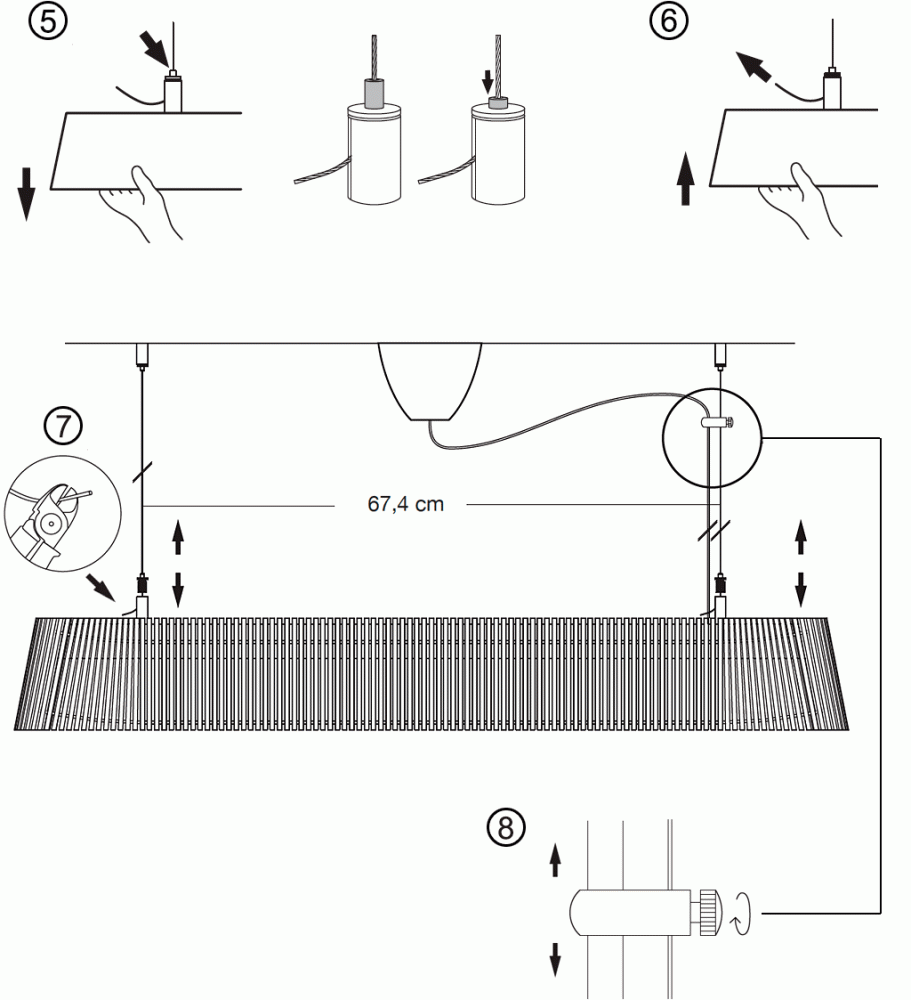

Connect and adjust the height and balance

Step 5Hold the lampshade. Push the wire sleeve to free the wire lock and lower it down.
Step 6Hold the lampshade. Pull the wire to raise it up.
Step 7Cut off the extra wire.
Step 8Cable straightener: Adjust position and tighten the screw.

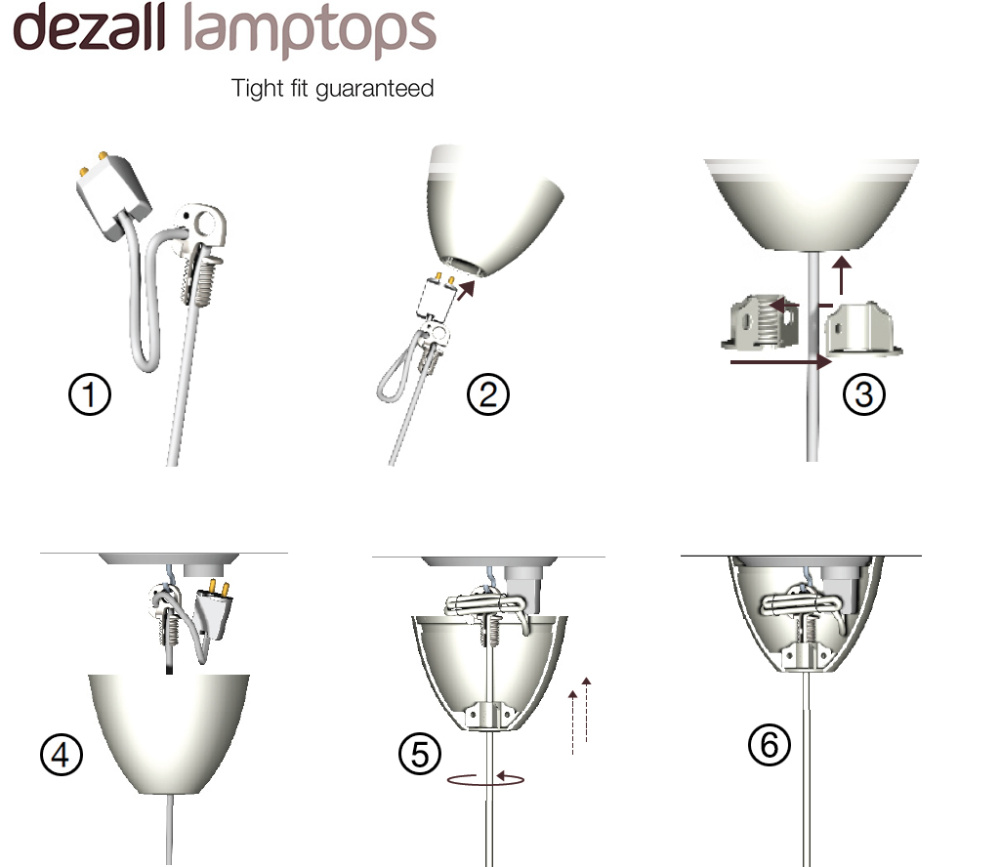

Dezall lamptops

This Secto Design pendant uses the patented ceiling suspension by Dezall. Easy and quick to install, enables the ceiling cup to sit perfectly tight against the ceiling.

Step 1Lock the cord in the upper part of the screw, start in the middle. Then insert it into the opening along the thread. Push it down into the bottom of the channel.
Step 2Insert the screw, plug and remaining cord through the cover from below. Also insert it through the ring if this is to be used.
Step 3Put the two matching bottom parts together, facing each other, around the cord between the cover and the lamp. Insert the assembled bottom part into the cover by fitting the “wings” into the slots inside the cover. Push it into the cover until fully seated.
Step 4Hang the screw on the ceiling hook and connect the plug.
Step 5Move the lamptop upwards towards the screw hanging on the hook. When the screw and the bottom parts’ “nut” have come in contact inside the cover, start screwing the cover clockwise until it reaches the ceiling.
Step 6The lamptop is now sitting straight to the ceiling.

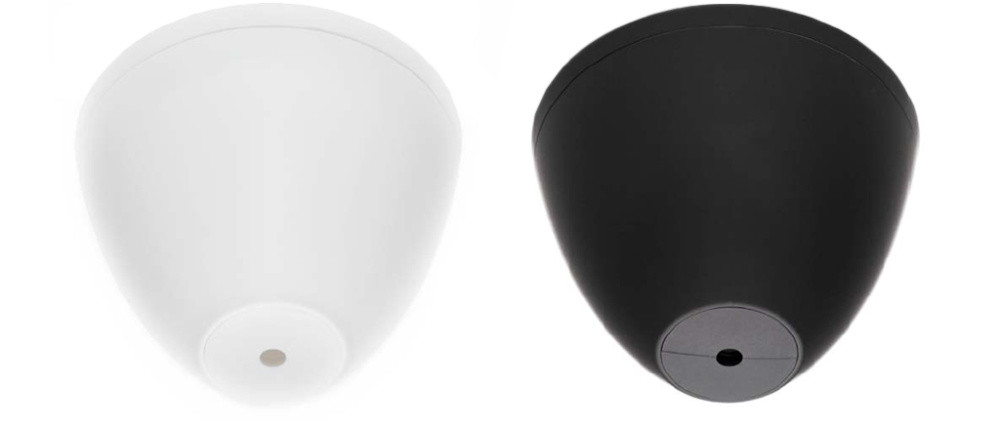

Round ceiling cup

Height8,1 cm / 8,9 cm (with ring)
Outer upperØ 11,2 cm / 11,7 cm (with ring)
Inner upperØ 11,7 cm / 12,0 cm (with ring)
Weight58 g / 74 g (with ring)
ColorWhite or black matt soft lacquer depending on the colour of the pendant
InformationThe round ceiling cup includes an additional ring, which enables leading the cable along the ceiling into the ceiling cup. The additional ring can also be used to cover a larger ceiling socket.

Any extra length of the cable can be swirled into the ceiling cup when altering the hanging height of the pendant.
