Wooden Teelo 8020 table lamp by Secto Design

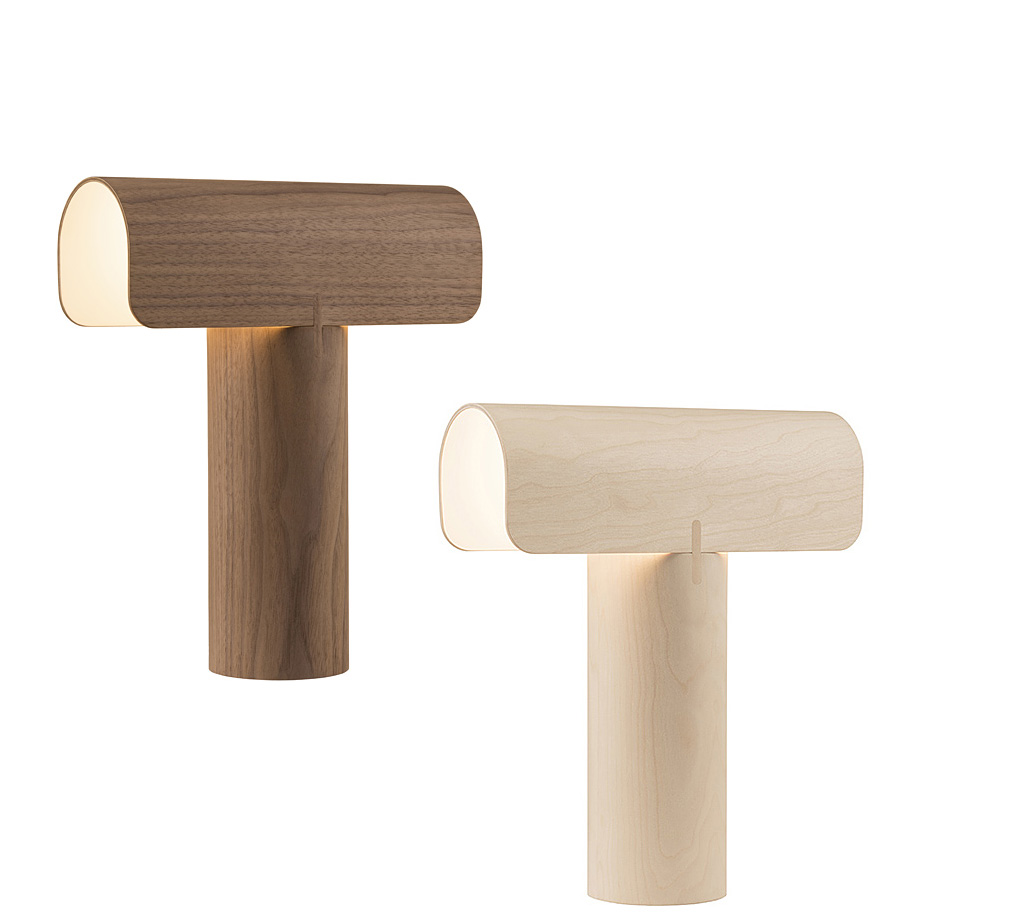

Teelo 8020 table lamp

Handmade of PEFC-certified form pressed birch in Finland by highly skilled craftsmen.

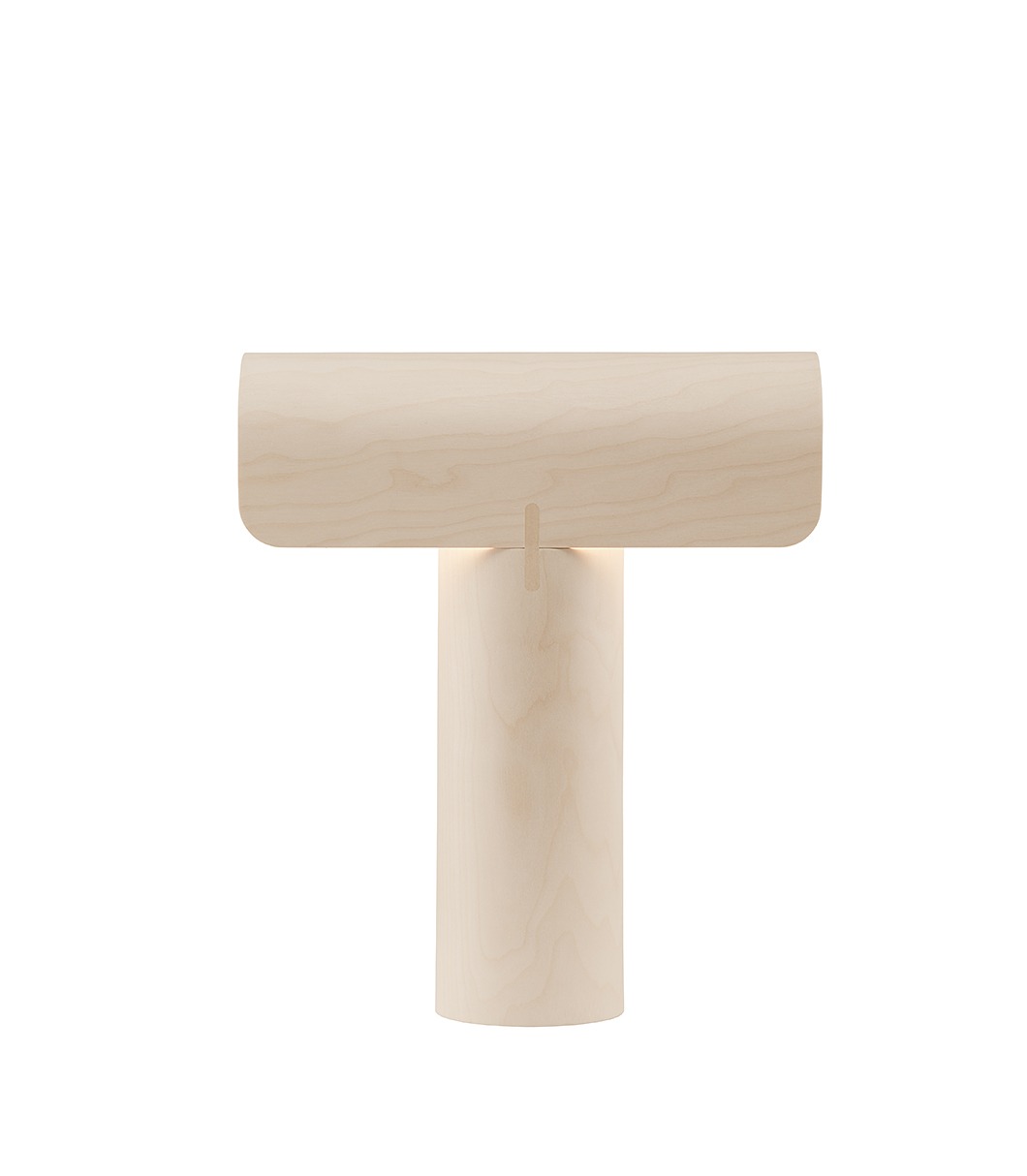

Material	Form pressed birch, powder coated steel inner stand

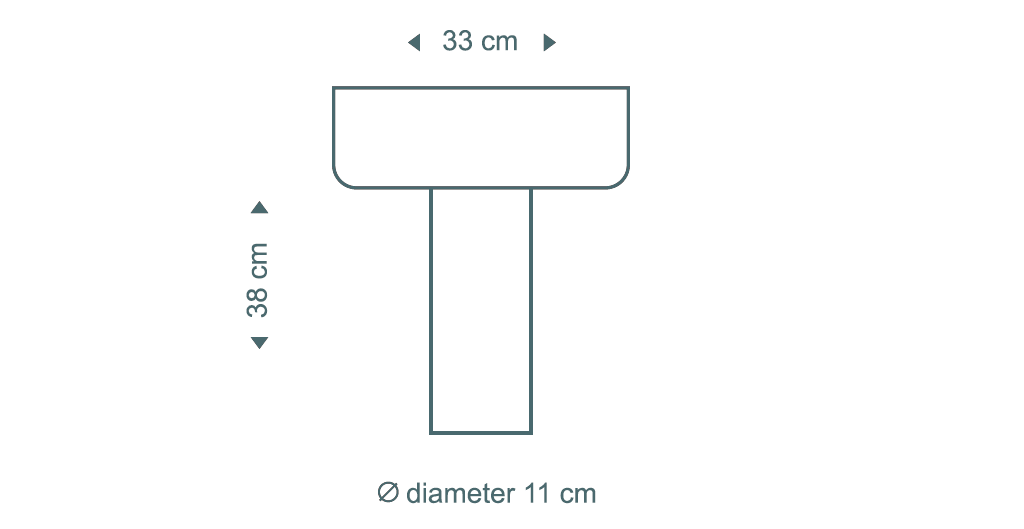

Dimensions	Height 38 cm Width 33 cm Diameter Ø 11 cm Weight 1,0 kg Package 42 × 38 × 16 cm, 1,7 kg
Voltage	220-240VAC 50Hz
Light source	E27 base, LED max 20 W. Comes with a LED bulb (Airam Pro LED, E27, 12 W, 1060 lumen, 3000 K, pure white, dimmable, may vary). The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating. This product is supplied with an example bulb of energy efficiency class F.
Dimming	Details
DALI	Attachable to DALI systems with a separate DALI-compatible trailing edge (phase cut off) type dimmer. Due to great variation in DALI systems, Secto Design does not supply DALI-dimmers. Please contact your local electrician.
Cable	220 cm, textile cable, switch on the cable
Classification	Ingress Protection IP20, IEC Protection Class II, CE marking
Maintenance	Wipe dust regularly. To remove fresh stains wipe with a slightly damp cloth.

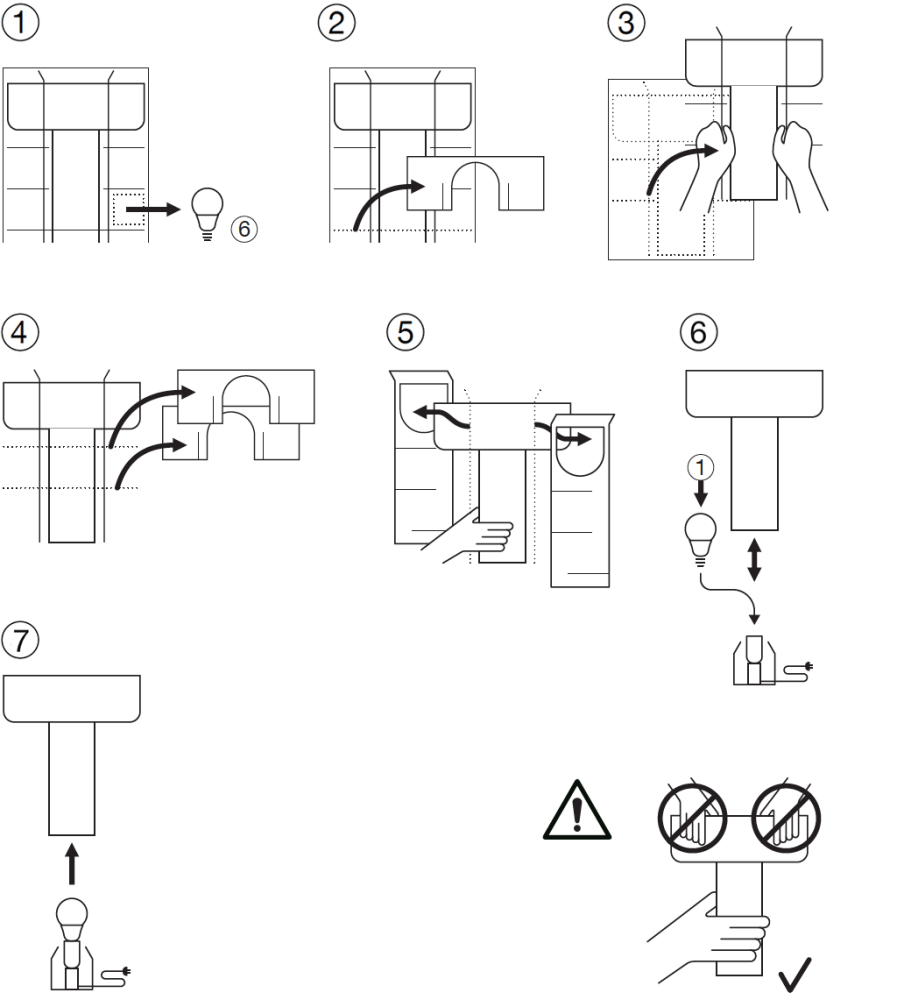

Assembly instructions

Step 1

Take out the light bulb from the package.

Step 2

Remove the bottom part of the package.

Step 3

Lift up the lamp body from the package by holding it from the sheltering structure around it.

Step 4

Remove the two top sheltering elements.

Step 5

Remove the two remaining sheltering elements.

Step 6

Pull out the socket unit inside the lamp body and install the light bulb into the socket.

Step 7

Re-install the socket unit into to the lamp body, and plug in the lamp cord.

WARNING: Don't lift the lamp from the shade, instead always hold it from the lamp body.

WARNING: The cable can only be replaced by the manufacturer or an authorized service agent.
