Aspiro 8000: Playful masterpiece
This playful free falling spiral shaped pendant uses the latest LED technology and comes conveniently flat packed!
More images of the Aspiro 8000 pendant lamp here

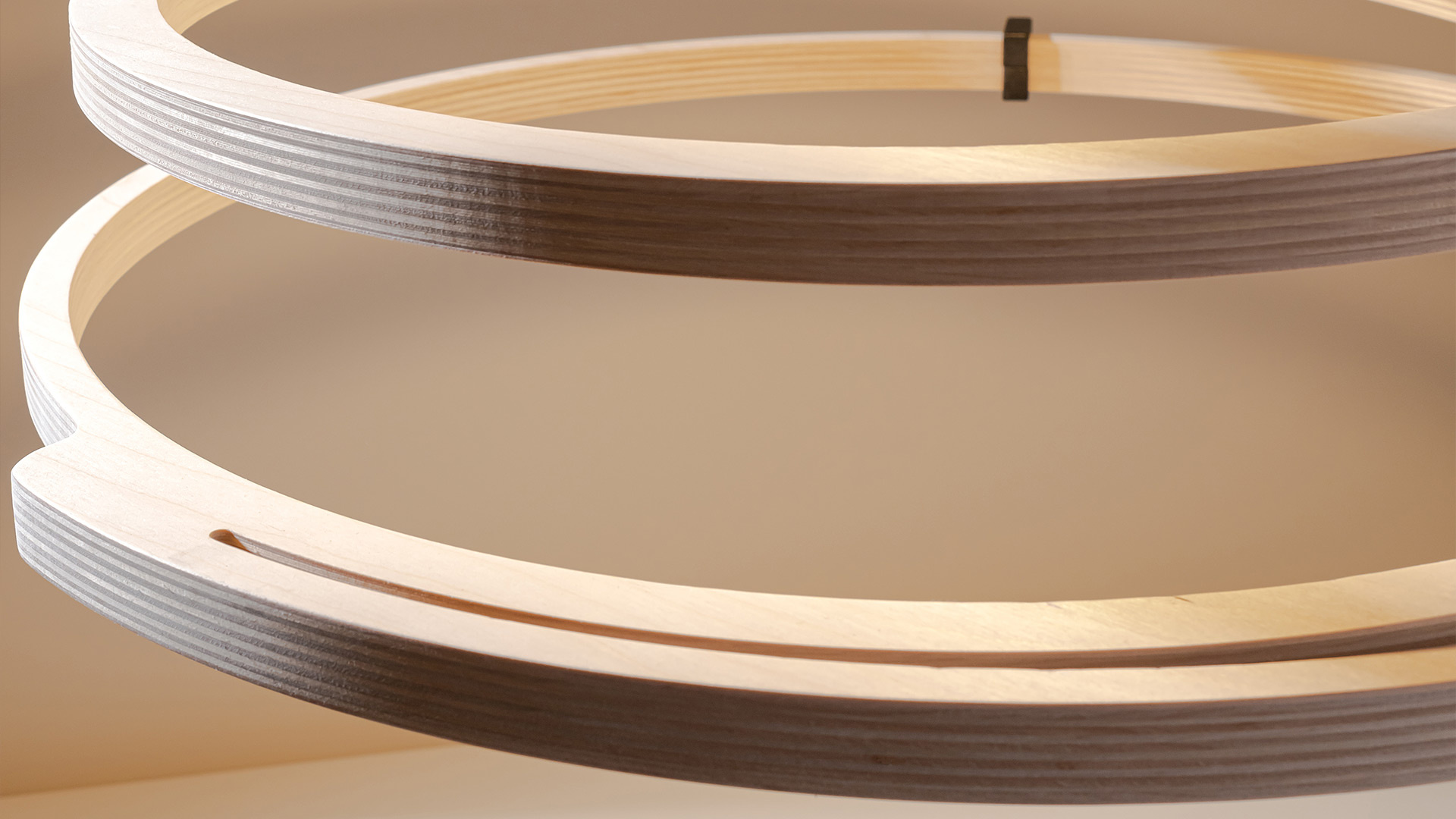

Handmade of PEFC-certified formpressed birch in Finland by highly skilled craftsmen. Uses the latest LED-technology.

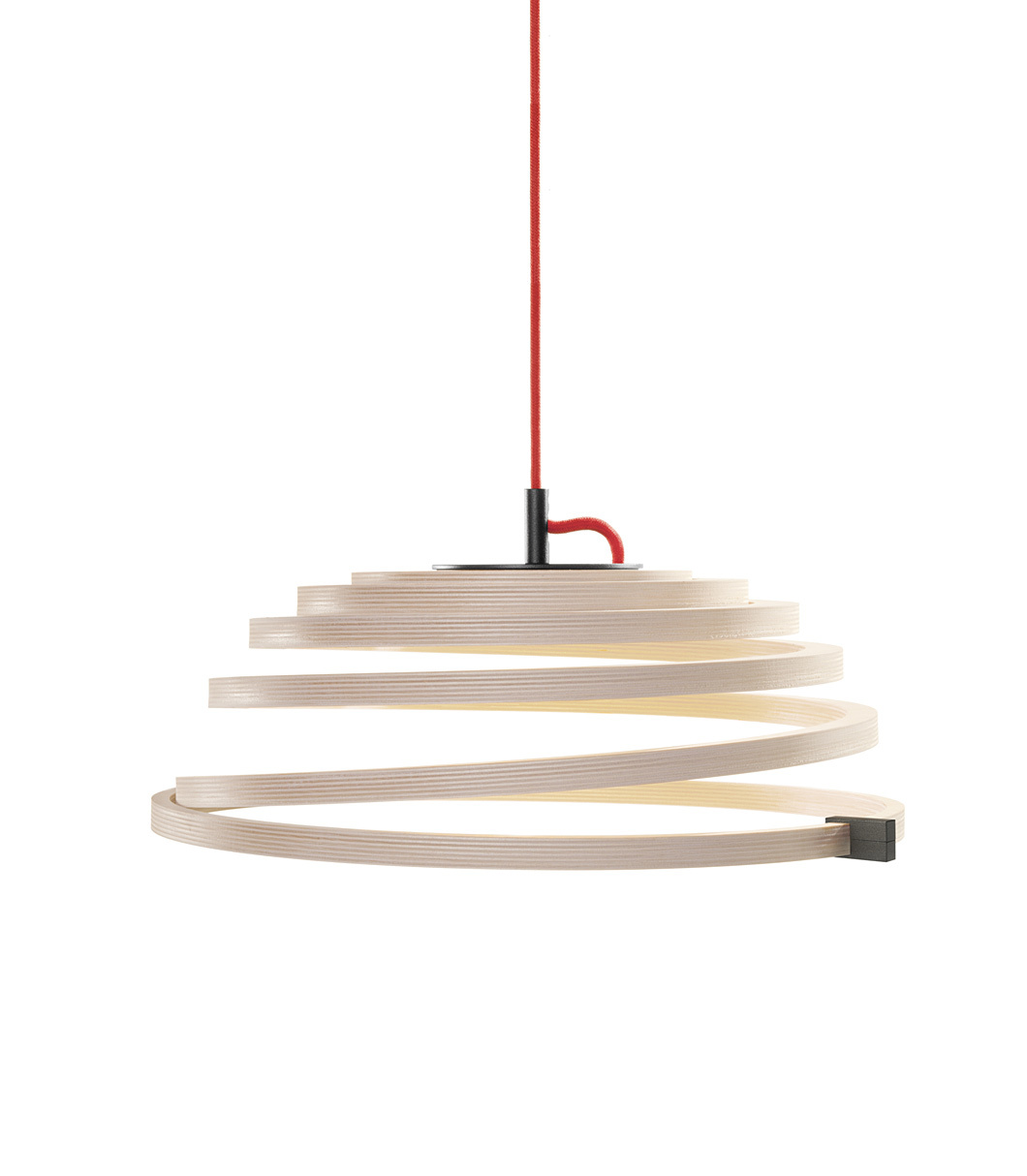

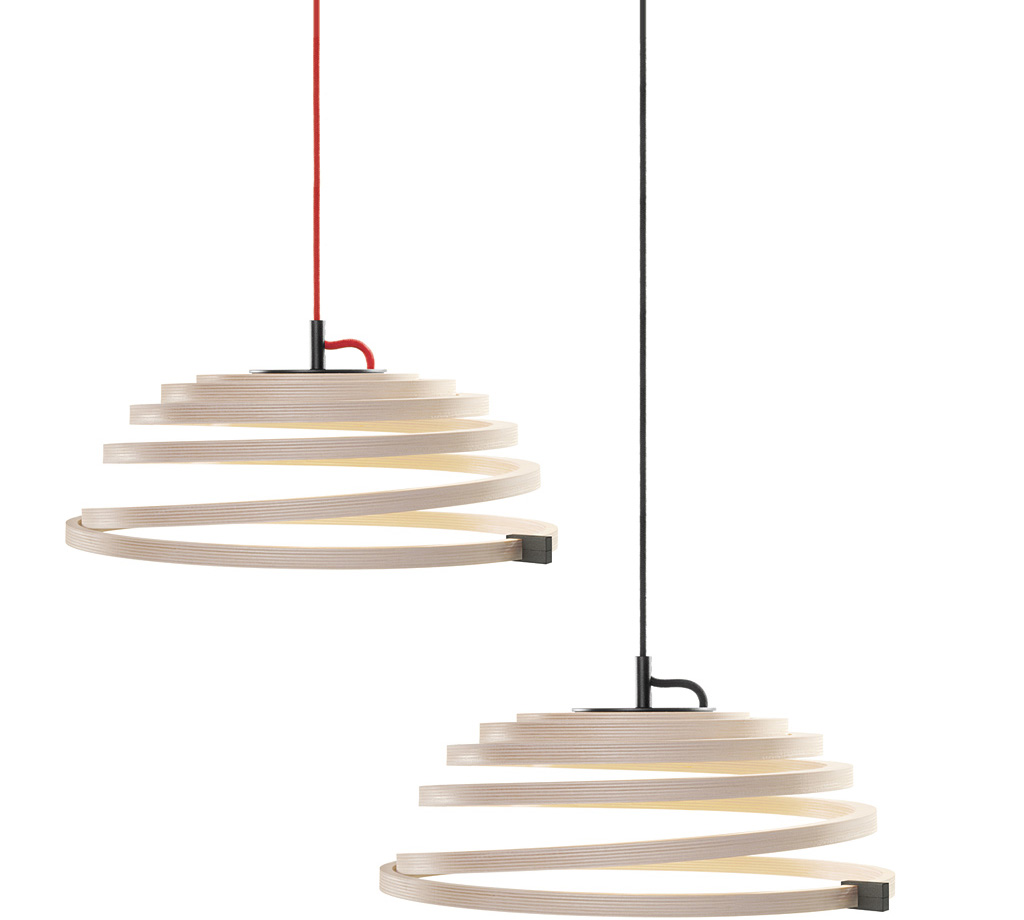

Natural birch | Red or black textile cable + black ceiling cup |
Material | Formpressed birch |

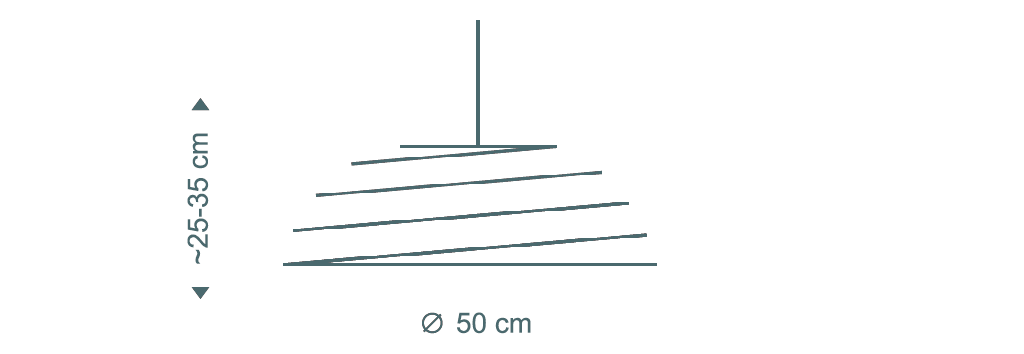

Sizes | Height ~25–35 cm Diameter Ø 50 cm Weight 2,5 kg Package 53 × 52 x 16 cm, 4,0 kg |
Light source | A built-in LED, 11 W, 2850 K, 650 lm, CRI 85, dimmable (built-in step dimming + trailing edge compatibility) |
DALI | Attachable to DALI systems with a separate DALI-compatible trailing edge (phase cut off) type dimmer. Due to great variation in DALI systems, Secto Design does not supply DALI-dimmers. Please contact your local electrician. |
Cable | 200 cm, textile cable, connector (+ a separate ceiling plug in Finland and Sweden), ceiling cup |
Classification | Ingress Protection IP20, IEC Protection Class II, CE marking |
Maintenance | Wipe dust regularly. To remove fresh stains wipe with a slightly moist cloth. |

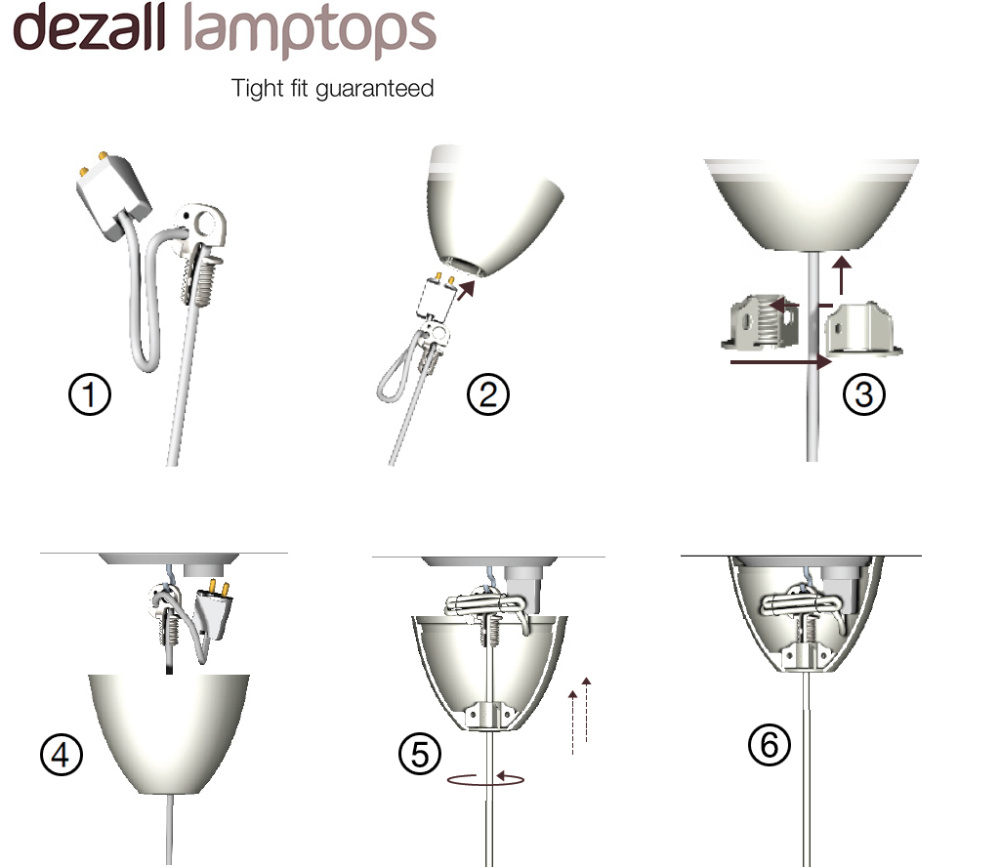

This Secto Design pendant uses the patented ceiling suspension by Dezall. Easy and quick to install, enables the ceiling cup to sit perfectly tight against the ceiling.
Step 1 | Lock the cord in the upper part of the screw, start in the middle. Then insert it into the opening along the thread. Push it down into the bottom of the channel. |
Step 2 | Insert the screw, plug and remaining cord through the cover from below. Also insert it through the ring if this is to be used. |
Step 3 | Put the two matching bottom parts together, facing each other, around the cord between the cover and the lamp. Insert the assembled bottom part into the cover by fitting the “wings” into the slots inside the cover. Push it into the cover until fully seated. |
Step 4 | Hang the screw on the ceiling hook and connect the plug. |
Step 5 | Move the lamptop upwards towards the screw hanging on the hook. When the screw and the bottom parts’ “nut” have come in contact inside the cover, start screwing the cover clockwise until it reaches the ceiling. |
Step 6 | The lamptop is now sitting straight to the ceiling. |
Please notice that humidity canchange the spiral’s tightness.
The balance of the spiral canbe altered by moving the metalweight on the ring.
The lamp can be dimmed (to 70%, 30% and 15%) by clicking the wall switch.
Warning: The cable and the built-in LEDs can only be replaced by the manufacturer.

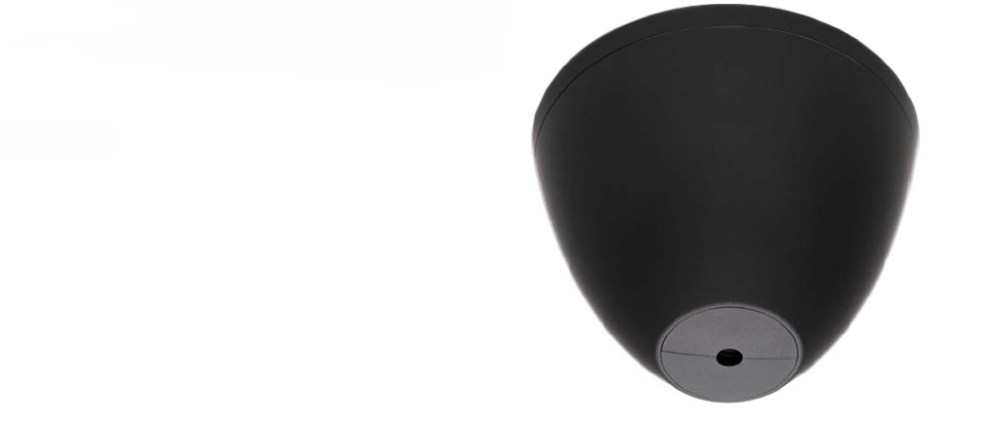

Height | 8,1 cm / 8,9 cm (with ring) |
Outer upper | Ø 11,7 cm / 12,0 cm (with ring) |
Inner upper | Ø 11,2 cm / 11,7 cm (with ring) |
Weight | 58 g / 74 g (with ring) |
Color | Black matt soft lacquer |
Information | The round ceiling cup includes an additional ring, which enables leading the cable along the ceiling into the ceiling cup. The additional ring can also be used to cover a larger ceiling socket. Any extra length of the cable can be swirled into the ceiling cup when altering the hanging height of the pendant. |

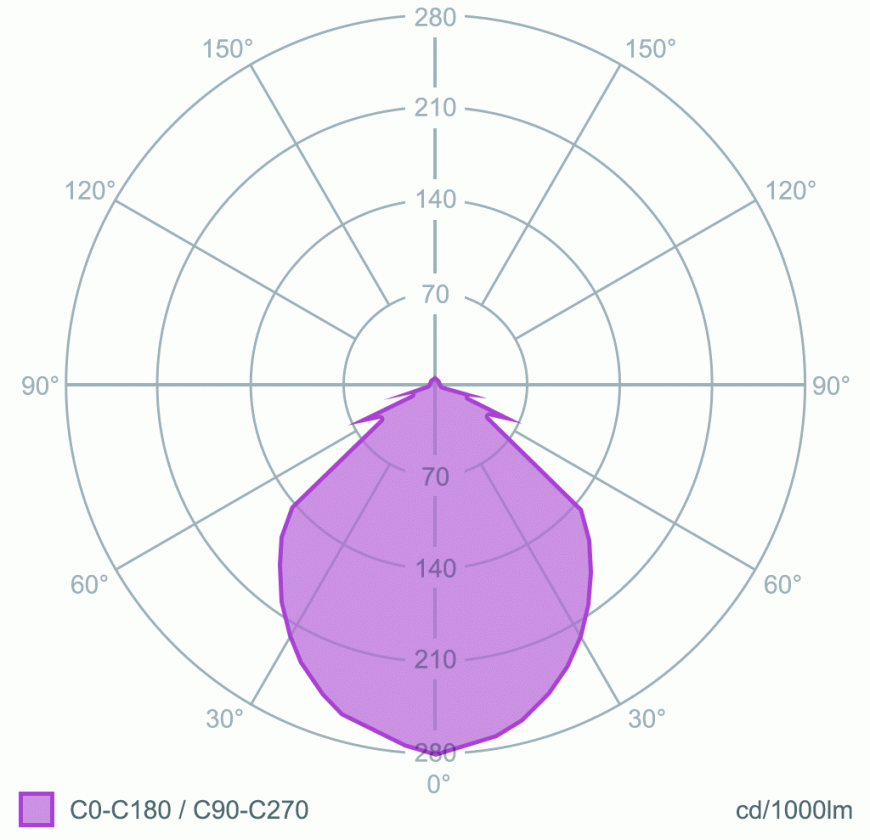

Light distribution curve of Aspiro 8000. Since the luminaire is symmetric the light distribution curve is similar at every C-planes. In order to see the full test report, please contact us.
