Kuulto Small 9101 ceiling lamp is available in natural birch

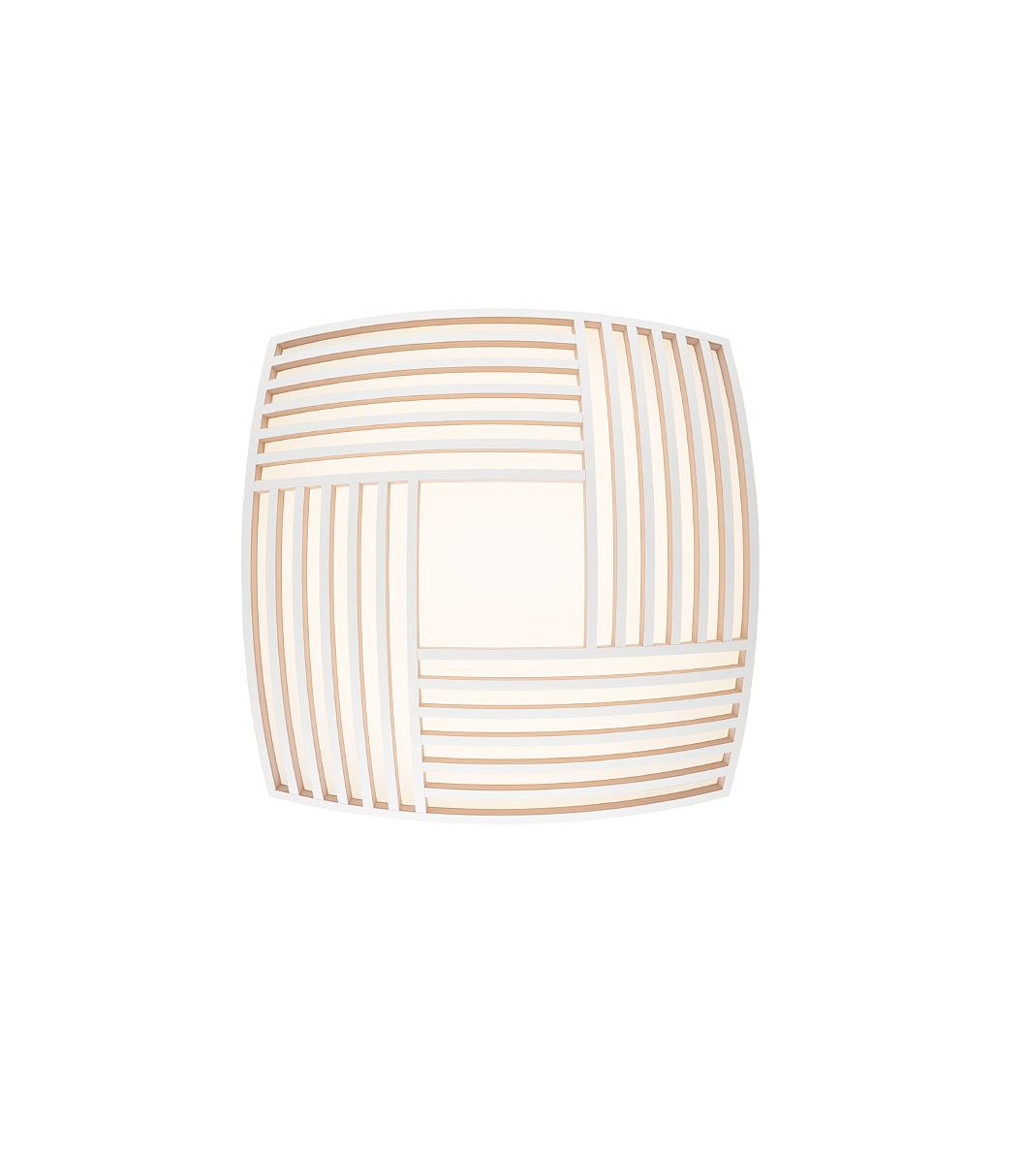

Kuulto Small 9101 ceiling lamp is available in white laminated

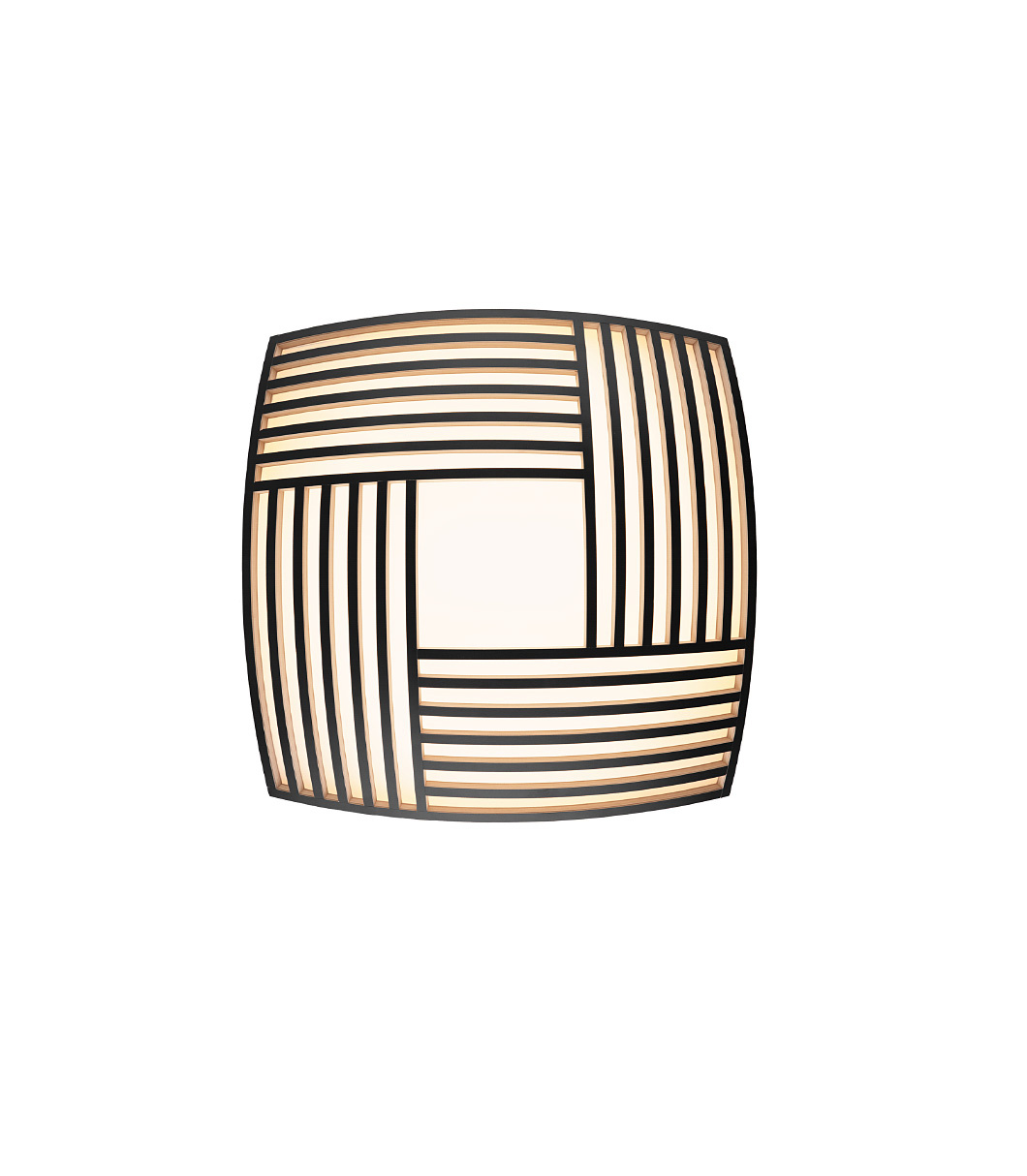

Kuulto Small 9101 ceiling lamp is available in black laminated

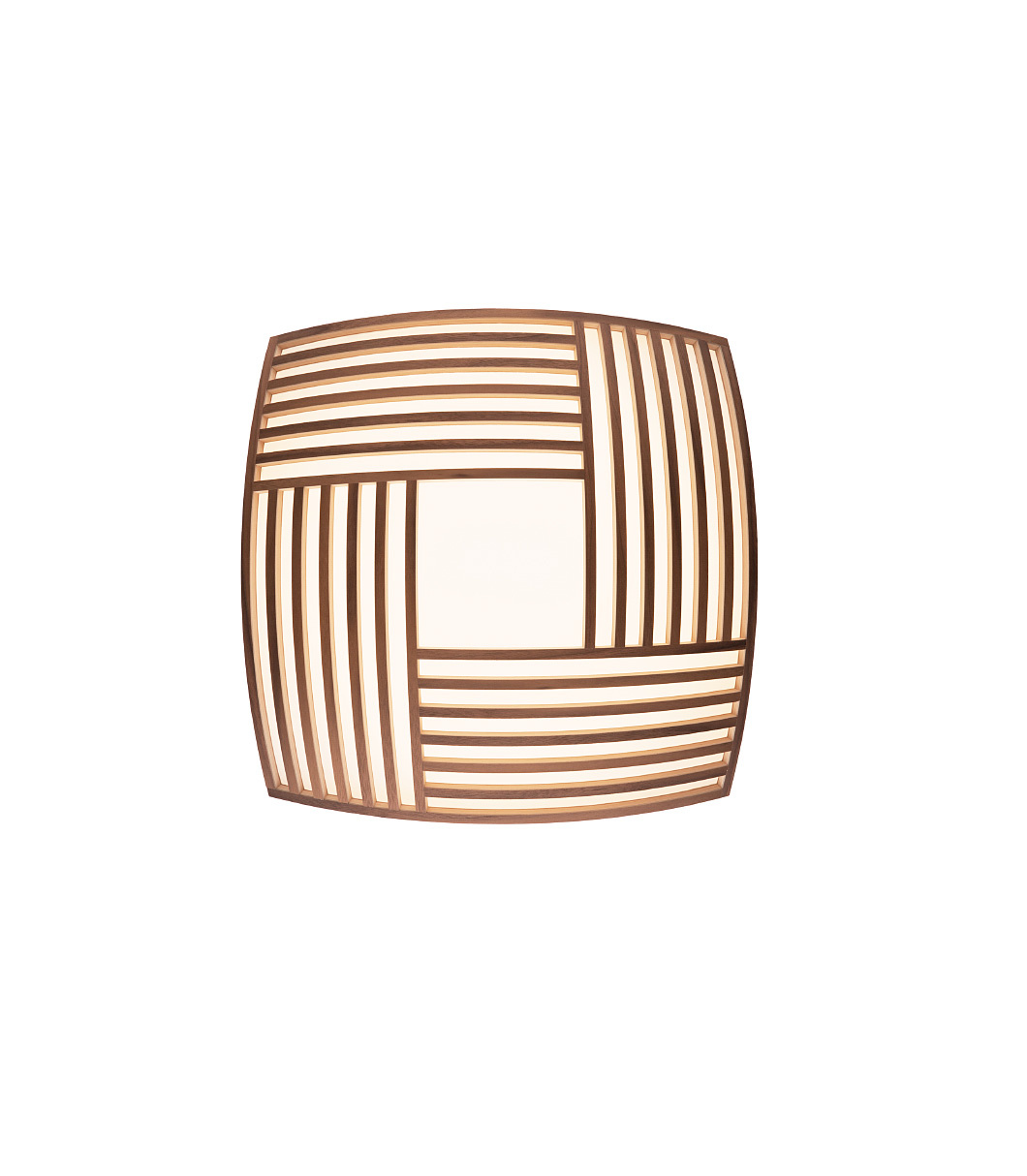

Kuulto Small 9101 ceiling lamp is available in walnut veneer

Kuulto Small 9101 ceiling lamp:
Gentle general light

A versatile space saver perfect for compact rooms. In larger interiors combinable to create rhythmic rows and groups. Also used to enliven walls.

Read designer Seppo Koho’s thoughts about the Kuulto ceiling lamp on our blog or watch the interview.

Colour:

Get it here!

Secto Design Kuulto Small 9101 ceiling lamp

Secto Design Kuulto Small 9101 ceiling lamp

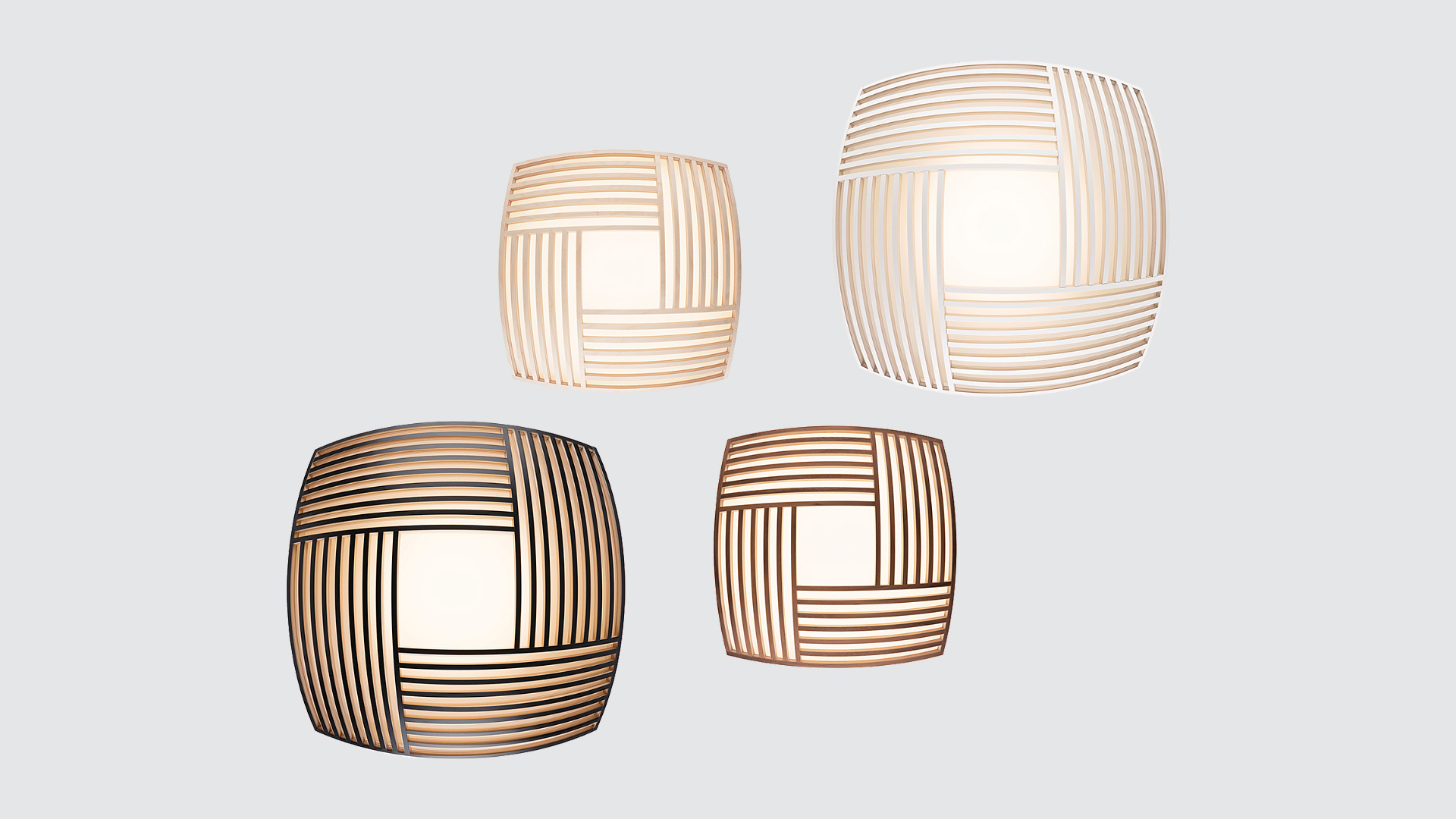

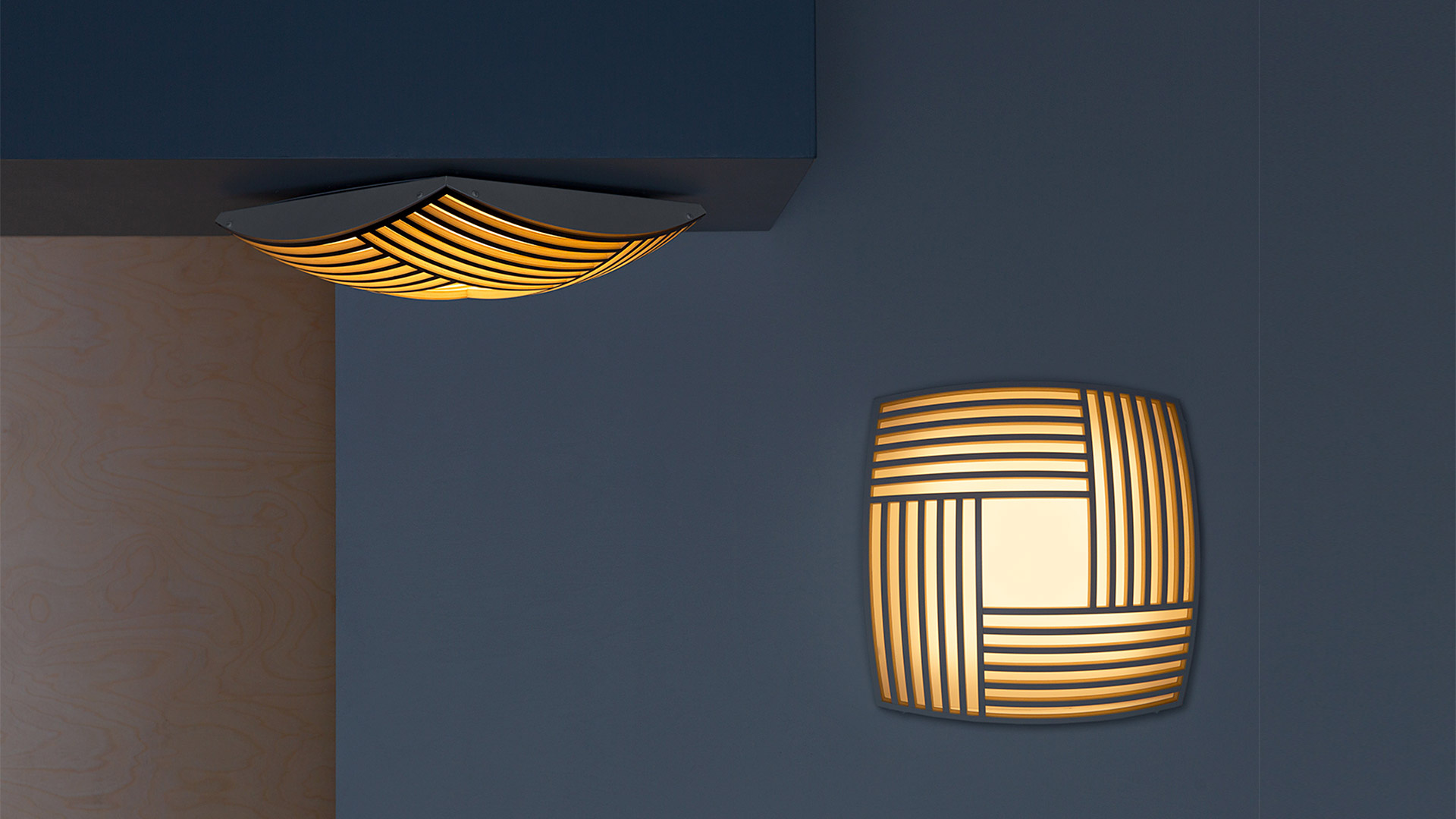

Secto Design Kuulto Small 9101 ceiling lamp and Kuulto 9100 ceiling lamp

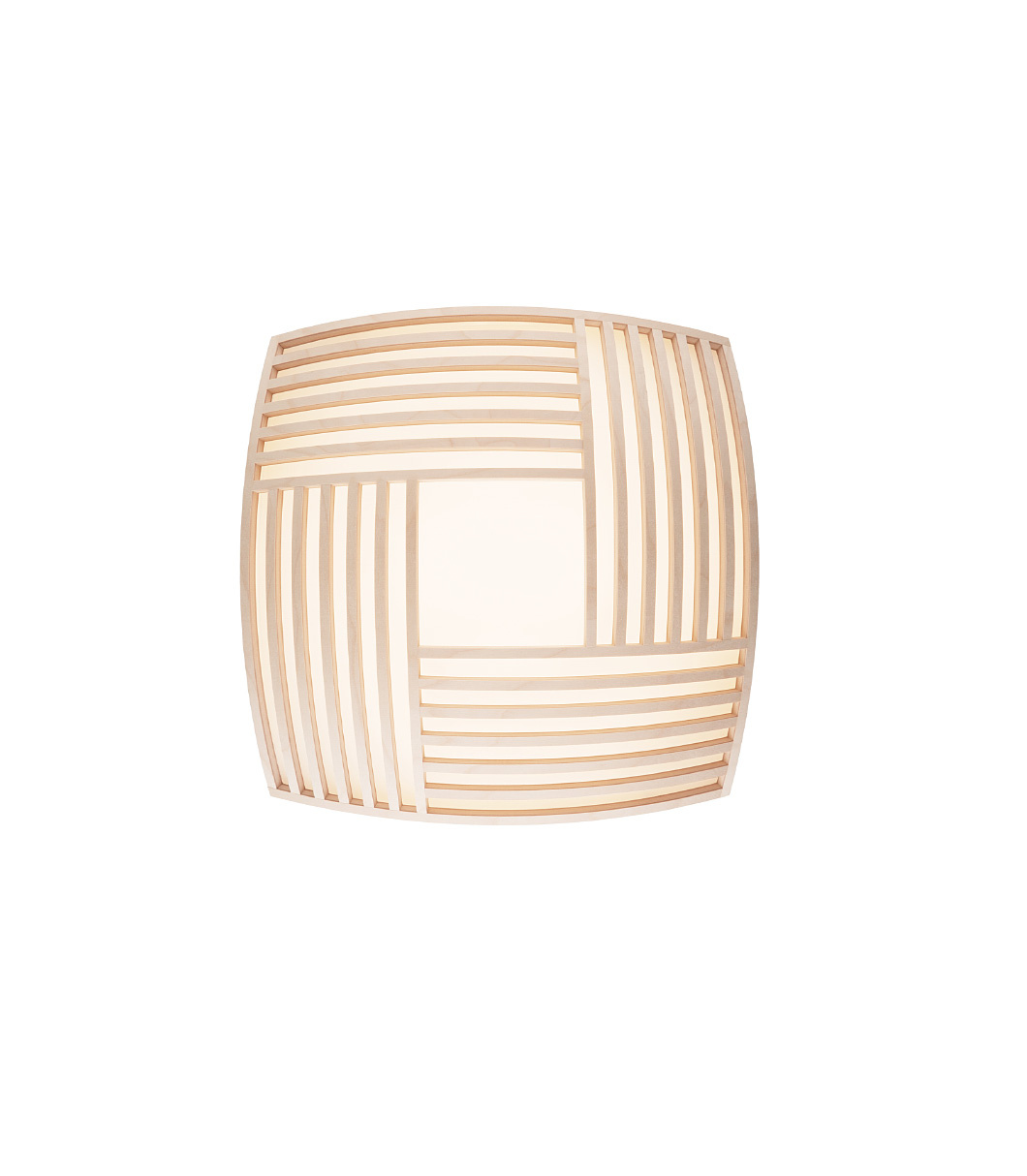

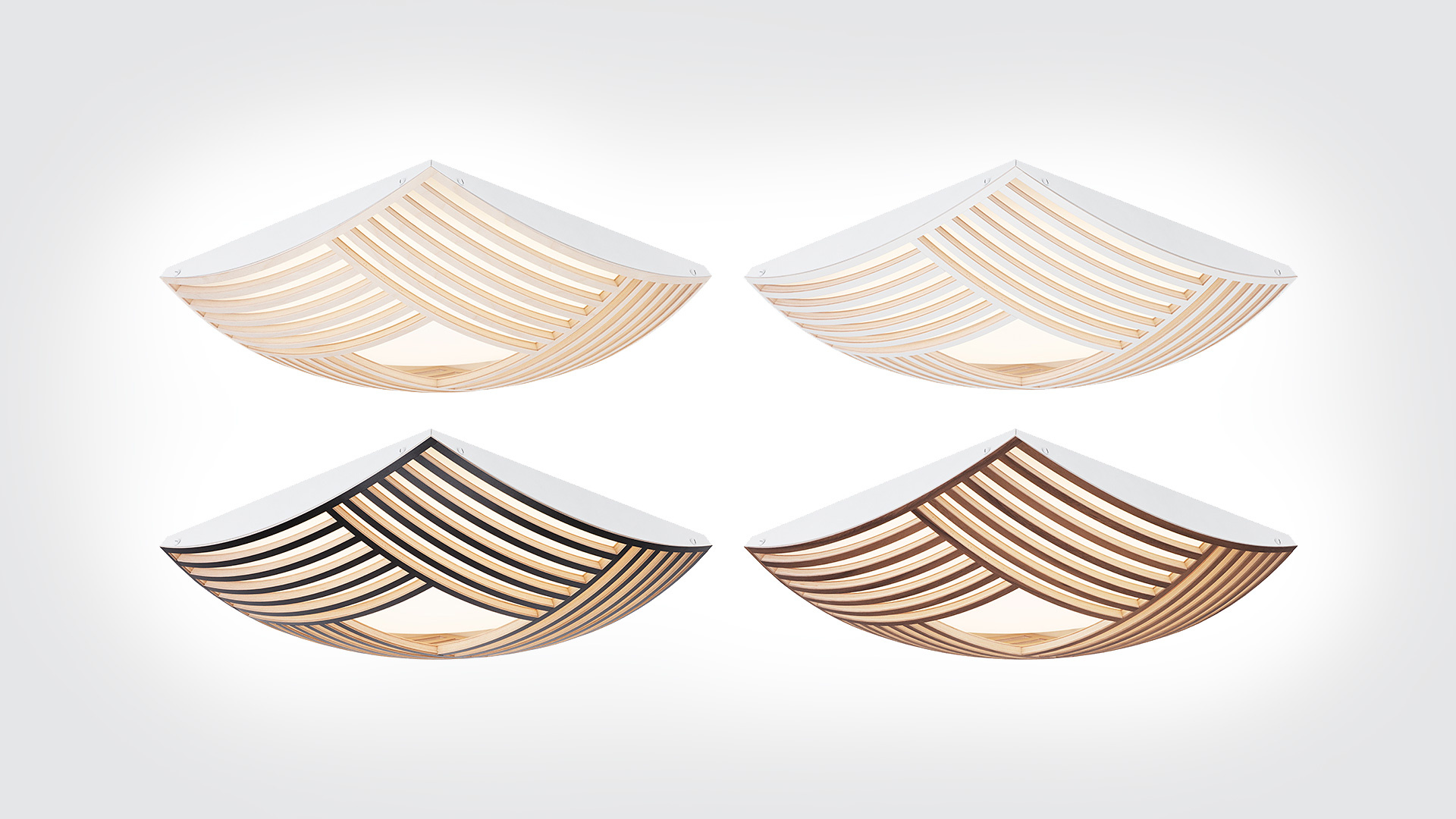

Secto Design Kuulto Small 9101 ceiling lamp is available in four colours: birch, walnut, black and white.

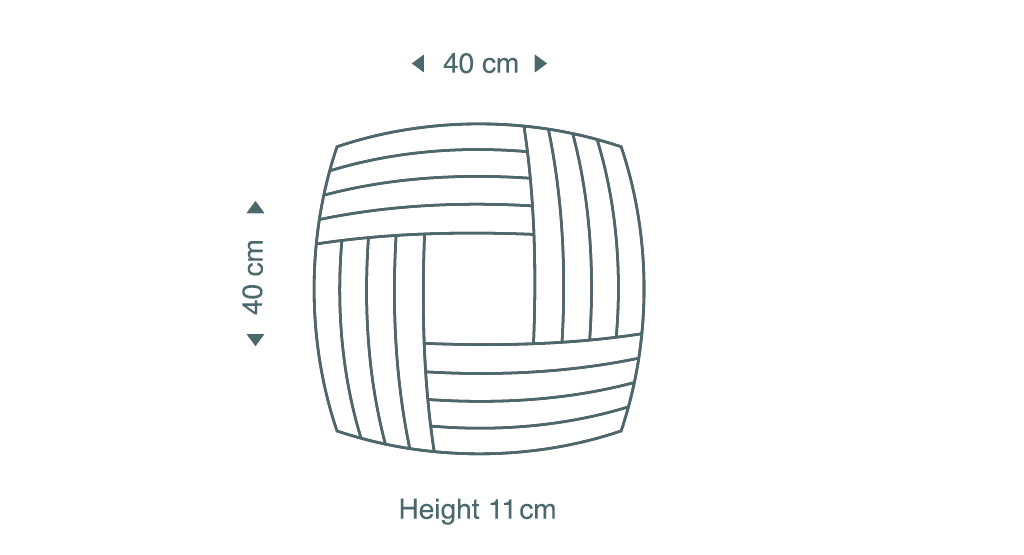

Secto Design Kuulto Small 9101 ceiling lamp is 11 cm high and 40 cm wide.

Kuulto Small 9101 ceiling lamp

Handmade of PEFC-certified form pressed birch in Finland by highly skilled craftsmen.

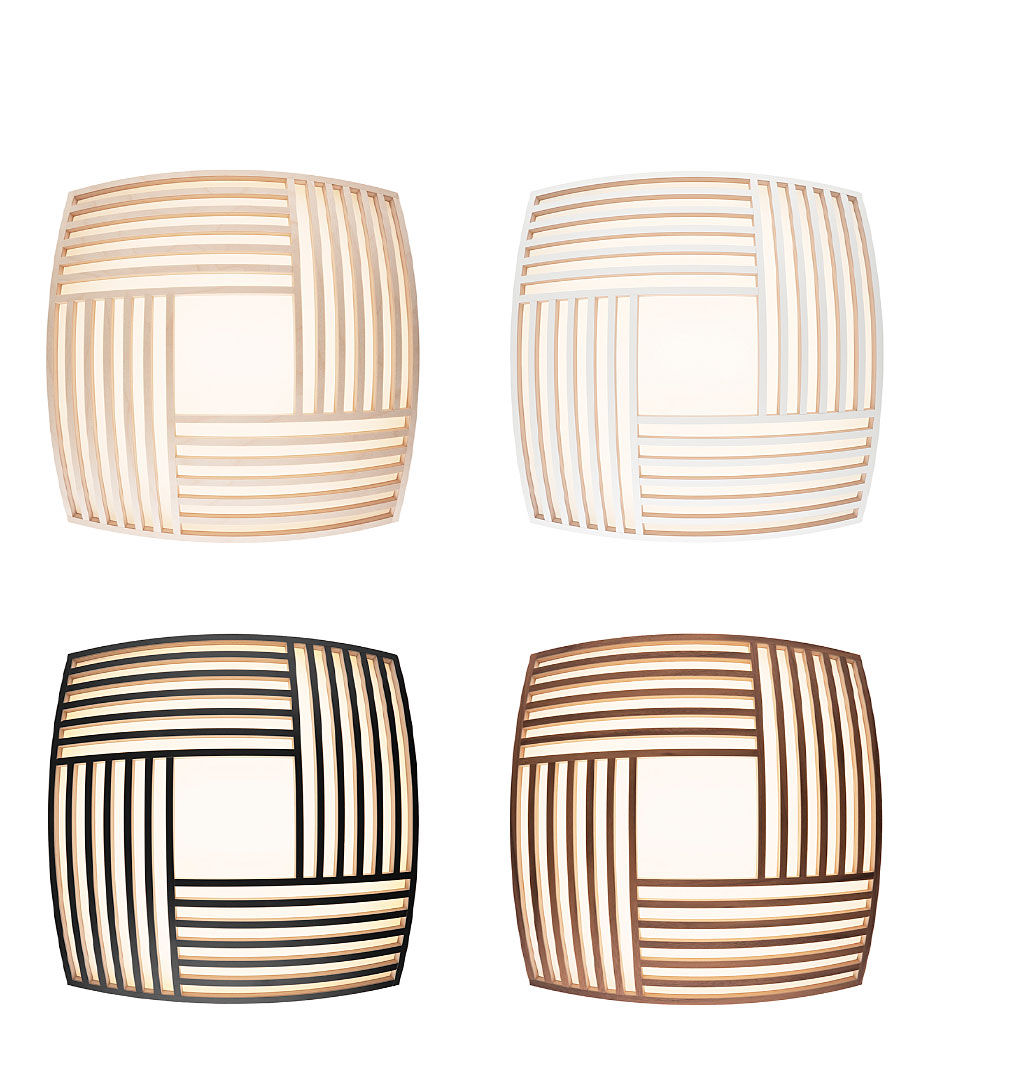

Finishing options

Shade Case
Natural birch White
White laminated White
Black laminated White
Walnut veneer White

Product details

Material Form pressed birch slats, fine textured powder coated steel case, acrylic diffuser
Dimensions Height 11 cm
Width 40 cm
Weight 3,9 kg
Package 52 x 52 x 17 cm, 5,4 kg
Voltage 220-240VAC 50Hz
Light source A built-in LED by aLED, 20 W, 2700 K or 3000 K, 3100 lm, CRI > 80. This product contains a light source of energy efficiency class C.
Dimming Details
Classification Ingress Protection IP20, IEC Protection Class II, CE marking
Installation Separate instructions on the website.
Maintenance Wipe dust regularly. To remove fresh stains wipe with a slightly damp cloth.



WARNING: The cable and the built-in LEDs can only be replaced by the manufacturer.

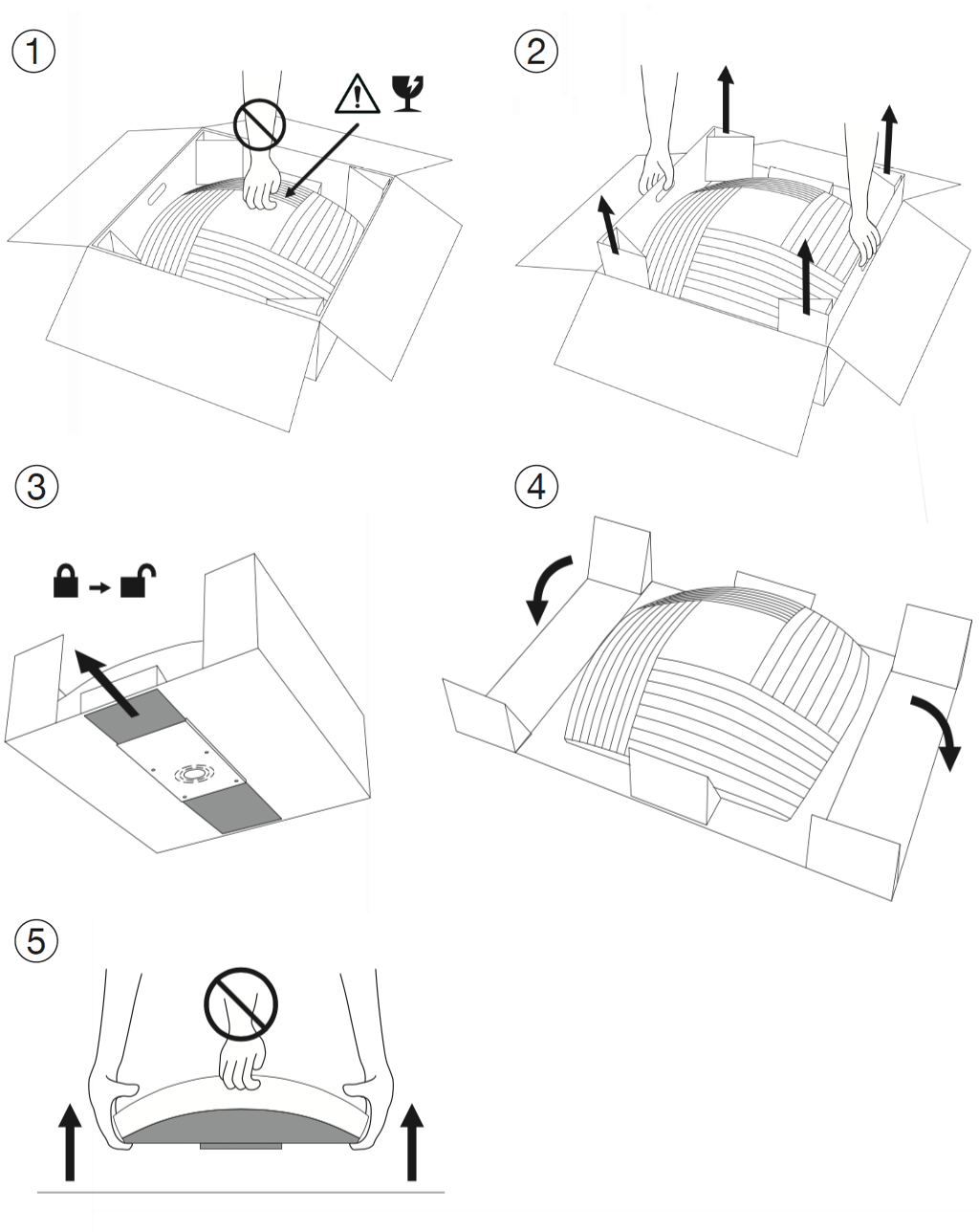

Opening instructions

Step 1WARNING: Don't lift the lamp from the shade, instead always hold it from the lamp body.
Steps 2Lift up the lamp body from the package by holding it from the sheltering structure around it.
Step 3Remove the two bottom elements that locks the sheltering structure.
Step 4Open the sheltering structure.
Step 5Lift up the lamp by holding it from the lamp body. WARNING: Don't lift the lamp from the shade.

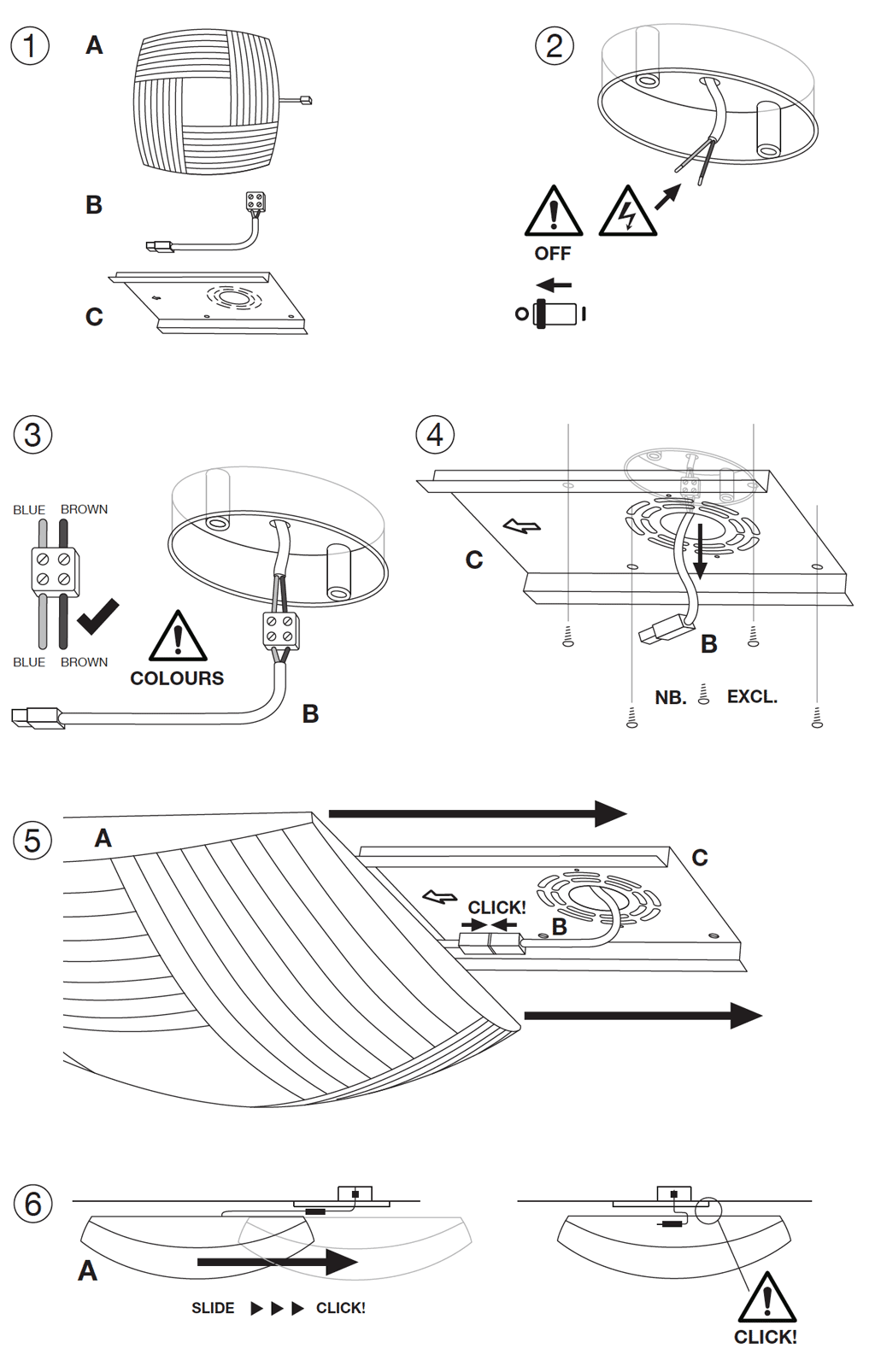

Installation instructions

Step 1The lamp includes: A) shade, B) electric cable, and C) back plate, size 24,5 x 18,4 cm, height 1,4 cm
Steps 2, 3The lamp is directly mounted to the cables coming out of the ceiling socket. Please consult an electrician regarding the power cable installation!
Step 4Screw the back plate to the wall (screws not incl.)
Step 5Slide the wooden shade onto the plate along the wooden rails and connect the electric cables together.
Step 6Slide the lamp until the lock secures the position.

WARNING: The cable and the built-in LEDs can only be replaced by the manufacturer.

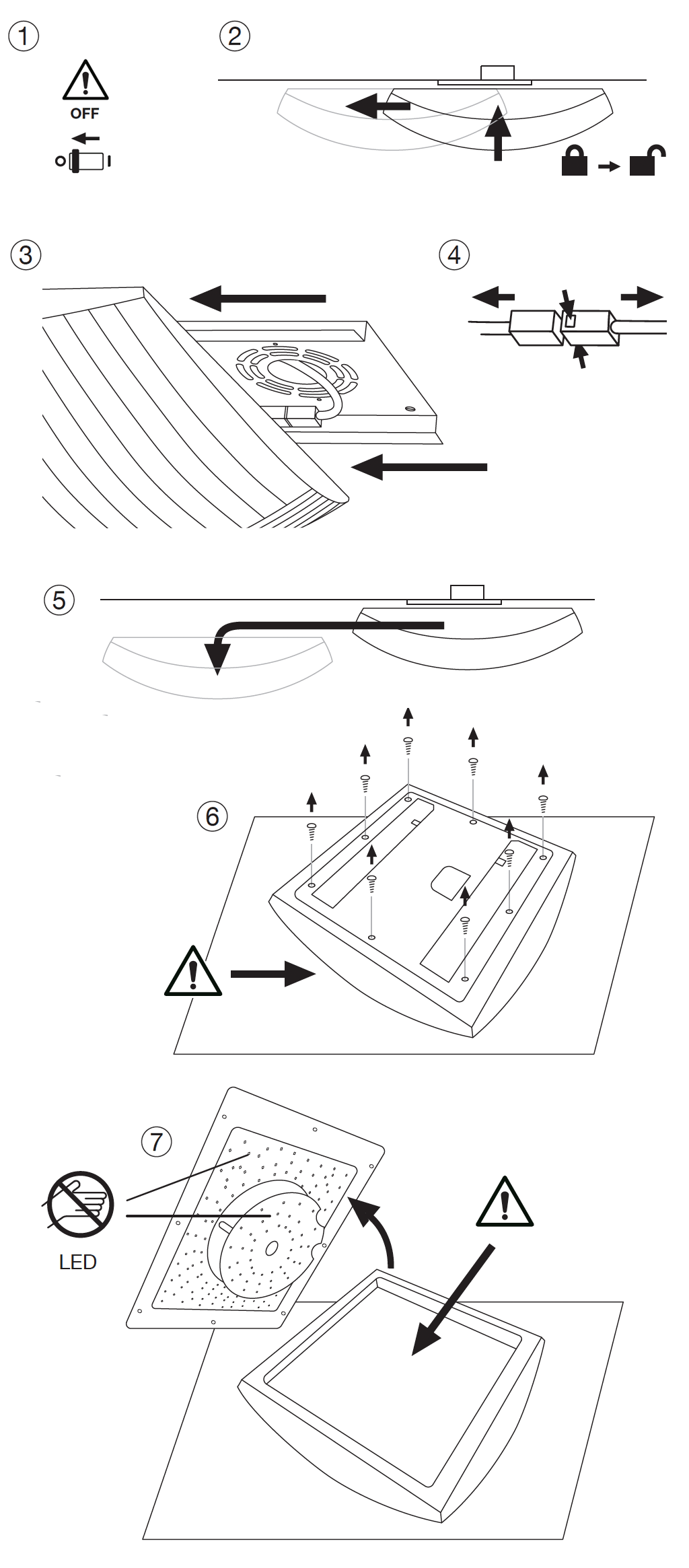

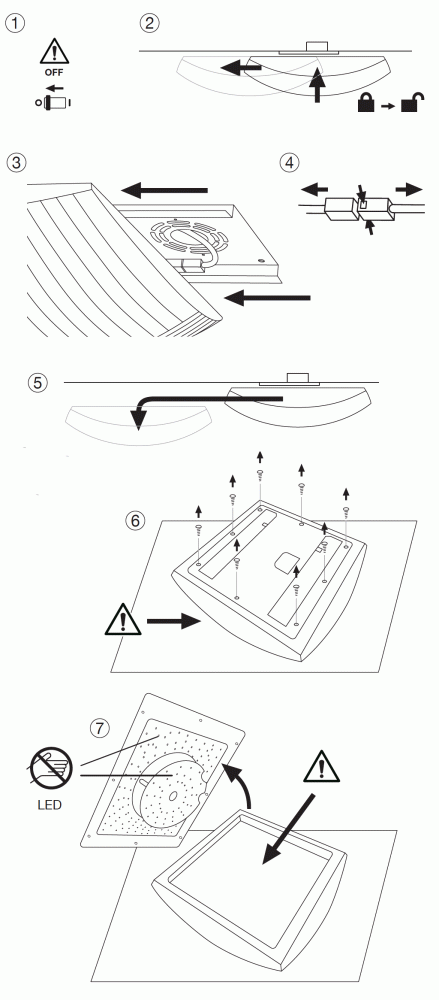

Cleaning instructions

Step 1Switch off the electricity.
Steps 2Lift the lamp and unlock it to slide. NOTE: The lamp should still be supported by the rail until the step 4.
Step 3Slide the lamp untilthe connector becomes accessible.
Step 4Disconnect the connector.
Step 5Slide the lamp and remove from the rail.
Step 6Remove the screws. NOTE: Protect the acrylic glass and wooden part with soft material.
Step 7Lift up the cover with LED lights and remove dust. Be careful not to scratch.

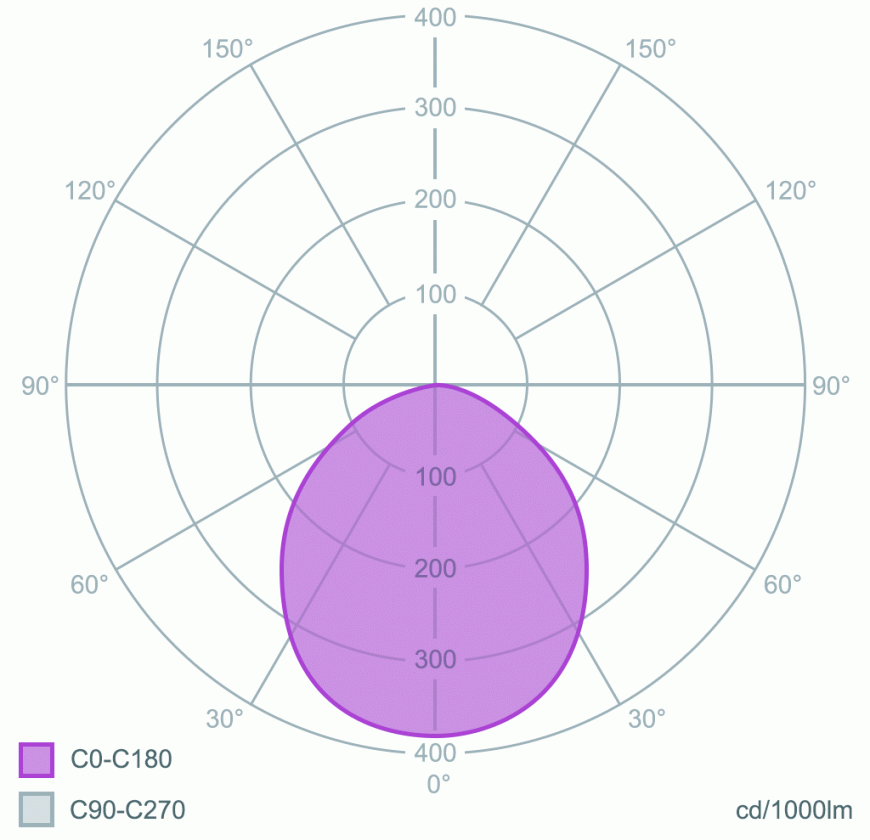

Light distribution

Light distribution curve of Kuulto Small 9101. Polar curve of the angular luminous intensity distribution at two perpendicular C planes and at C plane with maximum luminous intensity.

Download LDT

Mix and match lamps as you like!

See how our lamps look together in different arrangements and create your own eye-catching installation tailored to your interior.

Mix and match lamps
