Wooden Owalo 7010 floor lamp by Secto Design

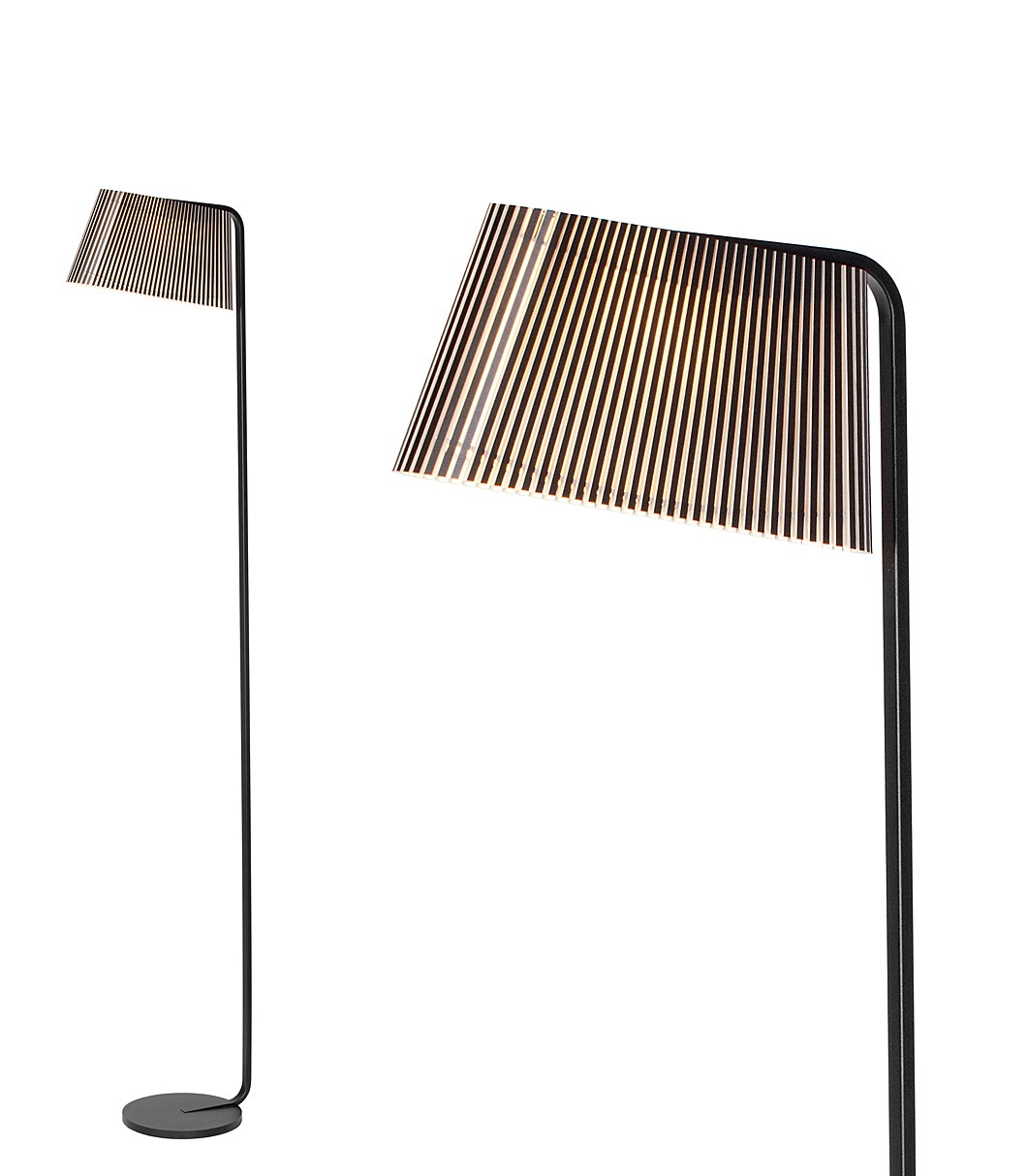

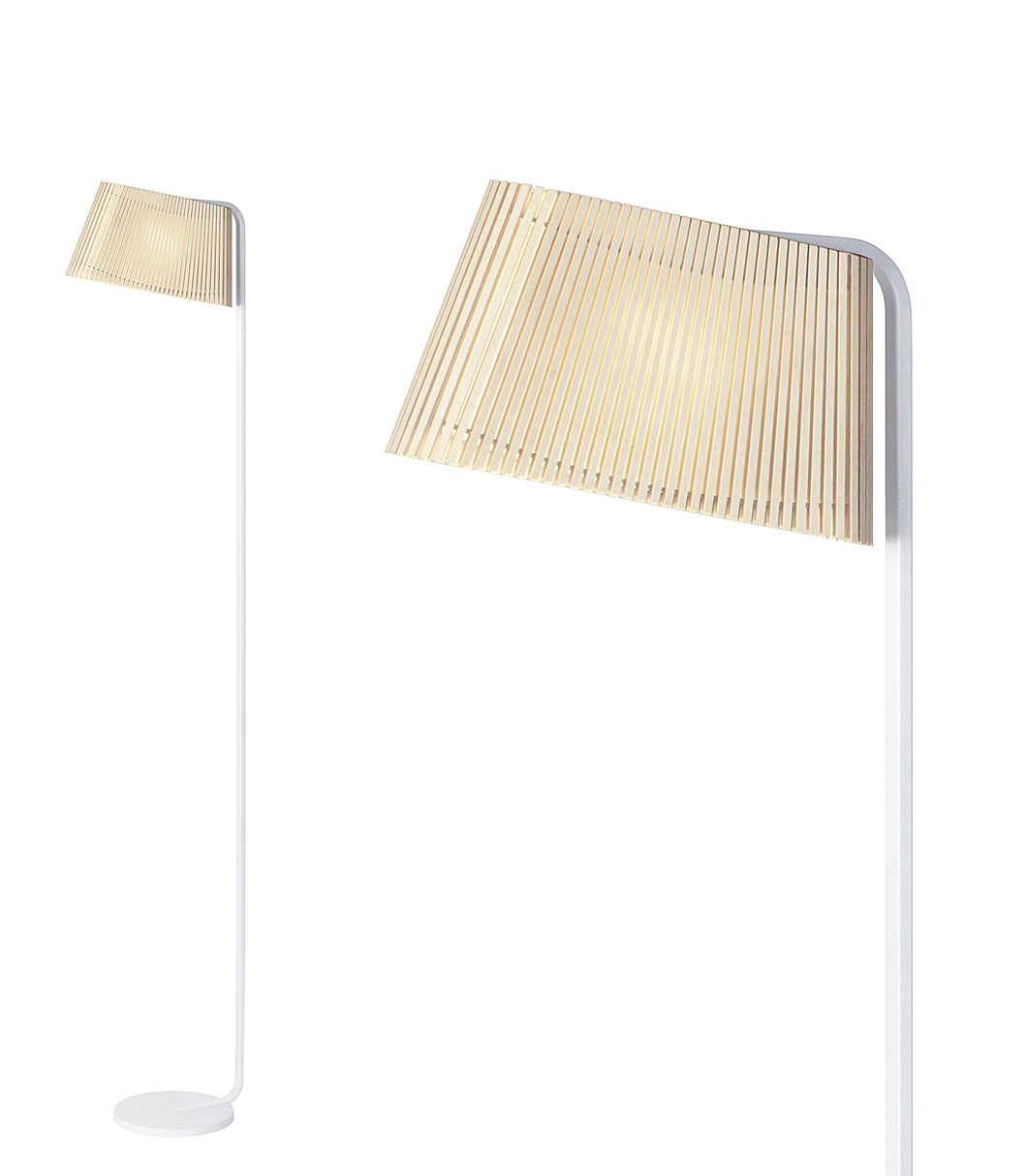

Owalo 7010 floor lamp

Handmade of PEFC-certified form pressed birch in Finland by highly skilled craftsmen. Uses the latest LED-technology.

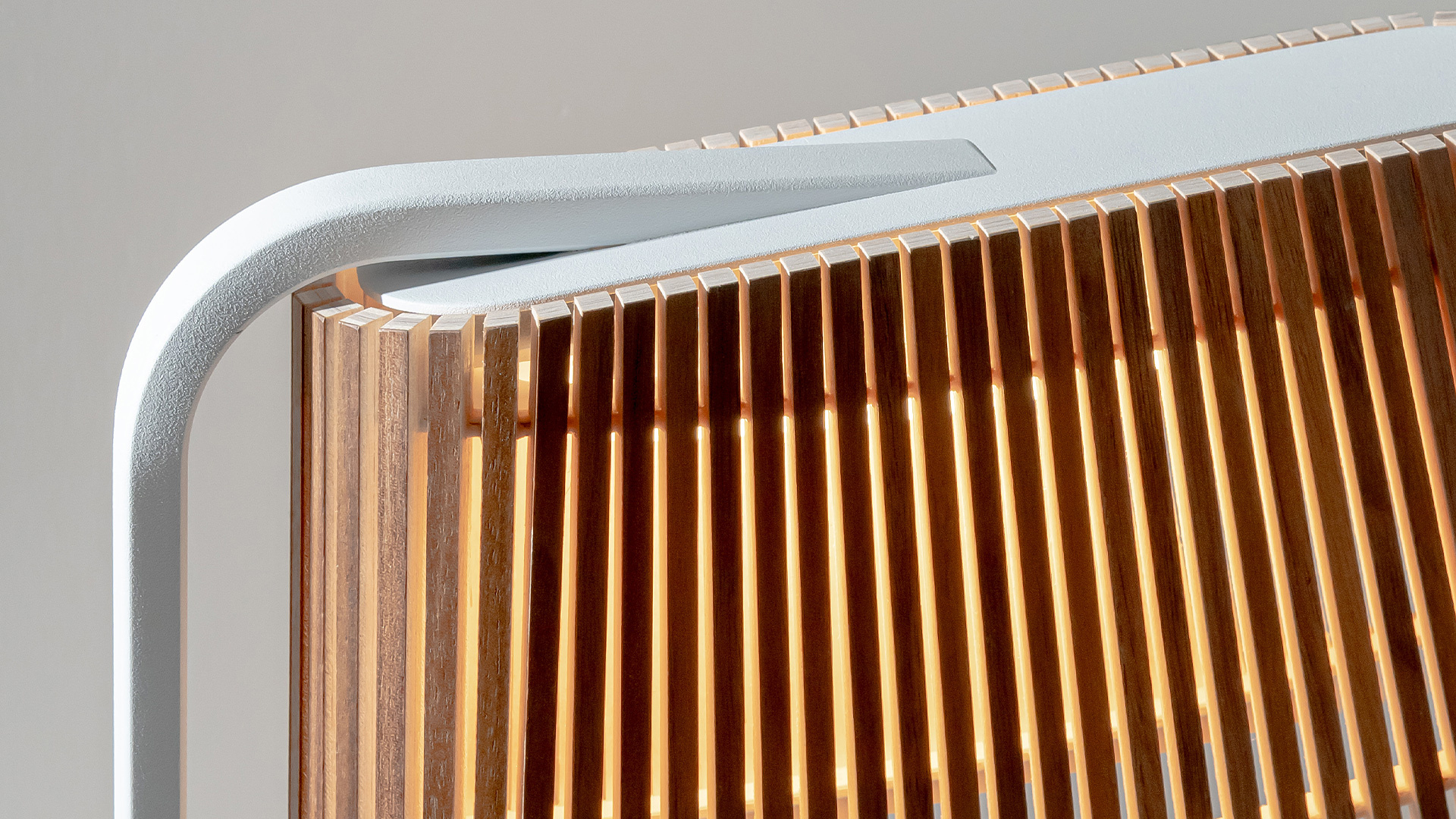

Material	Form pressed birch slats, fine textured powder coated steel stand, acrylic diffuser

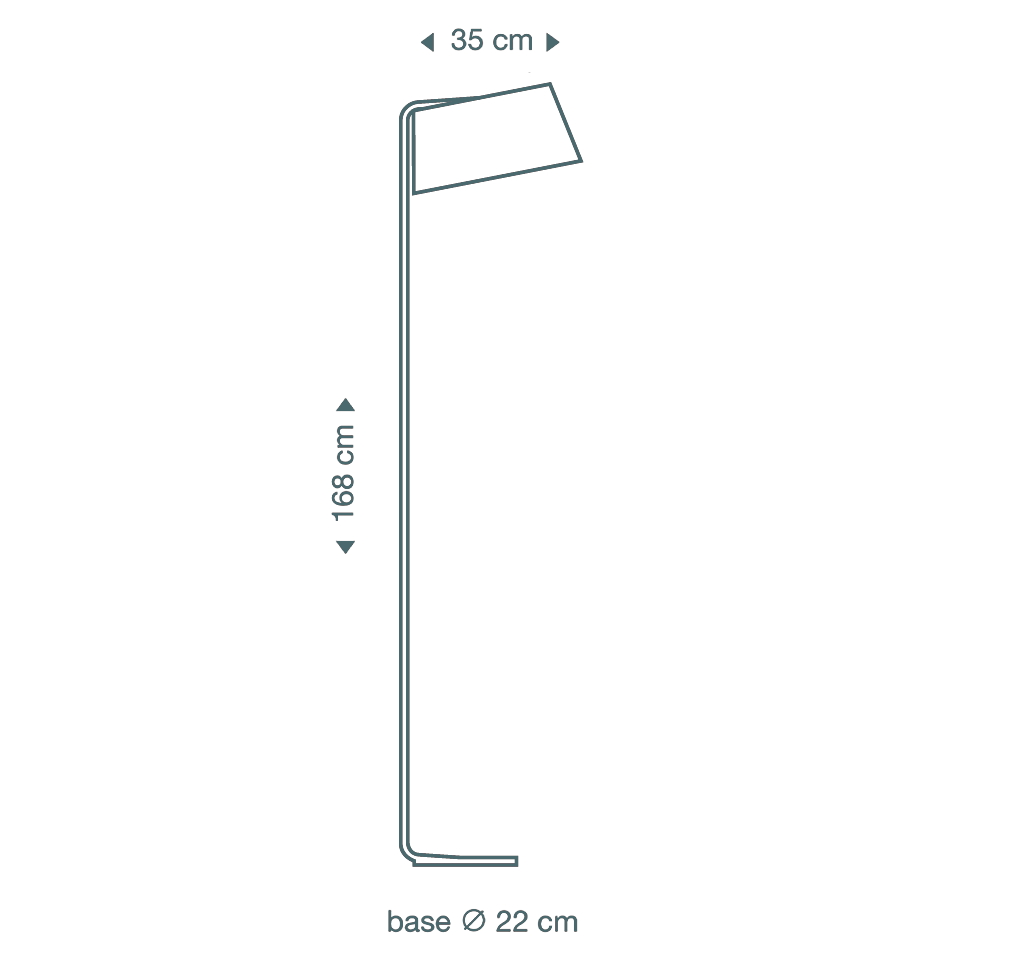

Dimensions	Height 168 cm Depth 35 cm Width 7 cm Base Ø 22 cm Weight 8,2 kg Package 174 × 42 × 25 cm, 11,3 kg
Voltage	100-240V 50/60Hz

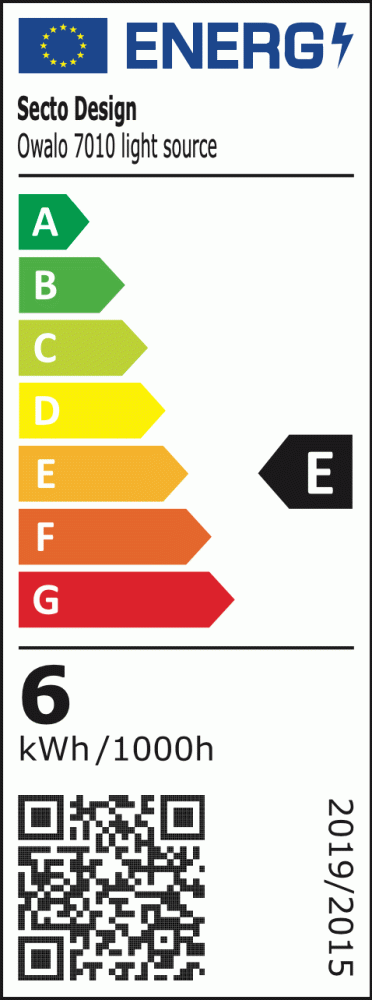

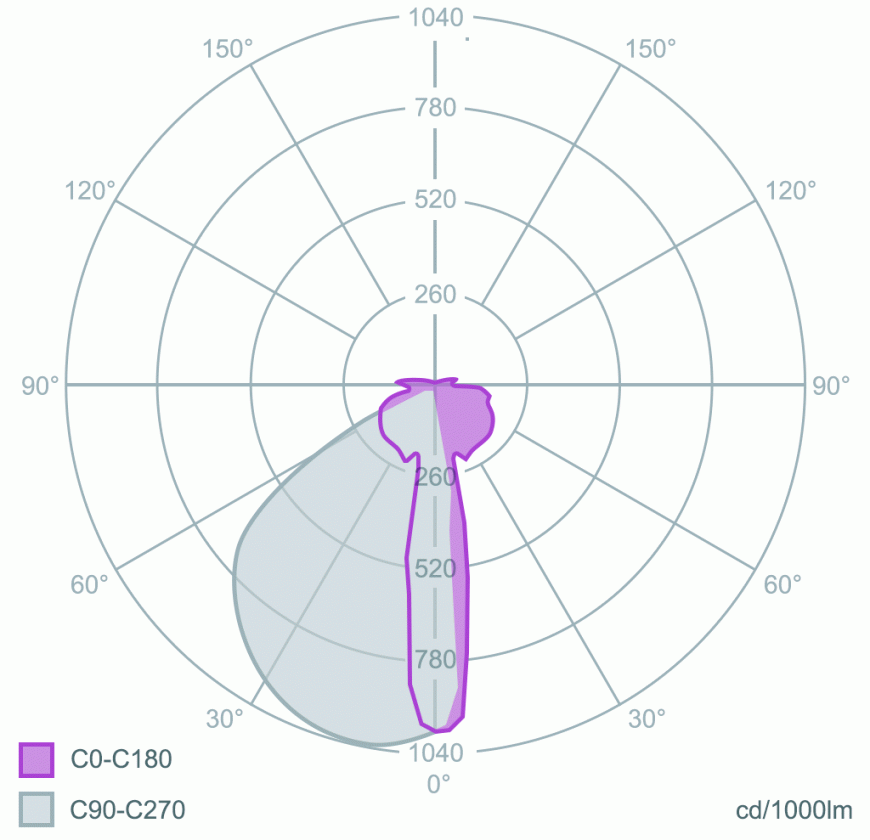

Light source	A built-in LED, 10 W, 2850 K, 770 lm, CRI 85. This product contains a light source of energy efficiency class E.
Dimming	Non-dimmable
Cable	300 cm, plastic cable, switch and transformer on the cable
DALI	Attachable to DALI systems with a separate DALI-compatible trailing edge (phase cut off) type dimmer, but not dimmable. Due to great variation in DALI systems, Secto Design does not supply DALI-dimmers. Please contact your local electrician.
Classification	Ingress Protection IP20, IEC Protection Class II, CE marking
Maintenance	Wipe dust regularly. To remove fresh stains wipe with a slightly damp cloth.

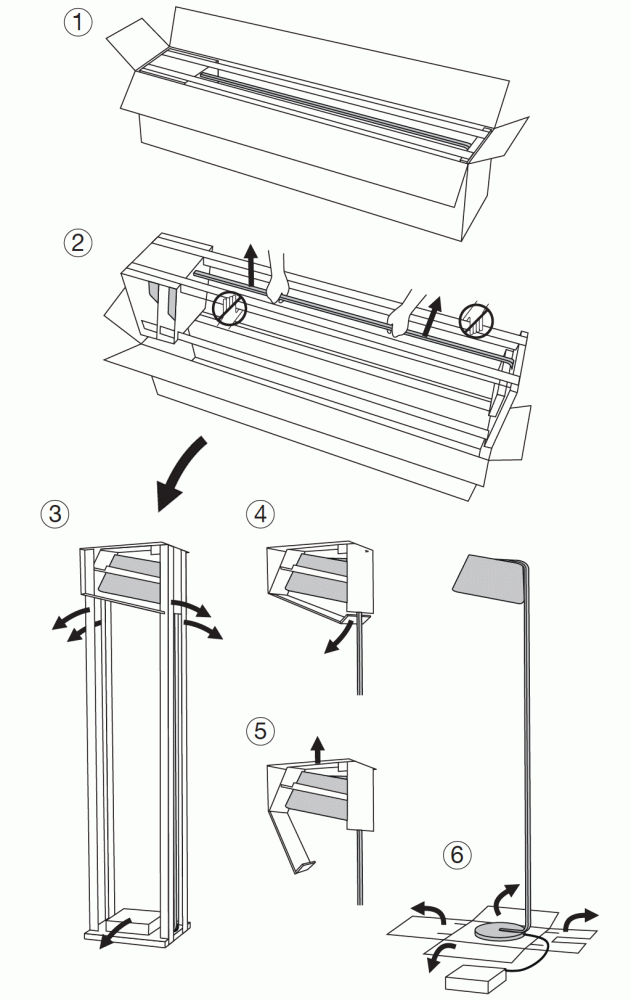

Opening instructions

Step 1

Open the top cover.

Step 2

Lift up the lamp by holding it from the lamp stand. Warning: Don't lift the lamp from the supporting structure.

Step 3

Remove the supporting structures.

Step 4

Unlock the top supporting element.

Step 5

Lift up and remove the top supporting element.

Step 6

Unfold and remove the bottom supporting structures.

WARNING: The cable or light source can only be replaced by the manufacturer or an authorized service agent.
