The ADA-compliant Secto Small wall lamp is designed for public spaces, providing clear and comfortable wall illumination. Suitable for individual use or continuous installation in rows. Designed by architect Seppo Koho, launched in 2026.
Colour:
Get it here!

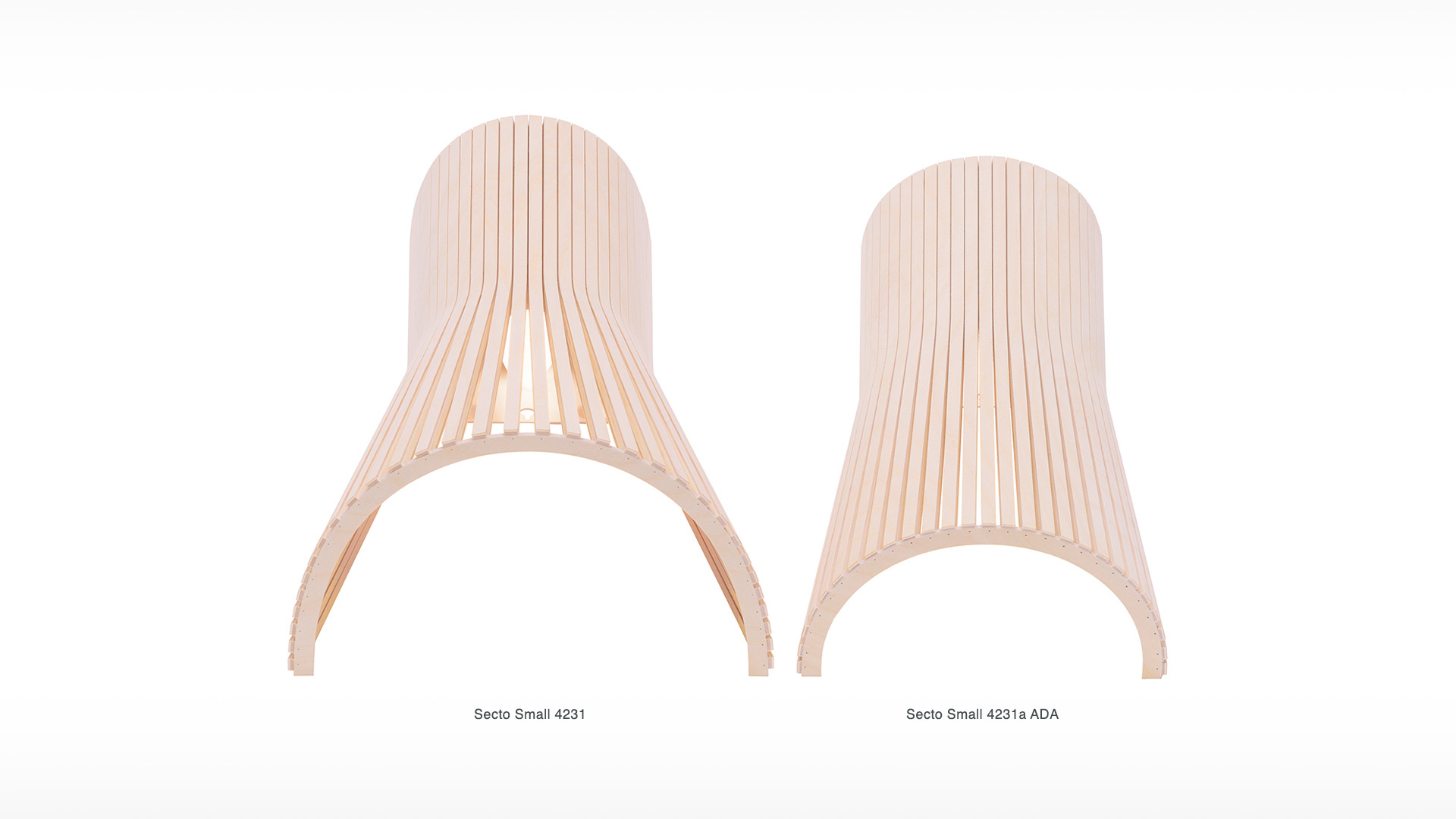

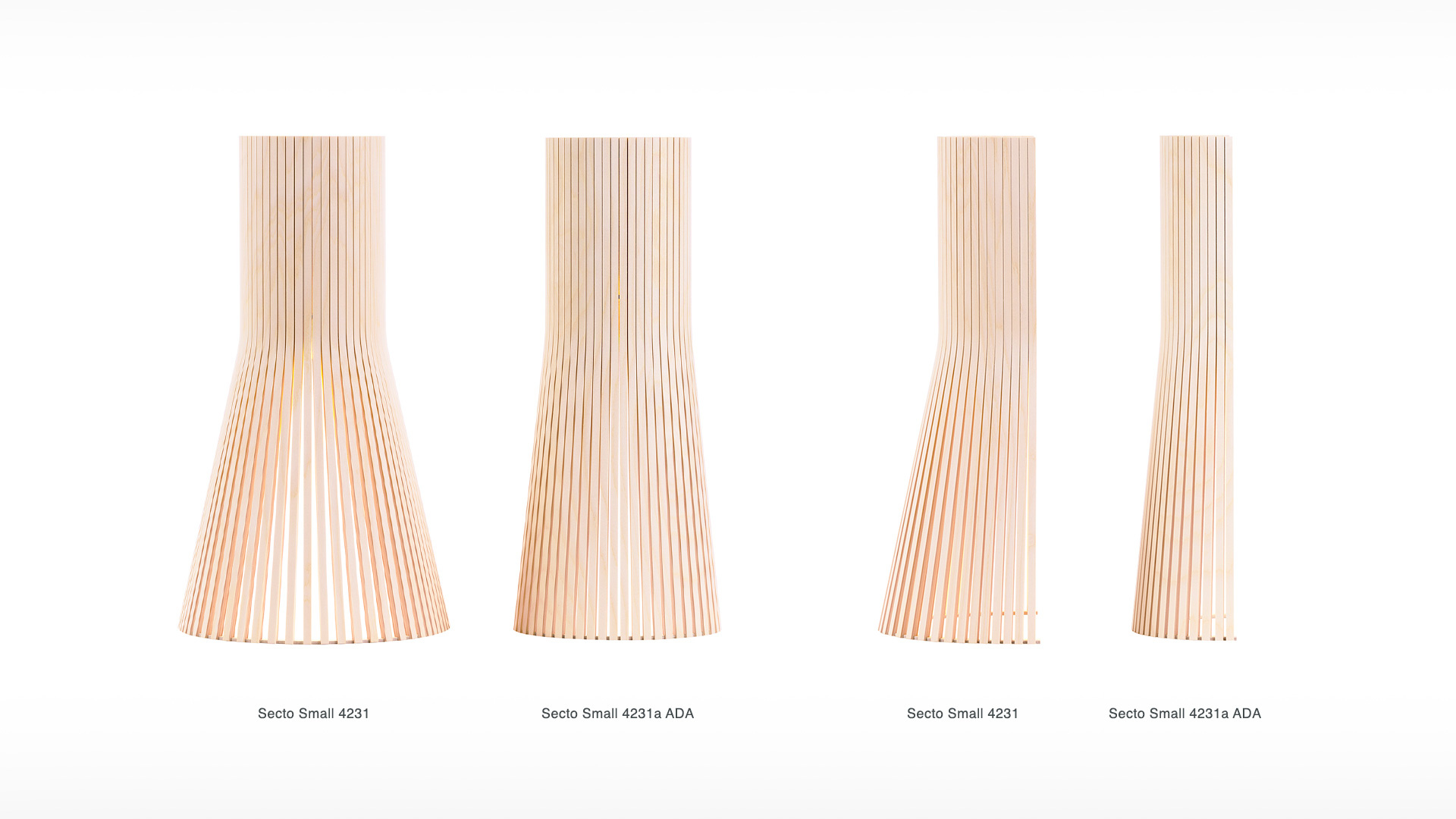

Showing the difference between Secto Small 4231 and Secto Small 4231a ADA.
Showing the difference between Secto Small 4231 and Secto Small 4231a ADA.
More images of the Secto Small 4231a ADA wall lamp here
Handmade from PEFC-certified form-pressed birch in Finland by highly skilled craftspeople.

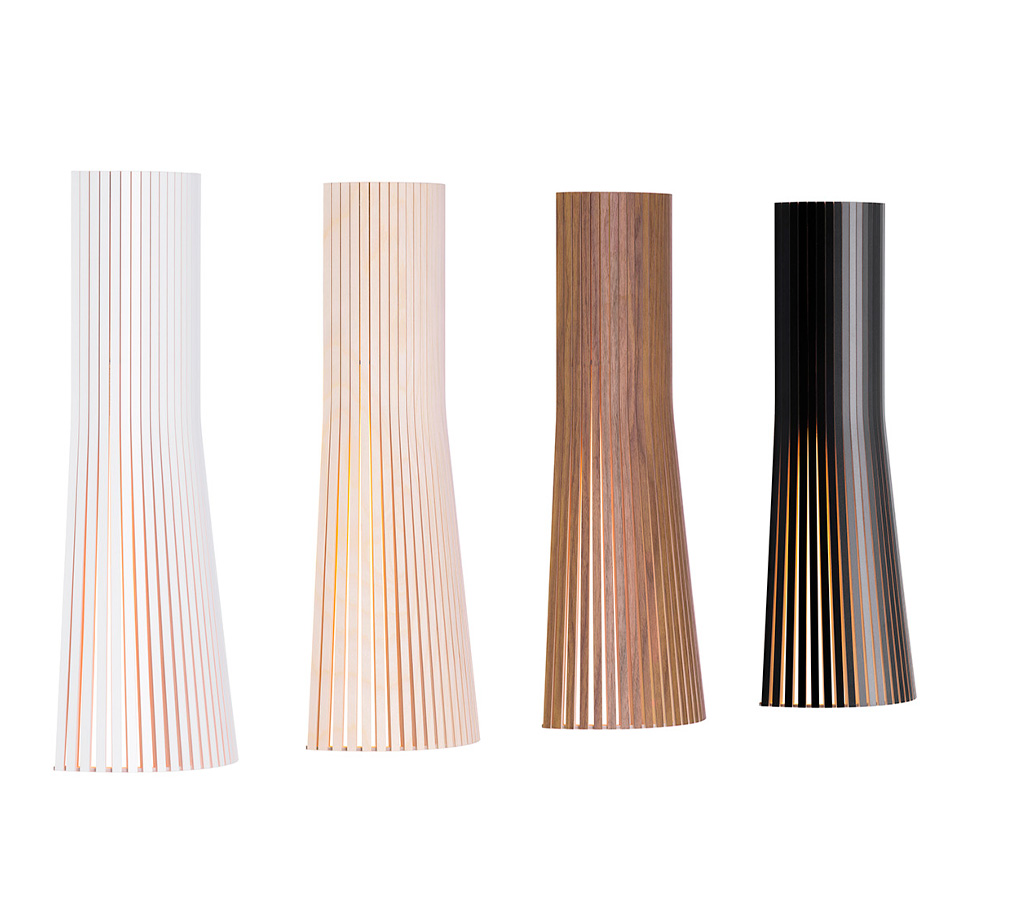

| Shade | Back plate | Cable |

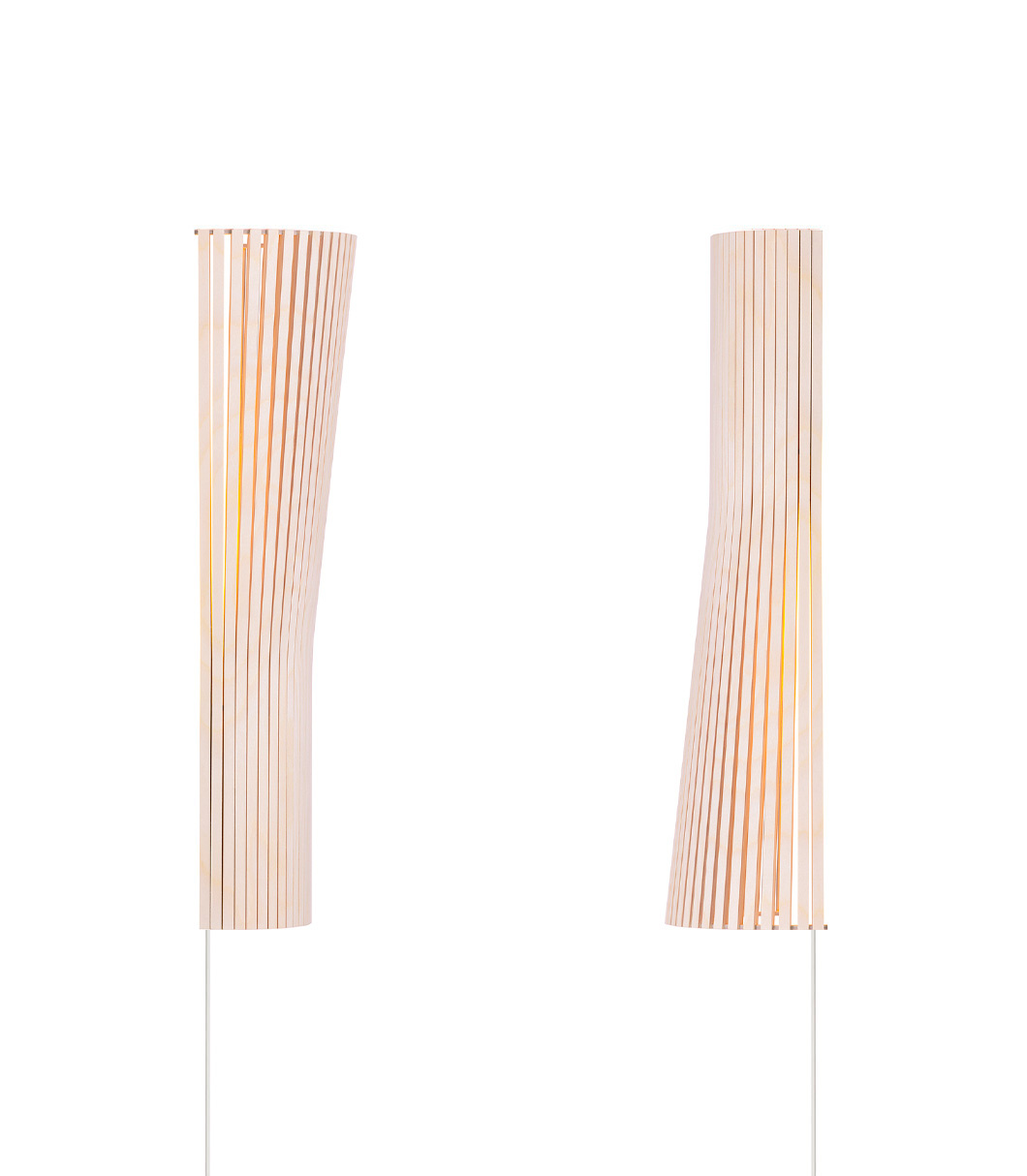

| Natural birch | White | White |

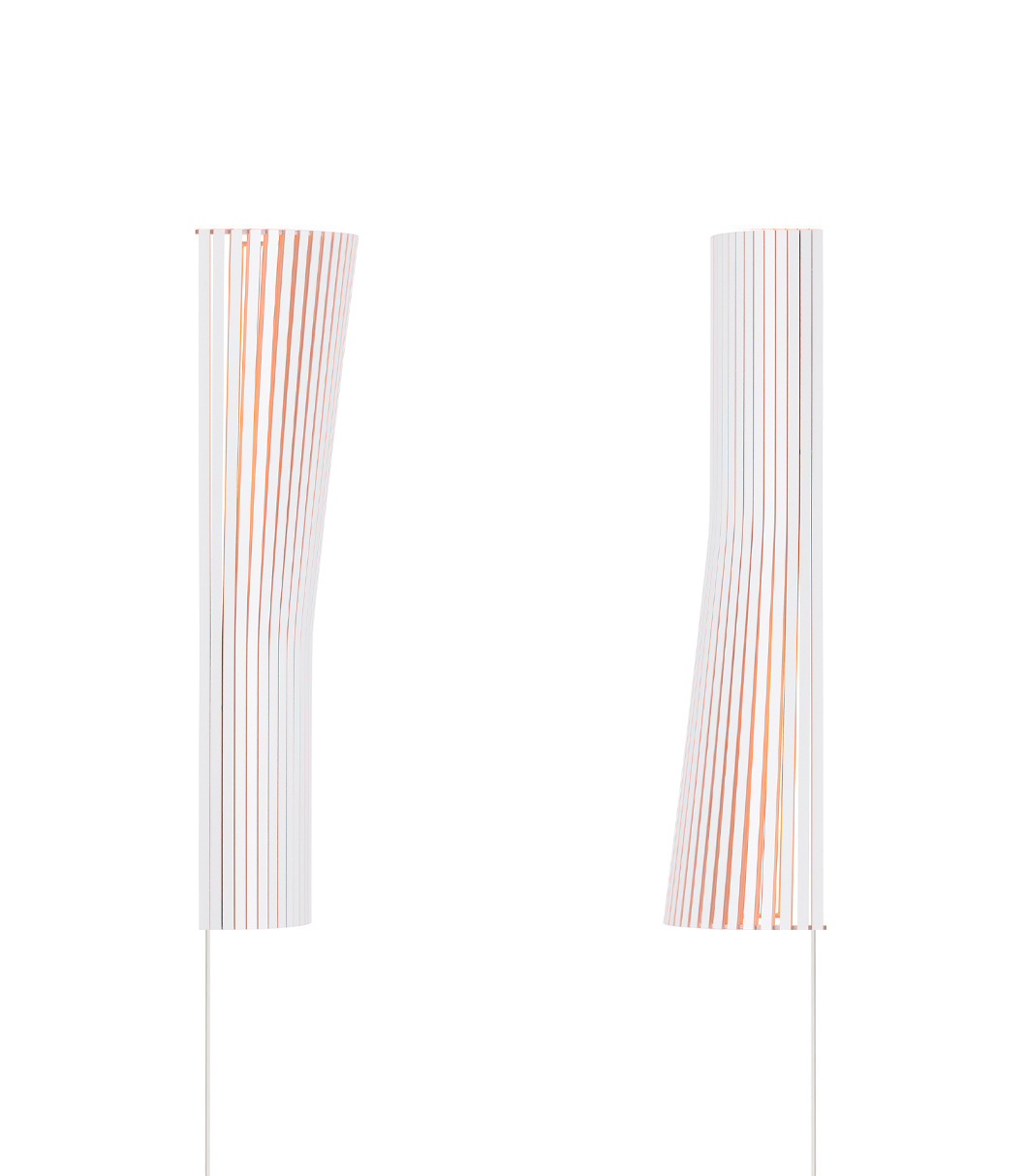

| White laminated | White | White |

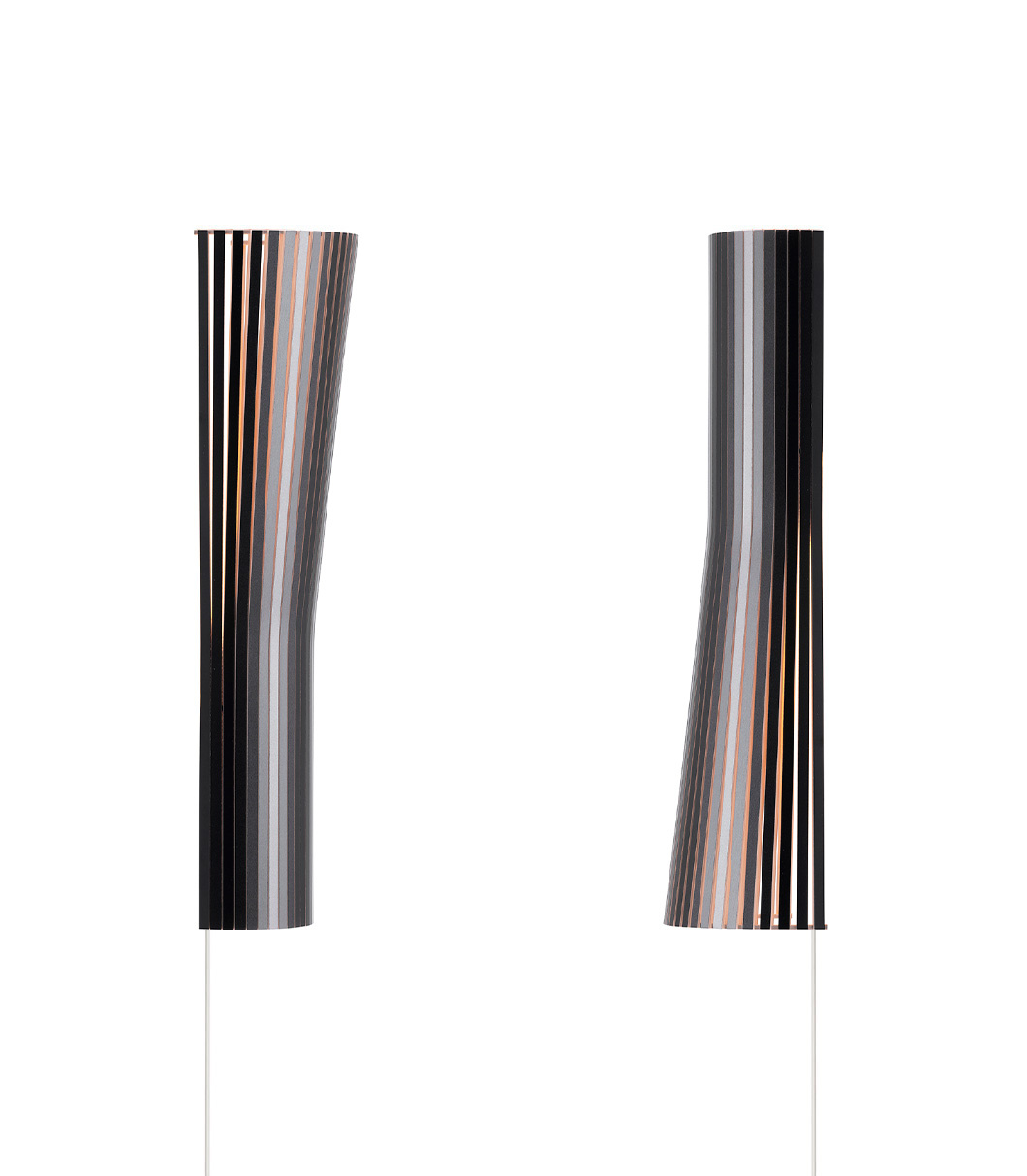

| Black laminated | White | White |

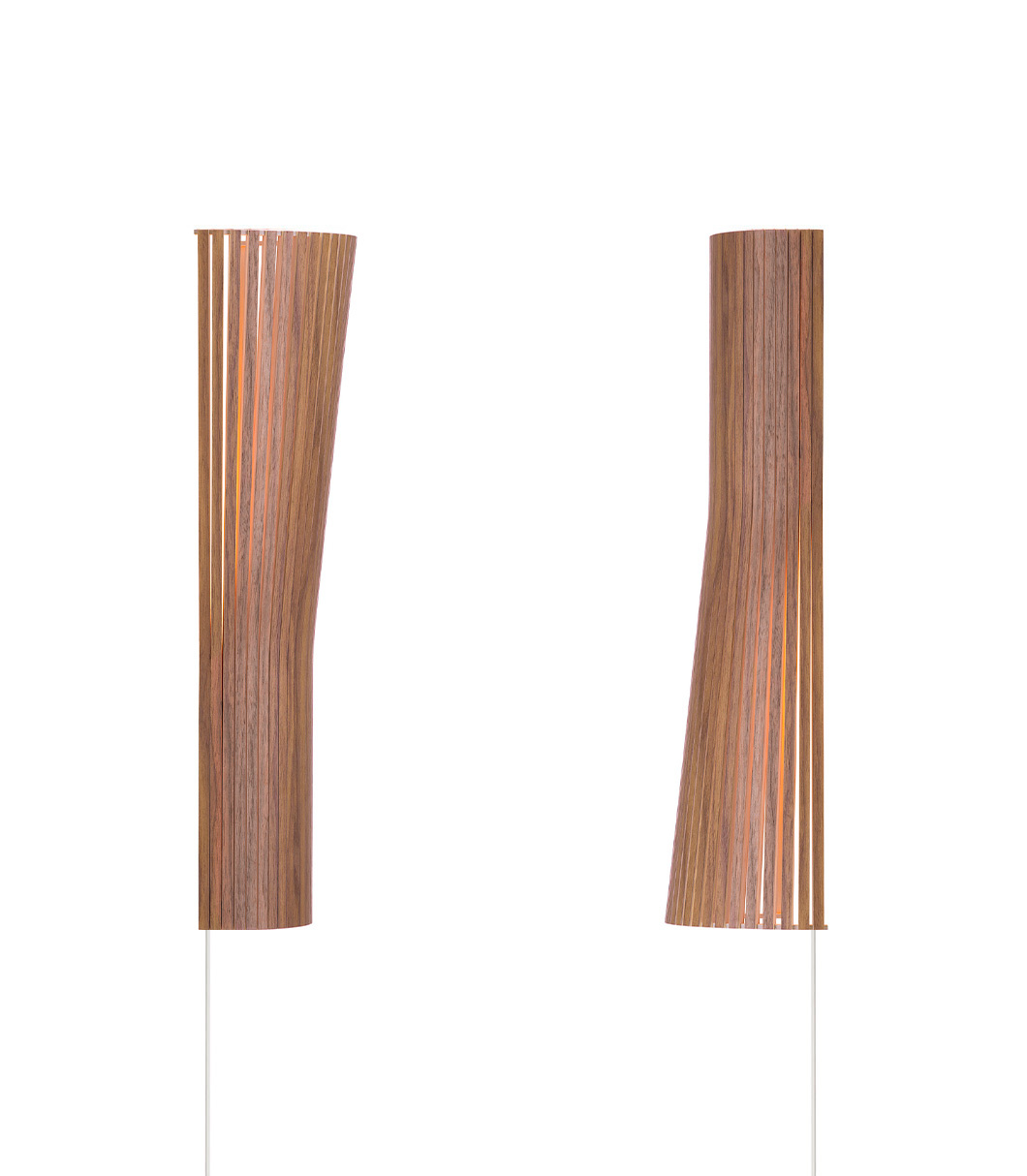

| Walnut veneer | White | White |
| Material | Form-pressed birch slats, powder coated steel back plate |
| Dimensions | Height 17.7 in Depth 2.6–3.9 in Width 5.1–7.7 in |
| Voltage | 120V 60Hz |
| Light source | E12 base, LED max 20 W. Bulbs are not included. The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating. |
| Cable | 7.9 ft, textile cable, switch on the cable. Also available with direct wall mounting. |
| Classification | Ingress Protection IP20, IEC Protection Class II |
| Installation | Separate instructions on the website. |
| Maintenance | Wipe dust regularly. To remove fresh stains wipe with a slightly moist cloth. |
NOTE: This wall light can be placed facing either upwards or downwards.
WARNING: To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm's reach.
The back plate of the Secto 4230 / Secto Small 4231 / Secto Small 4231a wall lamp is made of powder painted steel. The lamp base is attached to the back plate. The shade has wooden rails for the plate. The plate is fastened to the shade with a top screw.
| Step 1 | Connect by using the screw nuts for each cable: live, neutral and earth. |
| Step 2 | Screw the metal plate to the junction box in the wall. If you wish to hang the shade with an upwards opening, simply fasten the plate in the other direction. |
| Step 3 | Slide the wooden shade through the rails at the back of the shade and onto the wall plate. Tighten with the included screw. |
| Height | 6.1 in |
| Width | 4.1 in |
The wall lamp can be installed with the cone part upwards or downwards. When the cone part is downwards the cable runs down between the plate and the wall.
| Pic 1 | The wall mount version (by special order) can be mounted directly to the cables coming out of the wall socket by an electrician. |
| Pic 2 | The standard version comes with a cable, a switch and a plug. |
The back plate is screwed (screws not incl.) to the wall. The wooden shade is then slid onto the plate along the wooden rails which are on the long sides of the shade. Alternatively the wall lamp can be hung to a wall hook (not incl.) after the plate is attached to the shade.
| Hole 1 | To raise the lamp of the wall and a possible means to secure the fixture to the wall. |
| Hole 2 | For securing the lamp to a wall socket. |
| Hole 3 | For hook suspension. |
| Hole 4 | For treading the wall mount version's cables through the plate. Screws and hooks for securing the fixture are not included. |
Please note that the measurements are approximates as all the shades are unique.
Installing upwards: top edge to the hook suspension hole (3.)
